Summary of Contents for Panio CH8810K
- Page 1 PANIO User Manual 8 in 8 out 4K 30Hz HDMI Matrix switcher & Video wall CH8810K V2023.08g １...
-
Page 2: Table Of Contents
PANIO User Manual Contents 1. Product Introduction ..................错误！未定义书签。 2. Features ...................... 错误！未定义书签。 3. Specification ....................错误！未定义书签。 4. Packing ............................3 5. Panels controller Introduction ..............错误！未定义书签。 6. Remote control ..........................4 7. Matrix Switcher control ................错误！未定义书签。 Remote Control ..................错误！未定义书签。 WEB GUI browser Control ...................... ５... -
Page 3: Product Introduction
PANIO User Manual 1、Product Introduction The CH8810K is a new fixed HDMI matrix switcher series with the seamless switch, Video Wall function, EDID management, audio breakouts and the resolution can up to 4K30Hz with scaling funtion and all ports are HDCP compliant. -
Page 4: Panels Controller Introduction

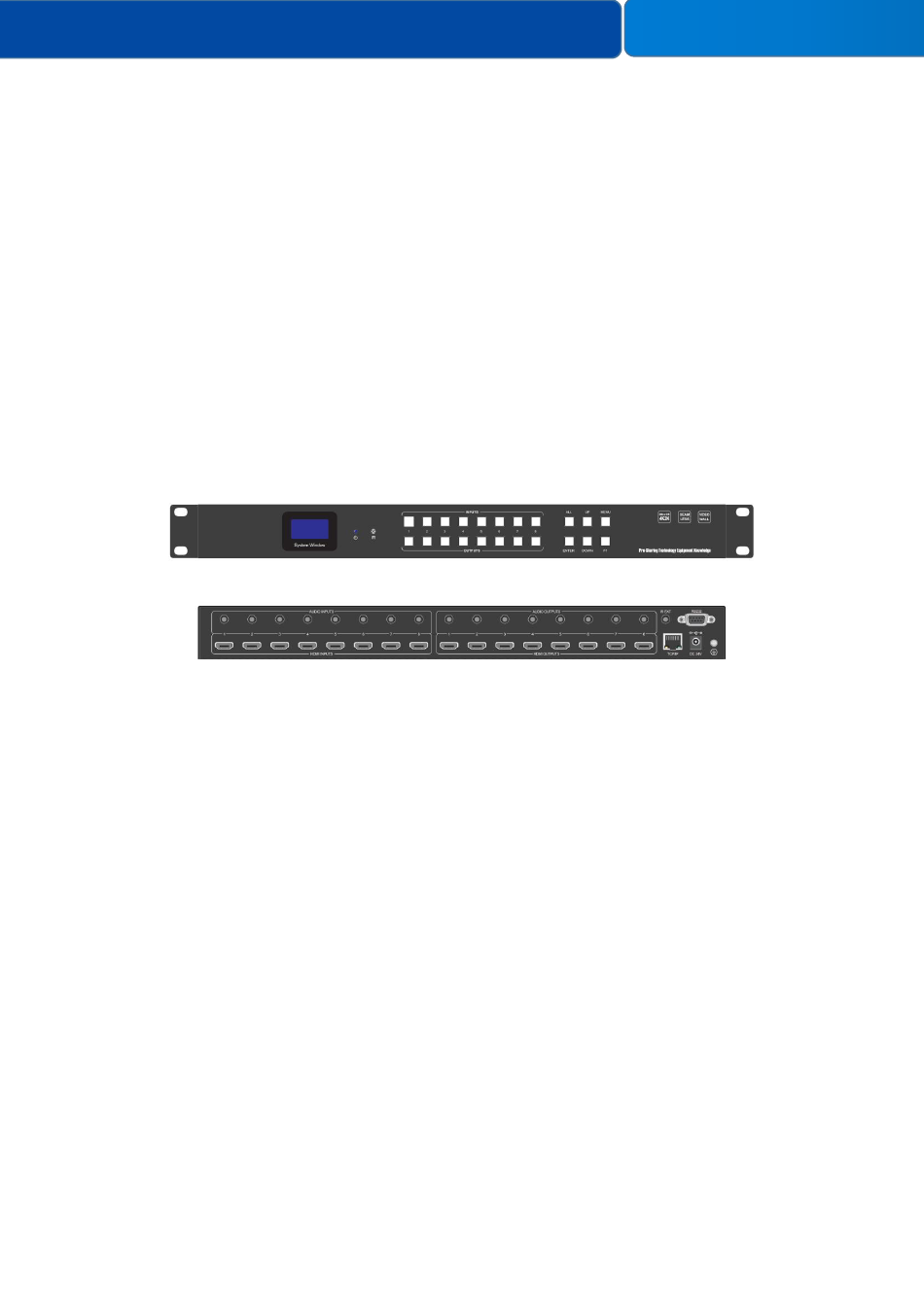

PANIO User Manual 5、Panels controller Introduction Front panel A: LCD screen for the switching, EDID, IP etc information display. B: Power indicator C: IR for the IR remote control D: Inputs and outputs buttons E: Control buttons Back panel A: HDMI input ports B: 3.5mm audio embedded ports C: HDMI output ports... -
Page 5: Web Gui Browser Control
PANIO User Manual Standby: for the matrix to standby or back to working status Input: 1~8/1~4 HDMI input buttons Clear: Clear all the selected channels Enter: Press to confirm the operations All: to select all the output channels EDID: EDID → F1/F2(select the built in EDID or copy/learn from the outputs)EDID→... - Page 6 PANIO User Manual After login, it will turn to “Video Matrix” interface, users can do the sources switching, scenes recall and save. On the input and output buttons, users also can view the active ports by the button color, 3 steps for the switching Input button rename: right click on the input button, it will pop-up the window for users to change the names, and option for the Display OSD function.
- Page 7 PANIO User Manual For the output buttons and scenes renaming will the same way to use the right click on the button, it will also pop-up the window: Scenes Save and Recall: It will take 2 steps to Save or Recall the scenes, select the scene number first, and then click “Save”...
- Page 8 PANIO User Manual Video Wall box edge in yellow color means that outputs to this VW are all confirmed(use the mouse right click to confirm after drag the outputs) EDID Management: ８...
- Page 9 PANIO User Manual Output Settings: Audio Settings: users can select audio either from the 3.5mm or from the HDMI Disable means: disable the HDMI sound, but use the 3.5mm embedded audio Enable means to use the HDMI sound For the Audio out: ON means to turn on the HDMI sound, but use the 3.5mm de-embedded still have the sound...
- Page 10 PANIO User Manual Device is for users to set up the IP address, RS232, or lock the front panel push-button, language or factory default settings: User tap is user the users to change the password, model number and the WEB GUI logo: Upgrade page will need to enter the IP/upload in the browser: １０...
- Page 11 PANIO User Manual TCP/IP/RS232 control details and commands: The default IP IS 192.168.1.80, Port number: 4001 The default RS232 baud rate is 115200, 8, 1, none Function Command Format Function Remark AT+HTO2A=MX88,IN$ One switch to all output +RSPHTO2A=MX88,IN$ e.g. AT+HTO2A=MX88,1$...
- Page 12 PANIO User Manual AT+HTEDIDINT=MX88,INTn,In$ In: input chnnel number(1-8) Switch one Internal EDID to +RSPHTEDIDINT=MX88,In,INTn$ INTn: one certain internal EDID number. certain input's EDID (2-5) AT+HTEDIDINFOSET=MX88,CHn,ResID,ColorSpace,Colo rDepth,AudioCh$ CHn: the input Card's channel number; ResIDn: Resolution ID, ReslDn(1--3);1:720P@60,2:1080P@60,3:4k@30 Set one input card's certain...
