HEAVY DUTY GAS BROILERS
CERAMIC BROILERS
MODELS
GHCB40C
GHCB40
GHCB44
GHMCB44
HCB1
HCB2T
HCB2B
SUNGLOW BROILERS
MODELS
IR1
IR2T
IR2B
GHIR44
For additional information on Vulcan-Hart or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
MLS
ML-52212
ML-52211
ML-52213
ML-52214
ML-52202
ML-52203
ML-52208
MLS
ML-52200
ML-52207
ML-52201
ML-52210
CATALOG OF

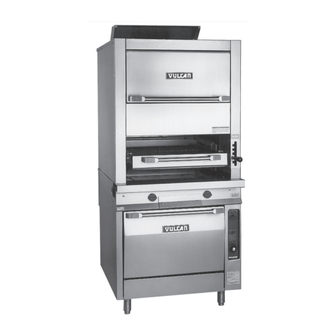

MODEL GHCB40 SHOWN
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (800) 814-2028
FORM 30907 Rev A(12-06)

Advertisement

loading
Need help?

Need help?

Do you have a question about the GHCB40 and is the answer not in the manual?

Questions and answers

Related Manuals for Vulcan-Hart GHCB40

Summary of Contents for Vulcan-Hart GHCB40

  • Page 1 IR2T ML-52207 IR2B ML-52201 GHIR44 ML-52210 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF REPLACEMENT PARTS MODEL GHCB40 SHOWN P.O.
  • Page 2 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - FRONT VIEW IR1 - 2 - PL-40422-1A...
  • Page 3 Grid Handle ... 00-411144-000G2 Burner Shield Cover (Top) ... 00-413383-000G2 Legs (SST) ... 00-408161-00001 Grease Collector Front ... 00-417700-00001 Vulcan Nameplate ... 00-410834-000G2 Deflector Assy ... 00-409033-000G2 Lock Panel ... 00-409030-000G4 Blower Cover Assembly ... 00-411040-000G1 Drip Tray Assembly ...
  • Page 4 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - FRONT VIEW IR2 - 4 - PL-40423-1...
  • Page 5 Burner Shield Cover (Top) ... 00-409840-00006 Legs (SST) ... 00-410834-000G2 Deflector Assembly ... 00-404647-00001 Grid Handle ... 00-417700-00001 Vulcan Nameplate ... 00-411144-000G4 Burner Shield Cover (Bottom) ... 00-409033-000G2 Lock Panel ... 00-409030-000G4 Blower Cover Assembly ... 00-411040-000G1 Drip Tray Assembly ...
  • Page 6 HEAVY DUTY GAS BROILER REPLACEMENT PARTS 22-23 PARTS - FRONT VIEW GHCB40 - 6 - PL-40424-1...
  • Page 7 Hinge Pin (RH on Convection Oven Door) ... 00-404629-00002 Door Bushing ... 00-497126-00001 Control Panel (GHCB40) (Oct. 2004 to Present) ... 00-497126-00002 Control Panel (GHCB40C) (Oct. 2004 to Present) ... (SS) Stainless Steel Photo shows old style grid handle assembly.
  • Page 8 HEAVY DUTY GAS BROILER REPLACEMENT PARTS FRONT VIEW IR44 PARTS - FRONT VIEW GHIR44 - 8 - 9-10 PL-40425-1...
  • Page 9 00-409840-00005 Adjustable Leg (Flanged Foot) ... 00-409840-00006 Adjustable Leg (SS) (Bullet Foot) ... 00-409653-00006 Manifold Cover Assembly (SS) ... 00-417700-00001 Vulcan Nameplate ... 00-408246-00001 Grid Handle ... 00-405488-000G2 Augratin Oven Door Assembly ... 00-404549-00001 Right Oven Door Post ... 00-404549-00002 Left Oven Door Post ...
  • Page 10 HEAVY DUTY GAS BROILER REPLACEMENT PARTS 9-10 PARTS - FRONT VIEW GHCB44 - 10 - PL-40426-1...
  • Page 11 ILLUS. PL-40426-1 PART NO. 00-402957-00002 Burner Valve Knob ... 00-408246-00001 Grid Handle ... 00-407785-00002 Grid Arm Handle (Old style shown) ... 00-413609-00002 Grid Arm Cover/Index Plate (SS) ... 00-404549-00005 Right Grid Post ... 00-404549-00006 Left Grid Post ... 00-412945-000G1 Door Panel Assembly, Left ... 00-412945-000G2 Door Panel Assembly, Right ...
  • Page 12 HEAVY DUTY GAS BROILER REPLACEMENT PARTS CB - 2L FRONT VIEW HCB2 PARTS - FRONT VIEW HCB2 - 12 - 9-10 PL-40427-1...
  • Page 13 00-409840-00006 Adj. Legs (SS) ... 4 00-411040-000G1 Drip Tray Assembly ... 1 ... 1 00-417700-00001 Vulcan Nameplate ... 1 ... 1 00-408132-000G4 Burner Shield Cover (Bottom) ... 1 00-414639-00002 I.D. Knob Tab “L” (Old style shown) ... 1 ... 2 00-414639-00001 I.D.
  • Page 14 HEAVY DUTY GAS BROILER REPLACEMENT PARTS ILLUS. PART NO. PL-40428-1 00-408987-000G1 Body Back (Cabinet) ... 1 ... 1 ... 00-408987-000G3 Body Back (Cabinet) ... 1 ... 00-408214-000G1 Body Back (Cabinet) ... 1 FP-085-88 Inlet Pipe FP-085-97 Inlet Pipe 00-405016-00001 Elec. Supply Cord ... 1 ... 1 ... 1 ... 00-408647-00001 Elec.
  • Page 15 15-16 PARTS - FRONT VIEW FRAME REMOVED IR1 & IR2 ILLUS. PART NO. PL-40429-1 00-415095-000G1 Front Burner Shield Assembly ... 1 ... 2 FP-012-49 Fitting 00-414861-00001 Burner Sub-Manifold (Prior to July 2004) ... 2 ... 4 00-415133-00001 Right Hand Burner Tube ... 1 ... 2 00-415134-00001 Left Hand Burner Tube ...
  • Page 16 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - FRONT VIEW FRAME REMOVED HCB2 ILLUS. PART NO. PL-40430-1 00-010901-00042 Pilot Burner Orifice (NAT.) ... 4 ... 8 00-010901-00053 Pilot Burner Orifice (PROPANE) ... 2 ... 4 00-405643-0000F Elbow Nozzle ... AR ... AR 00-411463-000G1 Pilot Manifold Assembly ...
  • Page 17 Brick Support (Right Side) ... 1 ... 2 ... 1 ... 1 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - GRID ASSEMBLY HCB2 DESCRIPTION " x 1 " ... 3 ... 6 ... 3 ... 3 - 17 - PL-40431-1 QTY. HCB1 HCB2 GHCB40 GHCB44...
  • Page 18 00-405643-0000F Elbow Nozzle (Ceramic Burner) ... 00-411469-00002 Pilot Lighter Tube (Ceramic Burner) ... 00-408485-00080 Nozzle (Nat. Gas) ... 00-408485-00010 Nozzle (LP or MFG Gas) ... (SS) Stainless Steel PARTS - UPPER MANIFOLD ASSEMBLY GHCB40 DESCRIPTION - 18 - PL-40432-1 QTY.
  • Page 19 PARTS - GHIR44 WITH MANIFOLD COVER DROPPED ILLUS. PL-40433-1 PART NO. 00-413500-00E98 Drop Pipe 00-408422-000G1 Sub-Manifold ... 00-408119-0001L Valve HI-MED-LO (PROPANE & BUTANE) ... 00-408119-0001N Valve HI-MED-LO (NAT.) ... FP-013-22 Elbow HEAVY DUTY GAS BROILER REPLACEMENT PARTS DESCRIPTION " x 12 "...
  • Page 20 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - BURNER TUBING ASSEMBLY LT. & RT. GHIR44 ILLUS. PL-40434-1 PART NO. 00-407785-00002 Grid Handle ... 00-414863-00001 Burner Tubing ... FP-077-36 Fitting 00-414749-00001 Lt. Hd. Burner Tubing ... 00-414866-00001 Rt. Hd. Burner Tubing ... DESCRIPTION CC ...
  • Page 21 ILLUS. PL-40435-1 PART NO. 00-405643-0000F Elbow Pilot Nozzle ... 00-010901-00044 Orifice Spud (NAT.) ... 00-010901-00055 Orifice Spud (PROPANE) ... 00-010901-00056 Orifice Spud (BUTANE) ... 00-414860-00001 Pilot Manifold Assembly ... 00-426505-00030 Pilot Tube - Adj. Valve to 00-497022-00001 Burner Sub Assembly ... 00-414753-000G1 Front Burner Shield Assembly ...
  • Page 22 HEAVY DUTY GAS BROILER REPLACEMENT PARTS ILLUS. PL-40436-1 PART NO. 00-401847-00001 Handle ... 00-405499-00002 Burner Box Cover ... 00-405522-000G1 Augratin Oven Bottom Baffle Assembly ... 00-405489-000G2 Lt. Hd. Side Lining Assembly ... 00-405489-000G1 Rt. Hd. Side Lining Assembly ... 00-404549-00002 Post, Left Hand ...
  • Page 23 ILLUS. PL-40437-1 PART NO. 00-409653-00006 Manifold Cover Assembly (SS) ... 00-407727-00004 Knob HI-MED-LO ... 00-411496-000E4 Signal Light ... 00-417812-00001 Toggle Switch ... HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - CONTROL PANEL GHIR44 DESCRIPTION - 23 - PL-40437-1 QTY.
  • Page 24 Grid Final Assembly ... 1 ... 1 00-411040-000G1 Grid Drip Shield ... 1 ... 1 00-411280-00001 Drip Shield Rod ... 1 ... 1 00-413612-000G1 Lifting Arm Assembly ... 1 ... 1 PARTS - GRID ASSEMBLY GHCB40 & GHCB44 DESCRIPTION - 24 - PL-40438-1 QTY. GHCB40 GHCB44...
  • Page 25 PARTS - AUGRATIN OVEN SECTION GHCB40 & GHCB44 PARTS - AUGRATIN OVEN BAFFLE GHIR44, GHCB44 & GHCB40 ILLUS. PART NO. PL-40439-1 00-405522-000G1 Oven Bottom Baffle Assembly ... 1 ... 1 ... 1 00-405489-000G2 Oven Side Lining Assembly, Lt. Hd..1 ... 1 ... 1 00-405489-000G1 Oven Side Lining Assembly, Rt.
  • Page 26 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - OVEN MANIFOLD & CONTROLS GHCB40 / GHCB40C ILLUS. PL-40440-1A PART NO. 00-404193-00001 Pilot Valve ... 00-407789-00001 Burner Valve ... 00-413091-00001 J Hook ... 00-403956-00001 Bell Crank ... 00-412014-00001 Oven Door Spring ...
  • Page 27 ILLUS. PL-40441-1 PART NO. 00-405124-00005 Oven Bottom Baffle ... 00-405928-00004 Foil Face Insulation ... 00-409787-00001 Oven Bottom Insulation Pan ... HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - OVEN BAFFLE ASSEMBLY GHCB40 DESCRIPTION - 27 - PL-40441-1 QTY.
  • Page 28 Lighting Hole Cover ... 00-405123-000G3 Oven Bottom Assembly ... 00-404074-00002 Oven Rack ... 00-409778-000G2 Oven Side Lining Assem., Lt. Hd..00-409778-000G1 Oven Side Lining Assem., Rt. Hd..PARTS - OVEN SECTION GHCB40 DESCRIPTION - 28 - PL-40442-1A QTY.
  • Page 29 PARTS - PILOT ASSEMBLY IR1, IR2, GHIR44 ILLUS. PART NO. PL-40443-1 00-404738-00003 Pilot Adj. Valve ... 1 ... 2 ... 1 00-414860-00001 Pilot - Sub Manifold ... 1 ... 2 ... 1 00-414748-00001 Pilot Tube FP-012-16 Fitting 00-408485-00079 Pilot Orifice (NAT.) ... 4 ... 8 ... 4 00-408485-00010 Pilot Orifice (PROPANE) ...
  • Page 30 HEAVY DUTY GAS BROILER REPLACEMENT PARTS ILLUS. PL-40444-1 PART NO. FP-012-01 Fitting 00-410610-00008 HI-LO Valve (NAT.) ... 00-410610-00009 HI-LOW Valve (PROPANE & BUTANE) ... FP-079-97 Elbow - Reducing FP-016-02 Elbow - Reducing FP-035-38 Close Nipple FP-085-88 Nipple FP-036-91 Nipple Closed FP-085-61 Union - Male Female 1"...
  • Page 31 PARTS - MANIFOLD ASSEMBLY (BOTTOM) IR1 & IR2 ILLUS. PART NO. PL-40445-1 00-410610-00009 HI-LOW Valve (PROPANE & BUTANE) ... 2 ... 2 00-410610-00008 HI-LOW Valve (NAT.) ... 2 ... 2 00-408199-000G2 Manifold Assembly ... 1 ... 1 FP-085-61 Union 1" Male - Female ... 2 ... 2 FP-019-42 Tee Reducing 1"...
  • Page 32 HEAVY DUTY GAS BROILER REPLACEMENT PARTS ILLUS. PART NO. PL-40446-1A 00-413552-00004 Blower & Motor ... 1 ... 1 00-428578-000G1 Solenoid 00-408279-00020 Regulator (NAT.) ... 1 ... 1 00-408279-00021 Regulator (PROPANE OR BUTANE) ... 1 ... 1 00-409033-000G2 Lock Panel 00-417812-00001 Toggle Switch ...
  • Page 33 ILLUS. PL-40447-1 PART NO. 00-413552-00004 Blower & Motor ... 00-428578-000G1 Solenoid ... 00-408279-00022 Regulator (NAT.) 00-408279-00021 Regulator (PROPANE) [Select for Proper Gas] 00-408279-00012 Regulator (NAT.)1 00-408279-00013 Regulator (PROPANE) 1 FP-013-22 Elbow 00-414755-00001 Pressure Switch (Used on Units Prior to Aug. 2000) ... 00-409696-000G1 Air Disc ...
  • Page 34 HEAVY DUTY GAS BROILER REPLACEMENT PARTS PARTS - BURNER ASSEMBLY IR1, IR2 & GHIR44 ILLUS. PART NO. PL-40448-1 00-414754-00003 Infrared Burner Assembly ... 4 ... 8 ... 4 PL-40448-1 DESCRIPTION - 34 - QTY. GHIR44...
  • Page 35 PARTS - BURNER ASSEMBLY & CERAMICS HCB1 & HCB2 ILLUS. PART NO. PL-40449-1 00-411551-000G1 Burner Assembly ... 4 ... 8 00-404146-00001 Burner Ceramic - Sides ... 8 ... 16 00-404145-00001 Burner Ceramic - Center ... 12 ... 24 00-408726-000G2 Ceramic Set (Contains 8 Sides and 12 Center Bricks) ... 1 ... 2 HEAVY DUTY GAS BROILER REPLACEMENT PARTS DESCRIPTION - 35 -...
  • Page 36 00-426262-00001 Pilot Assy. (Nat. Gas) ... 2 00-426262-00002 Pilot Assy. (LP Gas) ... 2 00-413976-00001 Thermostat Knob ... 2 00-411506-00003 Convection Oven Knob ... 2 RECOMMENDED SPARE PARTS GHCB40 & GHCB40C CERAMIC BROILER DESCRIPTION CONVECTION OVENS - 36 - QTY.
  • Page 37 RECOMMENDED SPARE PARTS PART NO. 00-407727-00005 ON/OFF Burner Knob (IR1 & IR2) ... 2 00-407727-00004 Hi/Med/Low Burner Knob (GHIR44) ... 2 00-405016-00001 Electric Supply Cord ... 1 00-413552-00004 Blower Motor ... 1 00-428578-000G1 Solenoid Valve ... 1 00-408485-00079 Pilot Orifice (Nat. Gas) ... 2 00-408485-00010 Pilot Orifice (LP Gas) ...
