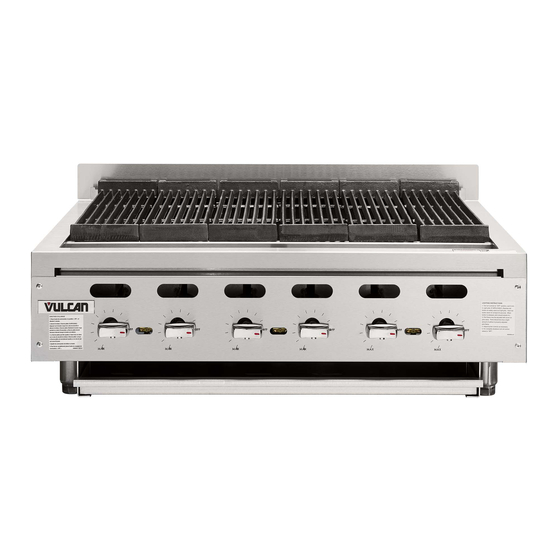

Vulcan-Hart VACB25 Replacement Parts Manual
Vacb series achiever charbroiler
Hide thumbs
Also See for VACB25:
- Specifications (2 pages) ,
- Installation and operation manual (11 pages) ,
- Installation & operation manual (28 pages)
Table of Contents
Advertisement
Quick Links
WWW.VULCANHART.COM
VACB SERIES
MODEL
VACB25
VACB36
VACB47
VACB60
VACB72
MODEL ACB47
ITW Food Equipment Group, LLC
An Illinois Tool Works Company
3600 North Point Blvd., Baltimore, MD 21222
ML-710563
ML-710564
ML-710565
ML-710566
ML-498068
TECHNICAL SERVICE AND PARTS ASSISTANCE
1-800-814-2028
REPLACEMENT PARTS
ACHIEVER CHARBROILER
MODEL VACB47
ACB SERIES
MODEL
ACB25
ACB36
ACB47
ACB60
ACB72
CATALOG OF
WWW.WOLFRANGE.COM
ML-710563
ML-710564
ML-710565
ML-710566
ML-498068
FORM 37122 ( Feb. 2008)
Advertisement
Table of Contents
Related Manuals for Vulcan-Hart VACB25
Summary of Contents for Vulcan-Hart VACB25

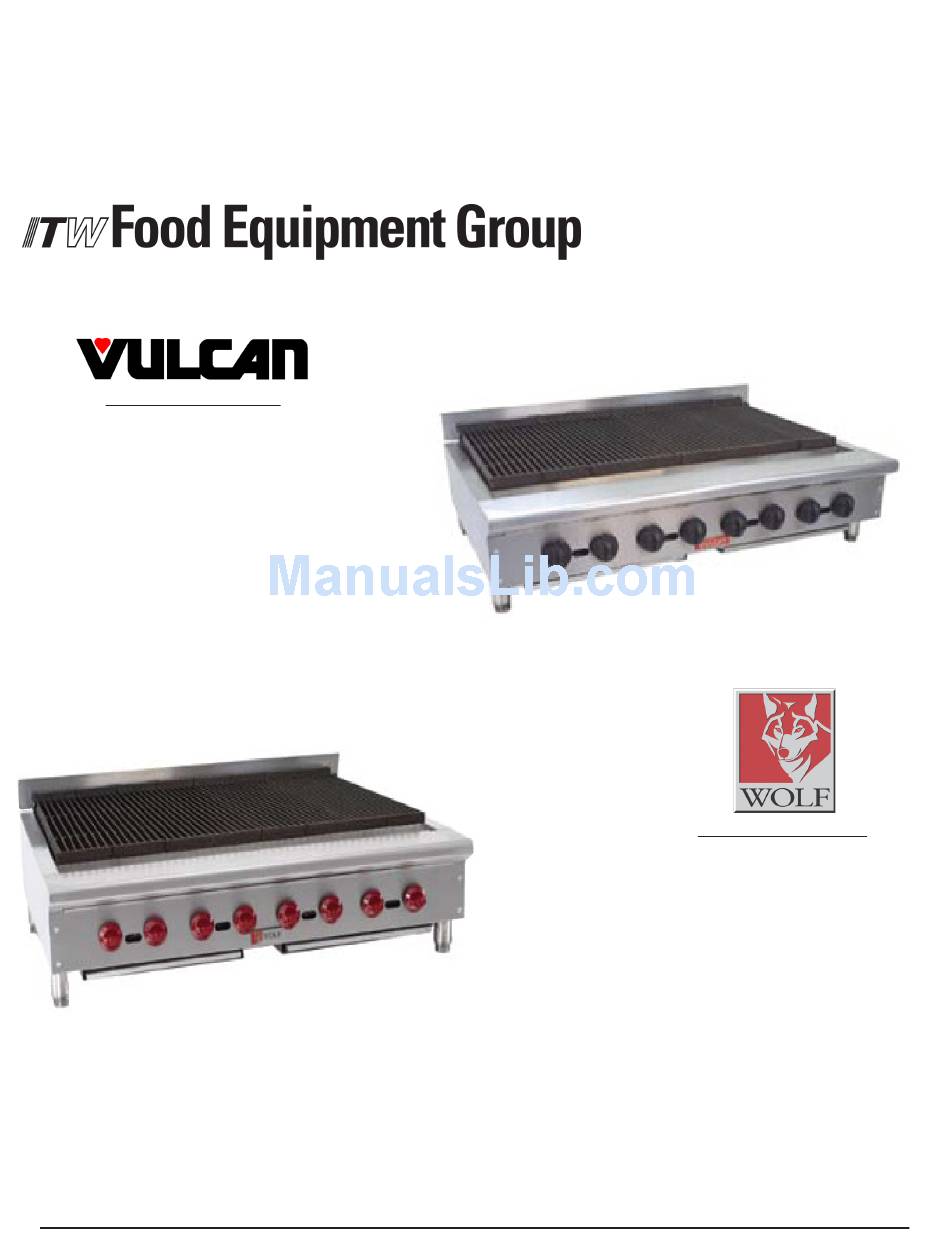

- Page 1 WWW.VULCANHART.COM VACB SERIES MODEL VACB25 ML-710563 VACB36 ML-710564 VACB47 ML-710565 VACB60 ML-710566 VACB72 ML-498068 MODEL ACB47 TECHNICAL SERVICE AND PARTS ASSISTANCE ITW Food Equipment Group, LLC An Illinois Tool Works Company 3600 North Point Blvd., Baltimore, MD 21222 REPLACEMENT PARTS...
- Page 2 ACHIEVER CHARBROILER REPLACEMENT PARTS ILLUS. PART 00-410601-0FLAT Flat Heat Deflector ... AR 00-710513 Bracket, Tray Guide ... 2 00-710501 Burner Wire ... AR 00-410601 Heat Deflector ... AR 00-710510 Plate, Supercharger ... AR 00-410600-000G2 Burner Assy. Casting ... AR 00-710503 Leg, 2"...
- Page 3 REPLACEMENT PARTS ACHIEVER CHARBROILER – 3 –...
- Page 4 PART 00-720971-00024 Grate, 7 Rib Cast Diamond ... AR 00-412852-00001 Grate, 7 Rib Slanted ... AR 00-498207-00025 Front Panel (VACB25, ACB25) ... 1 00-498207-00036 Front Panel (VACB36, ACB36) ... 1 00-498207-00047 Front Panel (VACB47, ACB47) ... 1 00-498207-00060 Front Panel (VACB60, ACB60) ... 1 00-498207-00072 Front Panel (VACB72, ACB72) ...
- Page 5 REPLACEMENT PARTS ACHIEVER CHARBROILER – 5 –...
- Page 6 Gas Valve ... 2 00-719951-00051 Orifice, #51 (Nat. Gas) ... 2 00-719951-00056 Orifice, #56 (LP Gas) ... 2 00-719255-00012 Knob, Red Wolf ... 2 00-428300-00001 Knob, Black Vulcan ... 2 00-719124 10" Pilot Tube ... 2 00-719135 SS Pilot Tip ... 2 00-720971-00024 Cast Diamond Grate ...
- Page 7 REPLACEMENT PARTS ACHIEVER CHARBROILER NOTES – 7 –...
