Vulcan-Hart GHCB40 Replacement Parts Manual page 17

3
5
ILLUS. PART NO.
PL-40431-1
1 00-417074-000G1
2 00-411551-000G1
3 00-404146-00001
4 00-404145-00001
5 SC-036-08
6 00-497762-000G1
00-408111-00002
00-413607-000G1
00-413612-000G1
00-416844-00001
00-416845-00001
00-408726-000G2
00-408244-000G2
00-408244-000G1
4
2

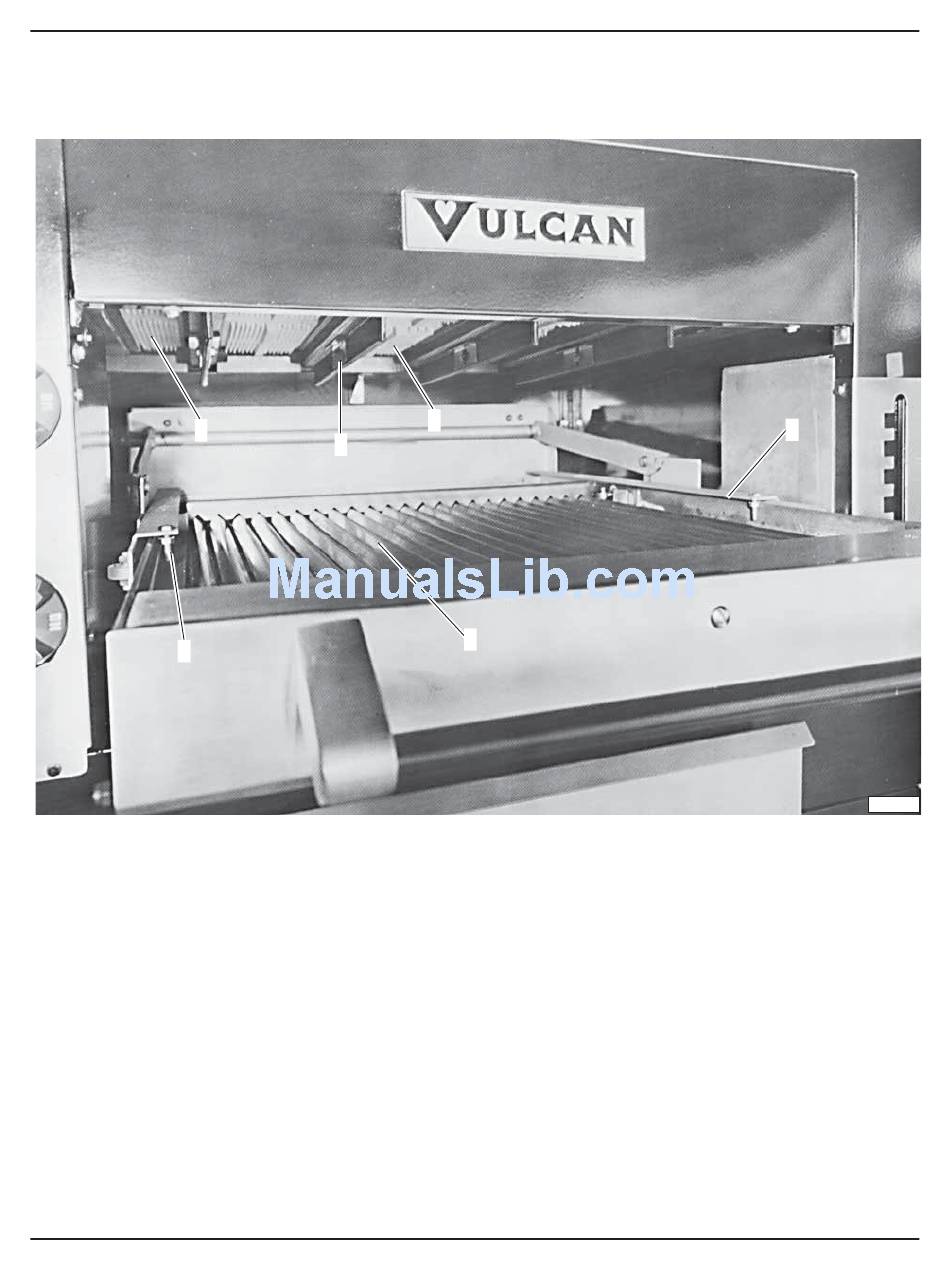

PARTS - GRID ASSEMBLY HCB2
DESCRIPTION
Grid Final Assembly ...................................................................................... 1 ........ 2 .......... 1 ........... 1
Burner Assembly .......................................................................................... 4 ........ 8 .......... 4 ........... 4
Burner Side Ceramics .................................................................................. 8 ........ 16 ........ 8 ........... 8
Burner Center Ceramics ............................................................................... 12 ...... 24 ....... 12 ......... 12
Grid Stop Bolt Hex Head 1 / " x 1
4
Grid Carriage ................................................................................................ 1 ........ 2 .......... 1 ........... 1
Drip Shield Rod ............................................................................................ 1 ........ 2 .......... 1 ........... 1
Lifting Arm Assembly .................................................................................... 1 ........ 2 .........................
Lifting Arm Assembly .............................................................................................................. 1 ........... 1
Front Cooking Grate ..................................................................................... 1 ........ 2 .......... 1 ........... 1
Rear Cooking Grate ..................................................................................... 1 ........ 2 .......... 1 ........... 1
Ceramic Set (8 Sides & 12 Centers) ............................................................ 1 ........ 2 .......... 1 ........... 1
Brick Support (Left Side) .............................................................................. 1 ........ 2 .......... 1 ........... 1
Brick Support (Right Side) ............................................................................ 1 ........ 2 .......... 1 ........... 1
HEAVY DUTY GAS BROILER REPLACEMENT PARTS
1
1 / " ............................................................. 3 ........ 6 .......... 3 ........... 3
4
- 17 -
6
PL-40431-1
QTY.
HCB1 HCB2 GHCB40 GHCB44
