Vulcan-Hart GHIR44 Specifications

SPECIFICATIONS
Battery matching heavy-duty single deck gas infrared broiler
with nishing oven over the broiler and storage base under the
broiler. Model No. GHIR44, manufactured by Vulcan-Hart.
Stainless steel body 6" adjustable legs. Power blower to mix
primary and secondary air with (natural) (propane) gas. Air and
gas mixture to move through overhead perforated ceramic tile
infrared generators. Four 20,000 BTU/hr. ceramic tile faced burners
reach approximately 1600°F through two in nite heat valves with
high and low positions. 80,000 total BTU/hr. input. Pilot lights and
pressure regulator. Spring balanced broiler grid area to be
25 ⁄ "w x 29 ⁄ "d. Grid is made of cold rolled steel bars and is
1 1
2 2
mounted on roller bearings. Insulated external handle and adjustable
to ve locking broiling levels. Contains and above broiler au gratin
oven with interior dimentions: 26" x 28" x 10". Bottom storage
base has two doors
Exterior dimensions: 34"w x 38
CSA design certi ed. NSF listed.
SPECIFY TYPE OF GAS AND FINISH WHEN ORDERING
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32419 (05-06)
/ "d x 82"h.
1
4
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
GHIR44
INFRARED BROILER

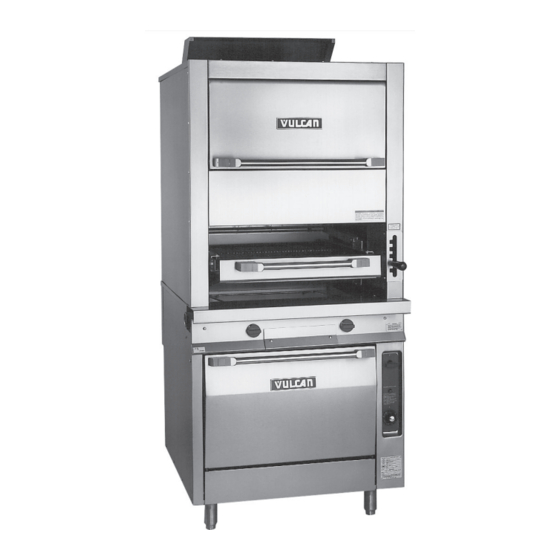

GHIR44 With Au gratin oven and lower storage area
STANDARD FEATURES
Stainless steel front, top and legs.
High production infrared broiler with power blower supplied
primary and secondary air.
Reaches 1600°F broiling temperatures quickly and main-
tains broiling e ciency during peak hours under repeated
loading.
Radiant infrared rays reduce broiling time up to 50% on
many products.
Quick preheating allows broiler to be turned o in slow
periods.
Spring balanced 5 position grid for raising and lowering.
Porcelain enameled steel liners in broiler compartment.
Four foot 120V power cord.
Gas pressure regulator.
Grid area 700 sq. in.; 25
Grid moves on roller bearings.
Cold rolled steel grid bars for marking.
Insulation between outer and inner walls.
Au gratin oven.
One year limited parts and labor warranty.
OPTIONS
Stainless steel nishing back panel.
Stainless steel side(s).
Stainless steel front top ledge.
IR44 - less legs on 1
Rear gas connection.
Second year extended limited parts and labor warranty.
ACCESSORIES
Quick disconnect gas hose.
C.S.I. Section 11420
/ " x 29 / ".
1 1
2 2
/ " base.
5
8
