NF SA-220F5 Instruction Manual

Low noise fet amplifier
Table of Contents

Advertisement

Quick Links

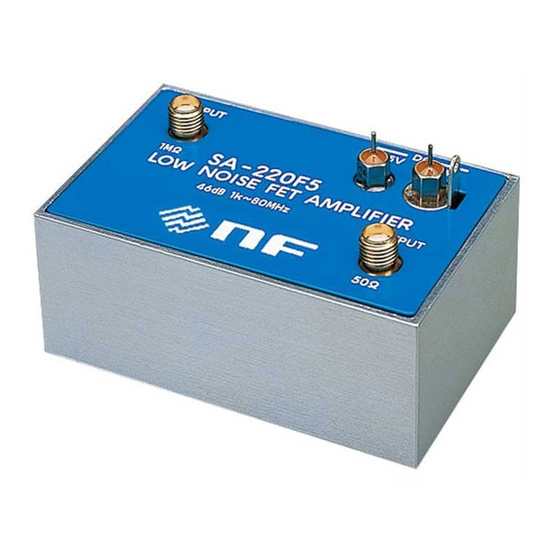

LOW NOISE FET AMPLIFIER
SA-220F5
INSTRUCTION MANUAL
NF Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-220F5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NF SA-220F5

  • Page 1 LOW NOISE FET AMPLIFIER SA-220F5 INSTRUCTION MANUAL NF Corporation...
  • Page 3 DA00062386-001 LOW NOISE FET AMPLIFIER SA-220F5 INSTRUCTION MANUAL...
  • Page 5 This chapter explains the basic operations of the panels. 4. Maintenance This chapter describes a method for simply inspecting operation. 5. Specifications This chapter gives specifications (functions and performance). 6. Reference Data This chapter shows the general electrical characteristics of a normal SA-220F5. SA-220F5...
  • Page 6: Safety Information

    ────Safety Information──── To ensure safe use, be sure to observe the following safety precautions. NF Corporation shall not be held liable for damages that arise from a failure to observe these safety precautions or warnings or cautions in the instruction manual.
  • Page 7 42 Vpk or less for safety (this product is used grounded so the encl osure potential and ground potential are equal).  Waste disposal For environmental protection, do not discard this product in domestic household waste. This product shall be disposed of through an appropriate industrial waste disposer. SA-220F5...
  • Page 8: Table Of Contents

    Reference Data ...................... 6-1 Equivalent Input Noise Voltage Density ..............6-1 Noise Figure Frequency Characteristic (for 50 Ω system) ........6-2 Voltage Gain Frequency Characteristic ..............6-2 Output VSWR Frequency Characteristic ..............6-3 Reverse Transfer Gain Frequency Characteristic ..........6-3 WARRANTY SA-220F5...
  • Page 9 Figure 6-3 Voltage gain frequency characteristic from 10Hz to 200 MHz ......... 6-2 Figure 6-4 Output VSWR frequency characteristic from 100 kHz to 500 MHz ......6-3 Figure 6-5 Reverse transfer gain frequency characteristic from 1 kHz to 500 MHz ....6-3 Table 2-1 List of contents....................2-1 SA-220F5...
  • Page 11: Outline

    1. Outline Overview ........................ 1-1 Features......................... 1-1 Operating Principle ....................1-2...
  • Page 12: Overview

    200 times gain and a wide bandwidth (300 Hz to 100 MHz) with a high input impedance (1 MΩ). By adopting a low noise FET and negative feedback technology, the SA-220F5 realizes both high input impedance and ultra–low-noise characteristics.
  • Page 13: Operating Principle

    (26dB), so the total gain is 52 dB (400 times). The output impedance of this product is 50 Ω, so the gain of this product is 46 dB (200 times) for a 50 Ω load. Figure 1-1 Block diagram SA-220F5...
  • Page 15: Preparation Before Use

    2. Preparation before Use Check Appearance and Accessories..............2-1 Conditions for Installation Location ..............2-2 Power Supply ......................2-2 Connecting with Low Noise DC Power Supply LP Series ........2-3 Connecting to Power Supply other than LP Series ..........2-4...
  • Page 16: Check Appearance And Accessories

    When you take the contents out of the box, check them. If you find a deep scratch or dent on the product or an accessory is missing, report the problem to the NF Corporation or one of our representatives.
  • Page 17: Conditions For Installation Location

    ・Stabilized DC power supply with ±15 V ±5 %, +15 V: +75 mA or more, −15 V: −15 mA or higher (a switching power supply is not recommended). Attention This product will be damaged by reversely connecting the power supply. Supplying a voltage greater than ± 16.5 V will damage the internal circuits of this product. SA-220F5...
  • Page 18: Connecting With Low Noise Dc Power Supply Lp Series

    ・Do not apply excessive force to the cable while the cable is connected to this product. The power supply pin of this product is easy to bend, and if strong force is applied, the pin may break (if it should be damaged, a repair fee will be charged). SA-220F5...
  • Page 19: Connecting To Power Supply Other Than Lp Series

    ・Be sure to carefully reconfirm the polarity and voltage of the power supply. ・If the power supply is reversely connected or a voltage of higher than ±16.5 V is applied, the internal circuits will be damaged. ・Use a DC power supply that restricts the current to 150 mA. SA-220F5...
  • Page 21: Panel Features And Basic Operations

    3. Panel Features and Basic Operations Panel Component Names and Functions ............3-1 Input Connection and Installation ..............3-3 Output Connection ....................3-4 Warm-up Time ...................... 3-4...
  • Page 22: Panel Component Names And Functions

    Four plastic screws are attached to protect the case while the product is shipped from the factory. Remove them when attaching the bottom plate. The screw hole diameter for attaching the bottom plate is M3. Use metal screws (M3 pan head screw with a 4 mm length) when attaching it. SA-220F5...
  • Page 23: Figure 3-1 Front And Rear Panel Views

    3.1 Panel Component Names and Functions ③ ④ ⑤ ① ② ⑥ Figure 3-1 Front and rear panel views SA-220F5...
  • Page 24: Input Connection And Installation

    Do not connect this product to an AC outlet because doing so is dangerous.  The signal GND and case have the same electric potential. Caution is required when giving a potential to the case or signal GND because doing so may cause electric shock. SA-220F5...
  • Page 25: Output Connection

    If this device is used while its output is not terminated with 50 Ω, the prescribed performance cannot be achieved. Be sure to set the termination with 50 Ω. Warm-up Time When a highly accurate measurement is required, our recommendation is 20 minutes warm up before measurement. SA-220F5...
  • Page 27: Maintenance

    4. Maintenance Before Maintenance ....................4-1 Consumption Current with No Signal ..............4-2 Operation Test ....................... 4-2...
  • Page 28: Before Maintenance

    Maintenance is required to keep the product in the best condition. This manual describes an operation check that can be easily performed to check if this product is normal. For advanced inspection, calibration, or maintenance, contact NF or our agent. For operation checks, the following measurement devices are required.
  • Page 29: Consumption Current With No Signal

    10 kHz. If waveforms like those in Figure 4-2 are displayed on the oscilloscope, this is normal. Signal generator DC power supply ±15 V 50Ω terminator ± 100 mV at 10 kHz Sine wave 20dB attenuator 50Ω 50Ω power divider Oscilloscope Figure 4-1 Connection diagram for operation test SA-220F5...
  • Page 30: Figure 4-2 Input Voltage Waveforms And Output Voltage Waveforms

    4.3 Operation Test Input: 10 mV Upper waveform: 5 mV/DIV Lower waveform: 1 V/DIV Output: −0.2 −0.1 [ms] Figure 4-2 Input voltage waveforms and output voltage waveforms SA-220F5...
  • Page 31: Specifications

    5. Specifications Non-destructive Maximum Ratings ..............5-1 Electrical Characteristics ..................5-1 5.2.1 Input ....................... 5-1 5.2.2 Output ......................5-2 5.2.3 Amplifier ......................5-2 5.2.4 Power supply ....................5-3 General ........................5-3 External View......................5-4 External Dimensions of Bottom Plate ..............5-5...
  • Page 32: Non-Destructive Maximum Ratings

    Parallel capacitance 57 pF typical Equivalent input noise voltage density (input terminal short circuit) nV/ Hz or lower (at 100 kHz) nV/ Hz typical (10 kHz to 1 MHz) Equivalent input noise current density fA/ Hz typical (at 100 kHz) SA-220F5...
  • Page 33: Output

    Reverse transfer gain −110 dB typical (at 10 MHz) −80 dB typical (at 100 MHz) Voltage gain frequency characteristic 1 kHz to 80 MHz +0.5 / −3 dB 300 Hz to 100 MHz typical +0.5 / −3 dB SA-220F5...
  • Page 34: Power Supply

    68 (W) × 43 (D) × 28 (H) mm (without protrusions) Weight (net) Approx. 130 g Operating temperature and humidity ranges 0 to 40 °C, 10 to 90 %RH (non-condensation) Storage temperature and humidity ranges −10 to 50 °C, 10 to 80 %RH (non-condensation) SA-220F5...
  • Page 35: External View

    5.4 External View External View Figure 5-1 External view SA-220F5...
  • Page 36: External Dimensions Of Bottom Plate

    5.5 External Dimensions of Bottom Plate External Dimensions of Bottom Plate Figure 5-2 External dimensions of bottom plate SA-220F5...
  • Page 37 6. Reference Data Reference Data ...................... 6-1 Equivalent Input Noise Voltage Density ............. 6-1 Noise Figure Frequency Characteristic (for 50 Ω system) ......... 6-2 Voltage Gain Frequency Characteristic ............... 6-2 Output VSWR Frequency Characteristic ............6-3 Reverse Transfer Gain Frequency Characteristic ..........6-3...
  • Page 38: Reference Data

    6.1 Reference Data Reference Data This chapter shows the general electrical characteristics of a normal SA-220F5. These data show the average values obtained by measuring the performance of individual products. The performance of this product may not achieve the level of these data, but all products have been strictly tested before shipment to check that they meet the specifications.
  • Page 39: Noise Figure Frequency Characteristic (For 50 Ω System)

    6.3 Noise Figure Frequency Characteristic (for 50 Ω system) Noise Figure Frequency Characteristic (for 50 Ω system) 110M Frequency [Hz] Figure 6-2 Noise figure frequency characteristic from 10 MHz to 110 MHz Voltage Gain Frequency Characteristic Figure 6-3 Voltage gain frequency characteristic from 10Hz to 200 MHz SA-220F5...
  • Page 40: Output Vswr Frequency Characteristic

    6.5 Output VSWR Frequency Characteristic Output VSWR Frequency Characteristic Figure 6-4 Output VSWR frequency characteristic from 100 kHz to 500 MHz Reverse Transfer Gain Frequency Characteristic Figure 6-5 Reverse transfer gain frequency characteristic from 1 kHz to 500 MHz SA-220F5...
  • Page 42 NF or an agent designated by NF. The purchaser shall prepay for all shipping charges, duties, and taxes for the product to either NF or an agent from another country, and the shipping charge for returning the product to the purchaser shall be paid by NF.
  • Page 43  We assume no responsibility for influences resulting from the operations in this manual. Copyright 2017, NF Corporation SA-220F5 INSTRUCTION MANUAL NF Corporation 6-3-20, Tsunashima Higashi, Kohoku-ku, Yokohama...
  • Page 44 NF Corporation 6-3-20, Tsunashima Higashi, Kohoku-ku, Yokohama 223-8508 JAPAN...
