- Page 1 LOW NOISE AMPLIFIER SA-200F3 INSTRUCTION MANUAL NF Corporation...
- Page 3 DA00062385-001 LOW NOISE AMPLIFIER SA-200F3 INSTRUCTION MANUAL...
- Page 5 This chapter explains the basic operations of the panels. 4. Maintenance This chapter describes a method for simply inspecting operation. 5. Specifications This chapter gives specifications (functions and performance). 6. Reference Data This chapter shows the general electrical characteristics of a normal SA-200F3. SA-200F3...
-
Page 6: Safety Information
────Safety Information──── To ensure safe use, be sure to observe the following safety precautions. NF Corporation shall not be held liable for damages that arise from a failure to observe these safety precautions or warnings or cautions in the instruction manual. - Page 7 42 Vpk or less for safety (this product is used grounded so the encl osure potential and ground potential are equal). Waste disposal For environmental protection, do not discard this product in domestic household waste. This product shall be disposed of through an appropriate industrial waste disposer. SA-200F3...
-
Page 8: Table Of Contents
Power supply ....................5-2 General ........................5-3 External View ......................5-4 External Dimensions of Bottom Plate ..............5-5 Reference Data ...................... 6-1 Reference Data ...................... 6-1 Equivalent Input Noise Voltage Density ..............6-1 Voltage Gain Frequency Characteristic ..............6-2 WARRANTY SA-200F3... - Page 9 Figure 5-2 External dimensions of bottom plate ............... 5-5 Figure 6-1 Equivalent input noise voltage density from 1 Hz to 800 kHz ......6-1 Figure 6-2 Voltage gain frequency characteristic from 1 kHz to 10 MHz ......6-2 Table 2-1 List of contents....................2-1 SA-200F3...
-
Page 11: Outline
1. Outline Overview ........................ 1-1 Features......................... 1-1 Operating Principle ....................1-2... -
Page 12: Overview

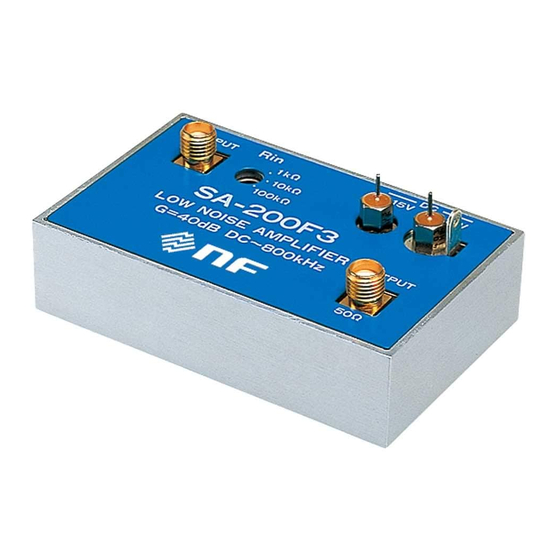

1.1 Overview Overview The SA-200F3 is an ultra-low-noise amplifier realizing equivalent input noise voltage density of 0.5 nV/ Hz. Furthermore, it has 100 times gain and a wide bandwidth (DC to 800 kHz) with keeping a low drift (0.2 µV/°C). -
Page 13: Operating Principle
A2 is the other non-inverting amplifier composed of an OPamp. The gain of A1 is 50 times, and that of A2 is 2 times, so the total gain is 100 times (40 dB). Figure 1-1 Block diagram SA-200F3... -
Page 15: Preparation Before Use
2. Preparation before Use Check Appearance and Accessories..............2-1 Conditions for Installation Location ..............2-2 Power Supply ......................2-2 Connecting with Low Noise DC Power Supply LP Series ........2-3 Connecting to Power Supply other than LP Series ..........2-4... -
Page 16: Check Appearance And Accessories
When you take the contents out of the box, check them. If you find a deep scratch or dent on the product or an accessory is missing, report the problem to the NF Corporation or one of our representatives. -
Page 17: Conditions For Installation Location
・Stabilized DC power supply with ±15 V ±5 %, +15 V: +50 mA or higher, −15 V: −50 mA or higher (a switching power supply is not recommended). Attention This product will be damaged by reversely connecting the power supply. Supplying a voltage greater than ± 16.5 V will damage the internal circuits of this product. SA-200F3... -
Page 18: Connecting With Low Noise Dc Power Supply Lp Series
・Do not apply excessive force to the cable while the cable is connected to this product. The power supply pin of this product is easy to bend, and if strong force is applied, the pin may break (if it should be damaged, a repair fee will be charged). SA-200F3... -
Page 19: Connecting To Power Supply Other Than Lp Series
・Be sure to carefully reconfirm the polarity and voltage of the power supply. ・If the power supply is reversely connected or a voltage of higher than ±16.5 V is applied, the internal circuits will be damaged. ・Use a DC power supply that restricts the current to 150 mA. SA-200F3... -
Page 21: Panel Features And Basic Operations
3. Panel Features and Basic Operations Panel Component Names and Functions ............3-1 Input Connection and Installation ..............3-3 Output Connection ....................3-4 Warm-up Time ...................... 3-4... -
Page 22: Panel Component Names And Functions
Four plastic screws are attached for factory shipment to protect the case. Remove them when attaching the bottom plate. The screw hole diameter for attaching the bottom plate is M3. Use the metal screws (M3 pan head screw with a 4 mm length) when attaching it. SA-200F3... -
Page 23: Figure 3-1 Front And Rear Panel Views
3.1 Panel Component Names and Functions ④ ⑤ ⑥ ② ① ③ ⑦ Figure 3-1 Front and rear panel views SA-200F3... -
Page 24: Input Connection And Installation
Do not connect this product to an AC outlet because doing so is dangerous. The signal GND and case have the same electric potential. Caution is required when giving a potential to the case or signal GND because doing so may cause electric shock. SA-200F3... -
Page 25: Output Connection
Also note that when the output current exceeds 10 mA, damage to the internal circuits and deterioration of the characteristics may occur. Warm-up Time When a highly accurate measurement is required, our recommendation is 20 minutes warm up before measurement. SA-200F3... -
Page 27: Maintenance
4. Maintenance Before Maintenance ....................4-1 Consumption Current with No Signal ..............4-2 Operation Test ....................... 4-2... -
Page 28: Before Maintenance
Maintenance is required to keep the product in the best condition. This manual describes an operation check that can be easily performed to check if this product is normal. For advanced inspection, calibration, or maintenance, contact NF or our agent. For operation checks, the following measurement devices are required. -
Page 29: Consumption Current With No Signal
1 kHz. If waveforms like those in Figure 4-2 are displayed on the oscilloscope, this is normal. Signal generator DC power supply ±15 V ± 100 mV at 1 kHz Sine wave T-type divider Oscilloscope Figure 4-1 Connection diagram for operation test SA-200F3... -
Page 30: Figure 4-2 Input Voltage Waveforms And Output Voltage Waveforms
4.3 Operation Test Input: 200 mV Upper waveform: 100 mV/DIV Lower waveform: 10 V/DIV Output: 20 V −2 −1 [ms] Figure 4-2 Input voltage waveforms and output voltage waveforms SA-200F3... -
Page 31: Specifications
5. Specifications Non-Destructive Maximum Ratings ..............5-1 Electrical Characteristics ..................5-1 5.2.1 Input ....................... 5-1 5.2.2 Output ......................5-2 5.2.3 Amplifier ......................5-2 5.2.4 Power supply ....................5-2 General ........................5-3 External View......................5-4 External Dimensions of Bottom Plate ..............5-5... -
Page 32: Non-Destructive Maximum Ratings
Equivalent input noise voltage density (Input terminal short circuit) nV/ Hz or lower (at 1 kHz) 0.5 nV/ typical (at 1 kHz) Equivalent input offset voltage ± 50 µV typical (input terminal short circuit) DC drift (referred to input) µV/°C typical (input terminal short circuit) SA-200F3... -
Page 33: Output
0.009 % typical (at 1 kHz), ±10 V output 5.2.4 Power supply Operating supply voltage range ± 15 V ± 5 % Recommended power supply and cable: LP5391, LP5393 or LP5394 and PA-001-2373 Consumption current (±15 V, no signal) ±50 mA or lower SA-200F3... -
Page 34: General
68 (W) × 43 (D) × 17.6 (H) mm (without protrusions) Weight (net) Approx. 90 g Operating temperature and humidity ranges 0 to 40 °C, 10 to 90 %RH (non-condensation) Storage temperature and humidity ranges −10 to 50 °C, 10 to 80 %RH (non-condensation) SA-200F3... -
Page 35: External View
5.4 External View External View Figure 5-1 External view SA-200F3... -
Page 36: External Dimensions Of Bottom Plate
5.5 External Dimensions of Bottom External Dimensions of Bottom Plate Figure 5-2 External dimensions of bottom plate SA-200F3... -
Page 37: Reference Data
6. Reference Data Reference Data ...................... 6-1 Equivalent Input Noise Voltage Density ............. 6-1 Voltage Gain Frequency Characteristic ............... 6-2... -
Page 38: Reference Data
6.1 Reference Data Reference Data This chapter shows the general electrical characteristics of a normal SA-200F3. These data show the average values obtained by measuring the performance of individual products. The performance of this product may not achieve the level of these data, but all products have been strictly tested before shipment to check that they meet the specifications. -
Page 39: Voltage Gain Frequency Characteristic
Voltage Gain Frequency Characteristic Figure 6-2 Voltage gain frequency characteristic from 1 kHz to 10 MHz SA-200F3... - Page 40 NF or an agent designated by NF. The purchaser shall prepay for all shipping charges, duties, and taxes for the product to either NF or an agent from another country, and the shipping charge for returning the product to the purchaser shall be paid by NF.
- Page 41 We assume no responsibility for influences resulting from the operations in this manual. Copyright 2017, NF Corporation SA-200F3 INSTRUCTION MANUAL NF Corporation 6-3-20, Tsunashima Higashi, Kohoku-ku, Yokohama...
- Page 42 NF Corporation 6-3-20, Tsunashima Higashi, Kohoku-ku, Yokohama 223-8508 JAPAN...
