Vulcan-Hart 148L Replacement Parts Manual

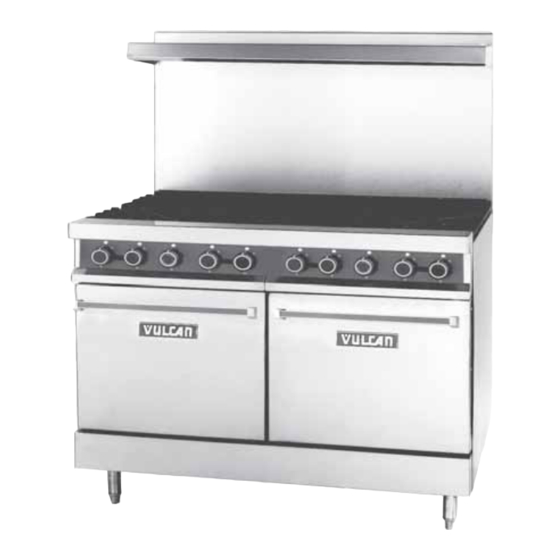

Gas restaurant range
Hide thumbs
Also See for 148L:
- Installation & operation manual (32 pages) ,
- Installation and operation manual (64 pages) ,
- Service manual (52 pages)
Advertisement
GAS RESTAURANT RANGE
MODELS 24L, 36L/LC, 48L, 481L/LC,
148L/LC, 60 L/LC/LCC, 160L/LC, 260L/LC/LCC
MODEL
24L
ML-52947
36L/LC
ML-52948
48L
ML-52949
481L/LC
ML-52950
148L/LC
ML-52951
60L/LC/LCC
ML-52952
160L/LC
ML-52953
260L/LC/LCC
ML-52954
For additional information on Vulcan-Hart or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
P.O. BOX 696, LOUISVILLE, KY 40201-0696
CATALOG OF
TEL. (800) 814-2028
F-30536 Rev. C (May 2006)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vulcan-Hart 148L
Summary of Contents for Vulcan-Hart 148L
-
Page 1: Replacement Parts
60L/LC/LCC ML-52952 160L/LC ML-52953 260L/LC/LCC ML-52954 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF REPLACEMENT PARTS P.O. - Page 2 GAS RESTAURANT RANGE REPLACEMENT PARTS PRODUCT IDENTIFICATION CODE L = STANDARD OVEN LC = (1) STANDARD OVEN/(1) CONVECTION OVEN LCC = 2 CONVECTION OVENS MODEL WIDTH (INCHES) 481L 481LC 148L 148LC 36LC 60LC 60LCC 160L 160LC 260L 260LC 260LCC *TOP CONFIGURATIONS VARY F-30536 Rev.
-
Page 3: Oven Racks
00-413991-00002 Rack – Oven (Conv. Oven) (Shown) ... AR 00-413300-00001 Rack – Oven (Std. Oven) (36L, 148L, 481L, 60L/LC, 160L, & 260L/LC) ... AR 00-417248-00001 Rack – Oven (Std. Oven) (24L & 48L) ... AR 00-415430-00004 Support – Rack Assy. (LH) (Conv. Oven) ... AR 00-417632-00001 Rack –... - Page 4 00-417337-00001 Back Splash (24 In. High, SST) (48L & 481L/LC) ... AR 00-417332-00001 Back Splash (12 In. High, SST) (48L & 481L/LC) ... AR 00-417329-00001 Back Splash (24 In. High, SST) (148L/LC) ... AR 00-417348-00001 Back Splash (12 In. High, SST) (148L/LC) ... AR F-30536 Rev.
- Page 5 Mach. Screw NS-044-14 00-417243-000G1 Shelf (SST) (24L) (Shown) ... AR 00-417244-000G1 Shelf (SST) 36 In..AR 00-417245-000G1 Shelf (SST) (48L, 148L/LC, & 481L/LC) ... AR 00-417246-000G1 Shelf (SST) (60L/LC/LCC, 160L/LC, & 260L/LC/LCC) ... AR SD-032-07 Self-Tapping Screw 10-24 x 00-417252-00001 Channel –...
- Page 6 00-417341-00001 Shield – Heat (27 In. High) (36L/LC) ... AR 00-417345-00001 Shield – Heat (14 00-417342-00001 Shield – Heat (27 In. High) (48L, 148L/LC, & 481L/LC) ... AR 00-417346-00001 Shield – Heat (14 00-417343-00001 Shield – Heat (27 In. High) (60L/LC/LCC, 160L/LC, & 260L/LC/LCC) ... AR F-30536 Rev.
-
Page 7: L/Lc/Lcc
00-417865-00001 Turnbuckle (36L/LC, 60L/LC/LCC, 160L/LC, 148L/LCC, 481L/LC, & 260L/LC/LCC) ... AR 00-412014-00001 Spring W/Swivel Hook (24L & 48L) ... AR 00-404053-00001 Spring – Oven Door (36L/LC, 148L/LC, 481L/LC, & 160L/LC) ... AR 00-413342-00001 Spring – Oven Door (60L/LC/LCC & 260L/LC/LCC) ... AR 00-417367-00001 Bracket –... - Page 8 PL-56748 00-417279-00001 Manifold (24L) ... AR 00-417281-00001 Manifold (48L & 481L/LC) ... AR 00-417280-00001 Manifold (36L/LC) ... AR 00-417273-00001 Manifold (148L/LC) ... AR 00-417282-00001 Manifold (60L/LC/LCC) ... AR 00-417278-00001 Manifold (160L/LC) ... AR 00-417283-00001 Manifold (260L/LC/LCC) ... AR 00-415677-00001 Clip – Capillary ... AR 00-417490-00001 Dial –...
- Page 9 00-408279-00006 Regulator (L.P.) 60/72 ... AR FP-019-26 FP-085-01 Pipe FP-013-22 Elbow FP-026-17 Bushing GAS RESTAURANT RANGE REPLACEMENT PARTS NAME OF PART Tube to MPT) ... AR Tube to FPT) ... AR (Use With Item 45) ... AR (Use With Item 45) ... AR Tube) ...
- Page 10 GAS RESTAURANT RANGE REPLACEMENT PARTS GAS MANIFOLD AND TUBING (Cont.) ILLUS. PART NO. PL-56748 FP-085-42 Fitting – Tube ( 00-047456-00001 Tubing – Right Supply to Elbow (LCC Units) ... AR 00-417449-000G1 Cable – Oven Control (LH) (Standing Pilot Convection Ovens Only) ... AR 00-420795-000G1 Cable –...
-
Page 11: Gas Burners
GAS RESTAURANT RANGE REPLACEMENT PARTS GAS BURNERS F-30536 Rev. C (May 2006) - 11 -... - Page 12 GAS RESTAURANT RANGE REPLACEMENT PARTS ILLUS. PART NO. PL-56749C 00-417260-000G1 Venturi – Rear ... AR 00-413302-00001 Clip – Pilot Mounting ... AR 00-417608-00002 Head – Burner (12 In.) (Open Top) ... AR 00-417256-00002 Grate ... AR 00-417370-00001 Casting – Hot Top (Not Shown) ... AR 00-417234-00001 Support –...
- Page 13 GAS RESTAURANT RANGE REPLACEMENT PARTS CONVECTION OVEN VENT MOTOR F-30536 Rev. C (May 2006) - 13 -...
- Page 14 GAS RESTAURANT RANGE REPLACEMENT PARTS CONVECTION OVEN VENT MOTOR ILLUS. PART NO. PL-56750 00-413990-000G4 Cover – Fan ... AR SC-111-03 Mach. Screw 00-411289-00003 Spacer – Pipe 00-415780-00008 Wheel – Blower (7 In. Dia.) (Incls. Set Screws) ... AR 00-413987-00001 Mount – Motor ... AR 00-414367-00001 Insulator –...
- Page 15 GAS RESTAURANT RANGE REPLACEMENT PARTS GRIDDLE F-30536 Rev. C (May 2006) - 15 -...
- Page 16 00-404738-00002 Valve – Pilot FP-085-53 Plug – Pipe 00-417669-000G1 Tray Assy. (Broiler-Griddle) ... AR Drip Pan Assy. (Broiler-Griddle) ... AR *Contact Vulcan-Hart Service. **Thermostat Controlled Griddle (Refer to Page 12 for Burner Valve). F-30536 Rev. C (May 2006) GRIDDLE NAME OF PART Compression Nut ...
-
Page 17: Recommended Spare Parts List
00-408279-00005 Regulator, Natural ... 2 00-412787-00001 Pilot, Oven, Natural ... 2 00-418051-00044 Burner Valve Orifice, Natural ... 2 00-418051-00055 Burner Valve Orifice, LP ... 2 GAS RESTAURANT RANGE REPLACEMENT PARTS NAME OF PART F-30536 Rev. C (May 2006) - 17 -... -
Page 18: Convection Ovens
GAS RESTAURANT RANGE REPLACEMENT PARTS RECOMMENDED SPARE PARTS LIST CONVECTION OVENS BUILT AFTER 9-00 WITH SPARK IGNITION PART NO. 00-413342-00001 Door Spring (60, 260) ... 2 00-412014-00001 Door Spring (24, 48) ... 2 00-404053-00001 Door Spring (36, 148, 481, 160) ... 2 00-417865-00001 Turnbuckle ... - Page 19 RECOMMENDED SPARE PARTS LIST CONVECTION OVENS BUILT BEFORE 9-00 PART NO. 00-413342-00001 Door Spring (60, 260) ... 2 00-412014-00001 Door Spring (24, 48) ... 2 00-404053-00001 Door Spring (36, 148, 481, 160) ... 2 00-417865-00001 Turnbuckle ... 2 00-417366-00001 J-Bolt for Springs ... 2 00-403956-00001 Bell Crank ...
- Page 20 GAS RESTAURANT RANGE REPLACEMENT PARTS FORM 30536 Rev. C MAY 2006 PRINTED IN U.S.A.
