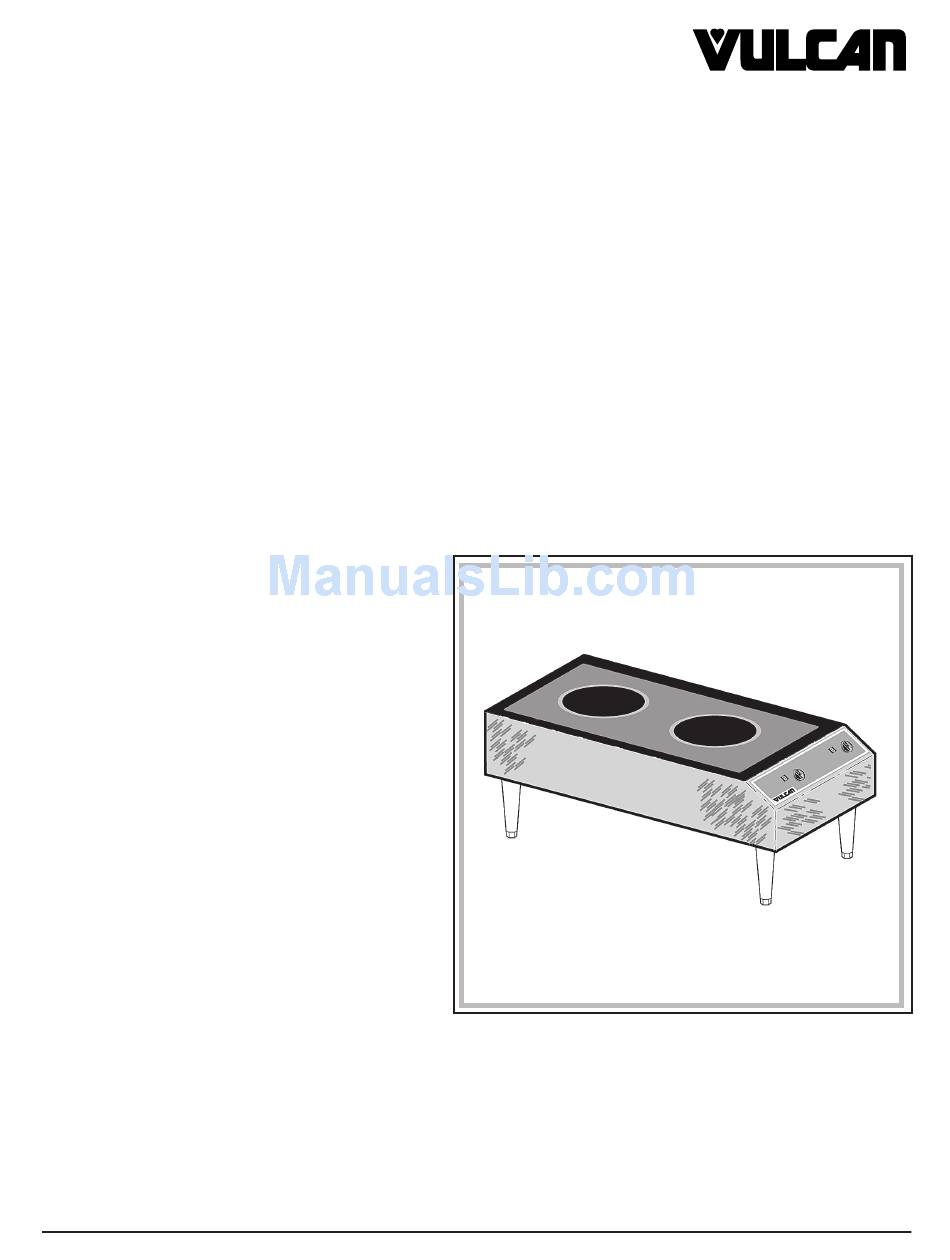

VI2, 3, 22, 33, & 23 INDUCTION COOKTOPS
MODELS
VI2
ML-114708
VI3
ML-114709
VI22
ML-114710
VI33
ML-114711
VI23
ML-114712
V U L C A N - H A R T C O M P A N Y , P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. (502) 778-2791
FORM 30989 Rev. B (5-98)
Operation MANUAL
Single 2.2KW
Single 3KW
Double 4.4KW
Double 6KW
Double 5.2KW
VI22/VI33/VI23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vulcan-Hart V12

  • Page 1 INSTALLATION & OPERATION MANUAL VI2, 3, 22, 33, & 23 INDUCTION COOKTOPS MODELS ML-114708 Single 2.2KW ML-114709 Single 3KW VI22 ML-114710 Double 4.4KW VI33 ML-114711 Double 6KW VI23 ML-114712 Double 5.2KW VI22/VI33/VI23 V U L C A N - H A R T C O M P A N Y , P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. (502) 778-2791 FORM 30989 Rev.
  • Page 2 Do not leave unattended while frying — a small amount of oil can overheat or flame. • Keep magnetic items such as computer disks, magnetic tapes or cassettes, credit cards or magnetic tickets or hotel passkeys away from the cooktop — they could be damaged. © VULCAN-HART COMPANY, 1996, 1998 — 2 —...
  • Page 3 • Cooktops installed in an enclosure require unrestricted air ventilation for proper operation of the controls. Contact your Vulcan-Hart Customer Service Representative for specific information. INSTALLATION CODES AND STANDARDS The cooktop must be installed in accordance with: In the United States of America: 1.
  • Page 4 EXHAUST HOOD An exhaust system (if required) should be located directly above the cooktop to exhaust steam and heat generated during cooking. Refer to NFPA standard #96. ELECTRICAL CONNECTIONS WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES. WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH TO INDICATE YOU ARE WORKING ON THE CIRCUIT.
  • Page 5 OPERATION WARNING: THE COOKTOP AND ITS PARTS ARE HOT. BE VERY CAREFUL WHEN OPERATING, CLEANING OR SERVICING THE COOKTOP. CONTROLS (Fig. 2) CONTROL CONTROL INDICATOR INDICATOR KNOB KNOB LIGHT LIGHT POWER LEVEL POWER LEVEL ON REAR FRONT PL-52372 MODEL VI22/VI33/VI23 Fig.
  • Page 6 RECOMMENDED PANS (Fig. 3) This appliance is intended for use with magnetic induction cookware only. Pans made of cast iron, enameled iron, or stainless steel with an iron inner layer are recommended. Stainless steel pans with 8-10, 18-8, 18-10, and 18-Cr material specification are acceptable if a magnet will attach itself to the pan and if the shape of the pan is acceptable.
  • Page 7 UNUSABLE PANS (Fig.'s 4 & 5) • Pans with a smaller bottom diameter or partially contacting bottom are not recommended because heat will not transfer properly through the induction magnetic loop which may damage the induction cooktop. Chinese Wok with Round Bottom Pot with Small Diameter Pan with Deformed Bottom Pan with Feet...
  • Page 8: Troubleshooting Guide

    To obtain service and parts information concerning this cooktop, contact the Vulcan-Hart Service Agency in your area (refer to listing supplied with the cooktop), or Vulcan-Hart Company Service Department at the address or phone number shown on the front cover of this manual.
