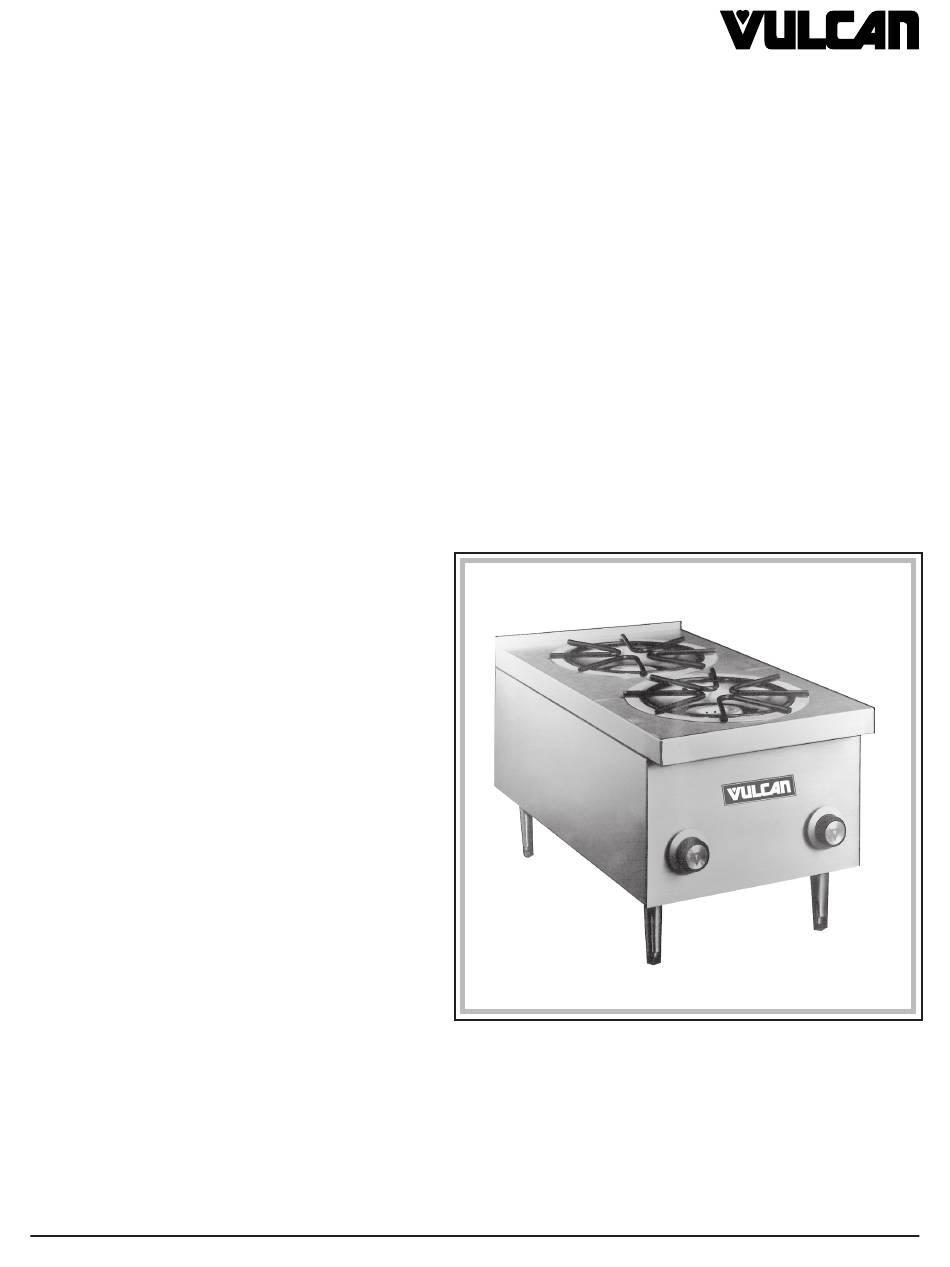

- Page 1 GAS HOTPLATE MODEL MGH14A ML-103826 V U L C A N - H A R T C O M P A N Y , P . O . B O X 6 9 6 , L O U I S V I L L E , K Y 4 0 2 0 1 - 0 6 9 6 , TEL. (502) 7 7 8 - 2 7 9 1...
- Page 2 MGH14A GAS HOTPLATE REPLACEMENT PARTS – 2 –...
- Page 3 REPLACEMENT PARTS MGH14A GAS HOTPLATE MGH14A MEDIUM DUTY GAS COUNTER HOTPLATE SERVICE WARNING: THE HOTPLATE AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING OR SERVICING THE HOTPLATE. REMOVING BURNERS Lift the top grates, then lift the burners carefully and maneuver venturi tube out of the top opening.
- Page 4 MGH14A GAS HOTPLATE REPLACEMENT PARTS PL-52128 HOTPLATE ASSEMBLY – 4 –...
- Page 5 REPLACEMENT PARTS MGH14A GAS HOTPLATE HOTPLATE ASSEMBLY ILLUS. PART PL-52128 NAME OF PART AMT. 00-920229-00001 Frame-Top ..........................1 00-920231 Grate-Top ..........................2 00-920196 Label ............................1 SD-036-61 Self-Tapping Screw 10-16 x ⁄ Slotted Truss Hd., Type B ............2 00-920212 Tray-Drip Top ...........................
- Page 6 MGH14A GAS HOTPLATE REPLACEMENT PARTS 12 THRU 15 10-11 3 THRU 6 22-23 PL-52129 GAS PIPING – 6 –...
- Page 7 REPLACEMENT PARTS MGH14A GAS HOTPLATE GAS PIPING ILLUS. PART PL-52129 NAME OF PART AMT. 00-920392 Knob-Control ..........................2 00-920644-00001 Manifold Assy........................... 1 00-920674-00001 Front Burner Assy........................1 00-920339 Tube-Venturi (Front) ......................... 1 00-920659 Head-Burner ..........................1 00-806469 Gasket ............................1 NS-044-09 Nut Assy.
- Page 8 MGH14A GAS HOTPLATE REPLACEMENT PARTS – 8 – FORM 30972 MAY 1997 PRINTED IN U.S.A.
