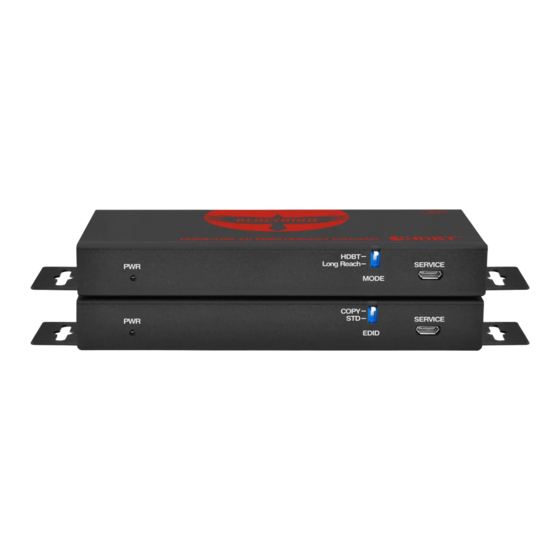

- Page 1 HDBT Long Reach SERVICE M ODE COPY SERVICE EDID Monoprice™ 18G HDBaseT 150M 4K60 Extender with KVM USB 2.0 P/N 44570 User Manual...
- Page 2 Thank You for Purchasing this Product To ensure optimum performance and safety, read the following instructions before connecting, operating, or adjusting the product. Keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.
-
Page 3: Table Of Contents
• This device ventilates excessive heat through the slots and openings in the case. • Do not block or cover these openings. Ensure that the device is in an open area where it can get sufficient airflow to keep from overheating. •... -
Page 4: Introduction
1. Introduction The 18Gbps HDBaseT Extender is a versatile device that allows you to extend the HDMI signal, bi-directional IR control signal, and USB KVM signal up to 150m away using just a single CAT6 cable. It does this by converting the HDMI signal to a standard HDBaseT signal, which can be transmitted via a LAN cable. -
Page 5: Package Contents
• Bi-Directional IR Signal and USB KVM Signal pass-through • Bi-Directional POC (Power over Cable) Function • USB 2.0 Transmission • EDID Management • Compact design for easy and flexible installation 3. Package Contents • 1 × 18Gbps HDBaseT Extender (Transmitter) •... - Page 6 Name Function Description PWR LED The red LED is on when the Transmitter is powered on. Used for audio EDID setting (dial to COPY by default). EDID DIP COPY: Copy the EDID of the HDMI OUT port of the Receiver. switch STD: Default 1080P 2CH SERVICE...
-
Page 7: Receiver Panel
Receiver Panel HDBT Long Reach SERVICE MODE DC 24V HDMI OUT IR IN IR OUT USB 2.0 USB 2.0 Name Function Description PWR LED The red LED is on when the Receiver is powered on. Used for Mode switching (dial to HDBT by default). MODE DIP HDBT: Switching to the HDBaseT Mode. -
Page 8: Ir Pin Definition
Name Function Description Data Signal • Illuminating: HDMI signal with HDCP. Indicator • Flashing: HDMI signal without HDCP. (Yellow) • Dark: No HDMI signal. HDMI signal output port, connecting to HDMI display device HDMI OUT such as TV or monitor. Connect to the IR receiver cable. -
Page 9: Application Example
5. Application Example COPY SERVICE EDID Transmitter DC 24V HDMI IN IR IN IR OUT IR Blaster Power Supply IR Receiver DVD or Blu-ray Player IR Blaster CAT6 Cable UHDTV USB Camera IR Receiver USB Disk HDMI OUT IR IN IR OUT USB 2.0 USB 2.0... -
Page 10: Specifications
6. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 USB Compliance USB 2.0 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz YUV 4:4:4 Transmission Distance 1080P@60--150m, 4K60 --120m Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) Color Depth 8-bit, 10-bit, 12-bit (4K24/30) - Page 11 If you have any problems with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.
- Page 12 Check the website for support times and links. To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type 44570 into the search bar. If available, support files are linked at the bottom of the product page.
- Page 13 Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. All other trademarks, registered trademarks, or service marks are the property of their respective owners. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
- Page 14 1 Pointe Drive, Suite 400 Brea, CA 92821 – USA Product pictures are for reference only. Specifications described herein are subject to change www.monoprice.com without prior notification. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2023 Monoprice, Inc. All rights reserved.
