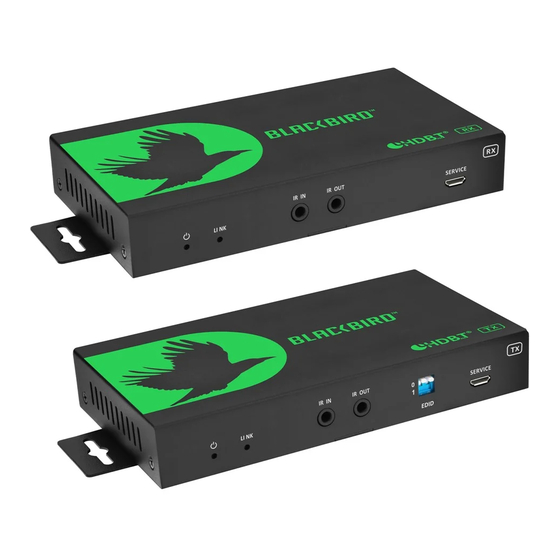

Blackbird™ by Monoprice™
HDBaseT 3.0 Extender 70M 4K60Hz KVM
USB 2.0 / Audio / RS-232
P/N 44571
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird 44571 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monoprice Blackbird 44571

  • Page 1 Blackbird™ by Monoprice™ HDBaseT 3.0 Extender 70M 4K60Hz KVM USB 2.0 / Audio / RS-232 P/N 44571 User Manual...
  • Page 2 Thank You for Purchasing this Product To ensure optimum performance and safety, read the following instructions before connecting, operating, or adjusting the product. Keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.
  • Page 3: Table Of Contents

    • This device ventilates excessive heat through the slots and openings in the case. • Do not block or cover these openings. Ensure that the device is in an open area where it can get sufficient airflow to keep from overheating. •...
  • Page 4: Introduction

    1. Introduction The 18Gbps HDBaseT 3.0 Extender extends uncompressed HDMI signals, RS-232, bi-directional IR, and USB2.0 signals up to 230ft (70m) (4K30/1080P) or 131ft (40m) 4K60 using a single CAT6A cable. It supports video resolution up to 4K2K@60Hz YUV 4:4:4. The Transmitter has HDMI input and audio extraction capabilities;...
  • Page 5: Package Contents

    • Over 3.5mm Analog Audio De-Embedding at TX and RX • EDID Management • Bi-directional RS-232 signal pass-through, bi-directional IR signal • Control, and USB2.0 signal transmission • Compact design for easy and flexible installation 3. Package Contents • 1 × HDBaseT 3.0 Extender (Transmitter) •...
  • Page 6: Operation Controls And Functions

    4. Operation Controls and Functions Transmitter Panel IR IN IR OUT SERVICE LINK EDID HDBaseT OUT HDMI IN USB HOST L/R OUT RS-232 DC 24V ON OFF Name Function Description Power LED The red LED is on when the Transmitter is powered on. ▪...
  • Page 7 Name Function Description SERVICE Firmware update port. HDBaseT output port, connected to the HDBaseT IN port of HDBaseT Receiver with a CAT6A cable. It is used for various signals pass-through. Data Signal ▪ Illuminating: HDMI signal with HDCP. ▪ Flashing: HDMI signal without HDCP. Indicator (Yellow) ▪...
  • Page 8: Receiver Panel

    Receiver Panel IR IN IR OUT SERVICE LINK HDBaseT IN HDMI OUT L/R OUT RS-232 DC 24V ON OFF Name Function Description Power LED Red LED indicates that the Receiver is powered on. ▪ Light on: Transmitter and Receiver are in good connection status.
  • Page 9: Ir Pin Definition

    Name Function Description Data Signal • Illuminating: HDMI signal with HDCP. Indicator • Flashing: HDMI signal without HDCP. (Yellow) • Dark: No HDMI signal. • Illuminating: Transmitter and Receiver are in good Link Signal connection status. Indicator • Flashing: Transmitter and Receiver are in poor (Green) connection status or connected to the same device.
  • Page 10: Application Example

    Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; When the angle between the IR receiver and the remote control is ± 90°, the transmission distance is 0- 8 meters. 5.
  • Page 11: Specifications

    6. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8/10/12-bit HDR, HDR10, HDR10+, Dolby Vision, HLG LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, Audio Format DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD IR Level...
  • Page 12 If you have any problems with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.
  • Page 13 Check the website for support times and links. To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type 44571 into the search bar. If available, support files are linked at the bottom of the product page.
  • Page 14 Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. All other trademarks, registered trademarks, or service marks are the property of their respective owners. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
  • Page 15 1 Pointe Drive, Suite 400 Brea, CA 92821 – USA Product pictures are for reference only. Specifications described herein are subject to change www.monoprice.com without prior notification. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2023 Monoprice, Inc. All rights reserved.
