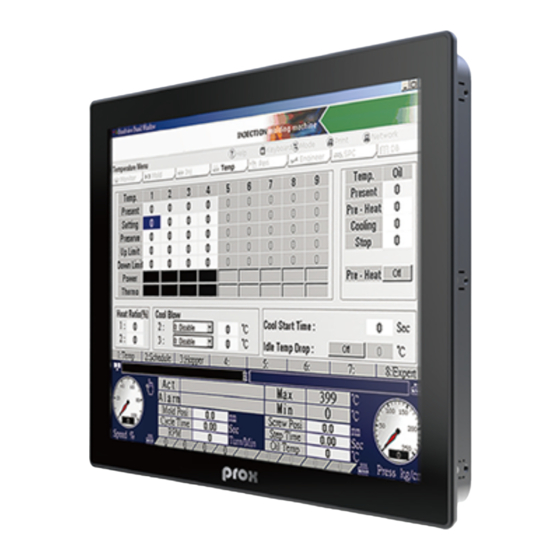

protech prox SP-C155 Quick Reference Manual

SP-C155/
SP-C175
Quick
Reference
Guide
Jumper Setting
JP2
PWM / Analog
Selection
1
Pin Description
1-2 PWM
2-3 Analog
Ver. Q1
All Rights Reserved. Copyright 2019
JP2
3
32
1
31
1
8
J7
CN5
CN2
Specifications
LCD
Customer (2nd) Display
Display Resolution
Brightness
Life time of Backlight lamp
Touch Panel
Dimensions (Panel)
Weight
Viewing Angle
Wall Mount
Power Supply
I/O Ports
VGA
DVI-I
HDMI
USB
Environment
EMC & Safety
Operating Temp.
Storage Temp.
Humidity
10
J6
2
1
J5
JP1
6 4
3
1
CN1
CN4
SP-C155 / SP-C175
SP-C155: 15" XGA LCD
SP-C175: 17" SXGA LCD
SP-C155: LVDS 1024 x 768 dots XGA
SP-C175: LVDS 1280 x 1024 dots SXGA
2
Typ. 450 cd/m (SP-C155) / Typ. 350 cd/m
Min. 50,000 hours (SP-C155 & SP-C175)
P-CAP or Resistive Touch (USB Interface) or N/A
SP-C155: 365 x 280 x 54mm (W x H x D)
SP-C175:
396 x 328 x 54mm (W x H x D)
SP-C155: 3.5kg
SP-C175: 4.4kg
° ° °
Horizontal: -80 ~ 80 , Vertical: -80 ~ 70
VESA Mount 100x100 mm
DC 12V/3.3A/ 40W Power Adapter
(AC Input: 90 ~264 Vac, 47/63Hz)
1 x VGA port
1 x DVI-I port (support DVI-D signals only)
1 x HDMI port
1 x USB port (touch connection)
CE
-20°C ~ 60°C (-4°F ~ 140°F)
-30°C ~ 70°C (-22°F ~ 158°F)
5% ~ 95%
SP-C155 / SP-C175
1
Panel 3.3V / 5V / 12V
J9
Selection
6
J11
1
For SP-C155
J12
6
1
For SP-C175
Pin
1-6
2-5
3-4
2
(SP-C175)
°
JP1
4
3
4
3
Description
3.3V
5V
12V
