Wall Installation On A Standard Wall Plate - VTech t2429 Owner's Manual

Installation
• Press
LIGHT OFF: YES
• Press SELECT to choose the desired setting. You'll hear a confirmation
tone.

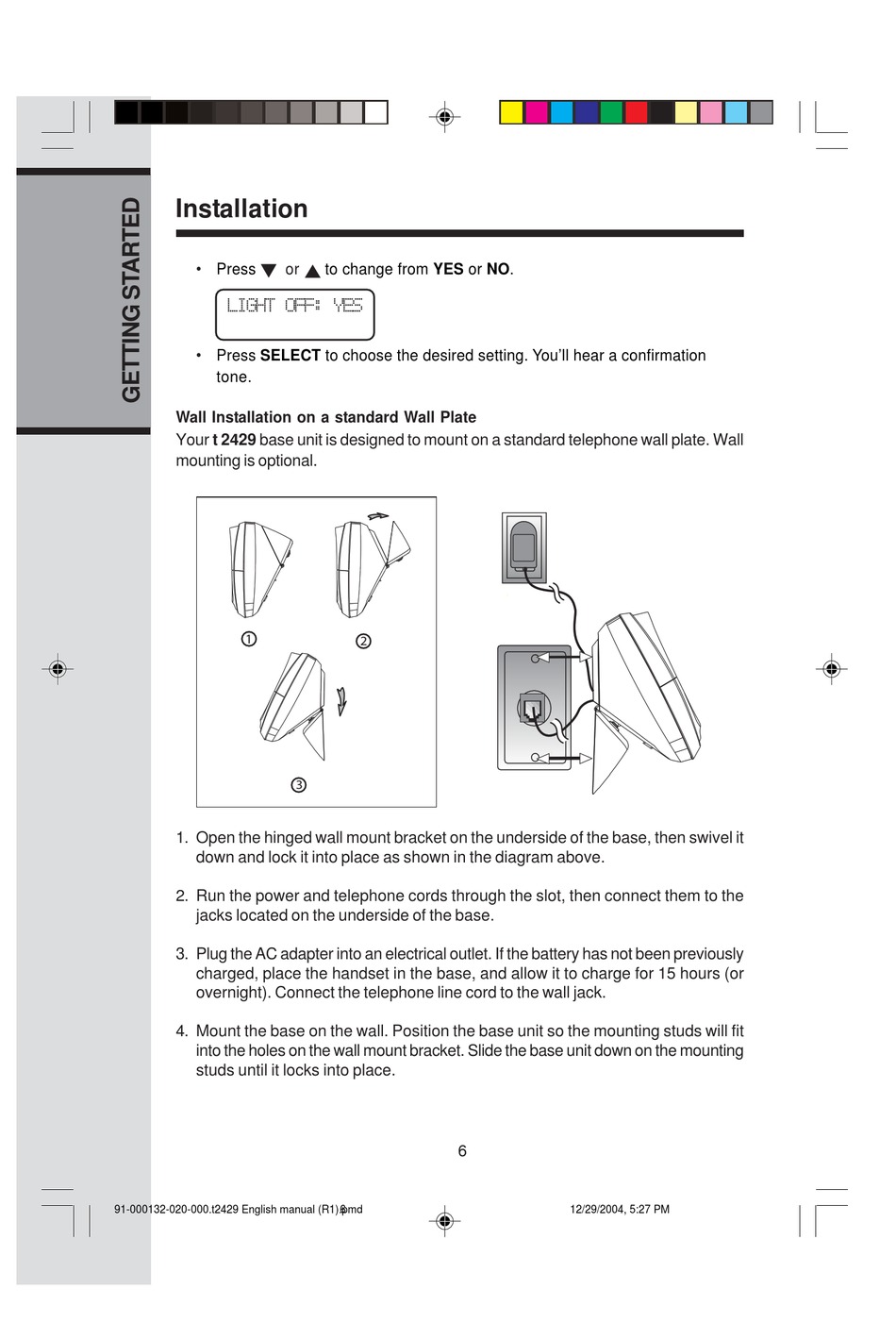

Wall Installation on a standard Wall Plate

Your t 2429 base unit is designed to mount on a standard telephone wall plate. Wall
mounting is optional.
1
1. Open the hinged wall mount bracket on the underside of the base, then swivel it
down and lock it into place as shown in the diagram above.
2. Run the power and telephone cords through the slot, then connect them to the
jacks located on the underside of the base.
3. Plug the AC adapter into an electrical outlet. If the battery has not been previously
charged, place the handset in the base, and allow it to charge for 15 hours (or
overnight). Connect the telephone line cord to the wall jack.
4. Mount the base on the wall. Position the base unit so the mounting studs will fit
into the holes on the wall mount bracket. Slide the base unit down on the mounting
studs until it locks into place.
91-000132-020-000.t2429 English manual (R1).pmd
or to change from YES or NO.
2
3
6
6
12/29/2004, 5:27 PM
