InstallatIon Manual &
operatIon InstructIons
MotorcYcle lIft
APlusLift MT1500 / APlusLift MT1500X
APlusLift MT1500
APlusLift MT1500X

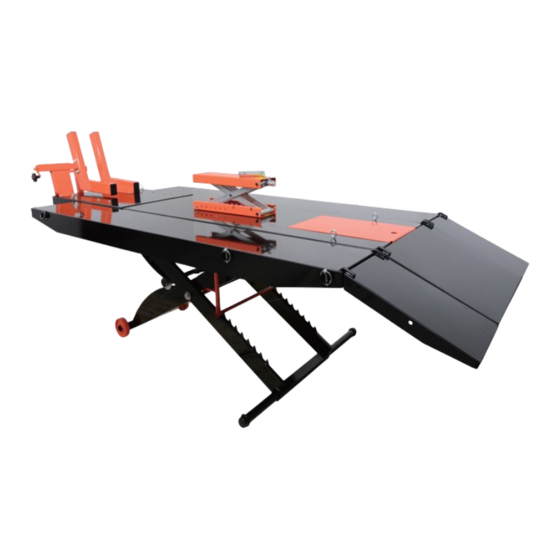

Heavy-Duty Motorcycle Lift w/ Service Jack
1,500 LB. Capacity
feaTures:
•
Drop Tail Design
•
7 Position Safety Locking
system
•
FREE Service Jack
•
FREE Adjustable Front
extension!
•
Includes FREE Front Wheel Vise
& front Wheel stop!
1 Year WarrantY
•
•
More Lifts Available!
Thank You For
Your Purchase!
We reserve the right to make changes in specifications
without notice and without making changes retroactive.
www.apluslift.com
volume: 2017 D/P
(24" x 110" Lift Table)
(48" x 110" Lift Table)
425-209-0838
To help prevent possible serious injury and / or
death, Carefully read this manual and review all
warnings and instructions before use!
Songa Enterprises LLC
8512 122ND AVE NE #25
Kirkland WA 98033
E-mail: apluslift@gmail.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APlusLift MT1500
Summary of Contents for APlusLift MT1500
-
Page 1: Installation
InstallatIon Manual & operatIon InstructIons MotorcYcle lIft APlusLift MT1500 / APlusLift MT1500X APlusLift MT1500 (24” x 110” Lift Table) APlusLift MT1500X (48” x 110” Lift Table) Heavy-Duty Motorcycle Lift w/ Service Jack 1,500 LB. Capacity feaTures: • Drop Tail Design •... - Page 2 APlusLift MT1500 & MT1500X InSTALLATIon Manual Model No.: 1,500 lbs. Capacity: Serial No.: Installation Date: Distributor: Dist. Phone Number: Installer: Installer Phone Number: www.apluslift.com 2 of 24 Questions? Problems? Call Us At 425-209-0838 volume: 2017 D/P...
-
Page 3: Table Of Contents
Introduction / table of contents APlusLift MT1500 & MT1500X InSTALLATIon Manual ( APlusLift MT1500 / APlusLift MT1500X) 1. introduction ..............................4 1.1 Intended use ............................4 1.2 Dimension Diagram ..........................5 1.3 Product Specifications ..........................6 2. General safety ............................... 7 2.1 level of Danger ...........................7 2.2 Hazards / Warnings ..........................7... -
Page 4: Introduction
Read this guide thoroughly before installing or using the machine. This guide contains the instructions for installation, use and maintenance of the APlusLift MT1500 & MT1500X Motorcycle Lift. This machine is operated by pressurized air from an air compressor (not included) to the lift, which delivers the pressure to a heavy air cylinder at the bottom of the platform to provide lifting pressure. -
Page 5: Dimension Diagram
Dimensional Diagram APlusLift MT1500 & MT1500X InSTALLATIon Manual DIMensIons APlusLift MT1500 & MT1500X Side View (Raised): 32½” fuLL rise 7” 110” 20” 97” 84” Center Line: This is the center of the lift. all loads should be center balanced on this line of the lift. Overloading one side... -
Page 6: Product Specifications
APlusLift MT1500 & MT1500X InSTALLATIon Manual The required air supply for the APlusLift MT1500 & MT1500X is the 90 - 110 psi, this lift does not come with its own air compressor and this must be provided. APlusLift MT1500 & MT1500X MOTORCyCLE LIFT... -
Page 7: General Safety
General safety APlusLift MT1500 & MT1500X InSTALLATIon Manual 2.1 level of Danger Whenever you find the following warning sign in this guide, pay the utmost attention and follow the relevant safety rules. attentIon: Read the following directions with the utmost attention. Non-observance of described procedures/practices can cause serious damages to bystanders. 2.2 HaZarDs / WarnInGs IN THE EVENT THE RAISED EQUIPMENT FALLS DO NOT OPERATE A LIFT WITH PEOPLE ON IT. -
Page 8: Safety Instructions
General safety APlusLift MT1500 & MT1500X InSTALLATIon Manual 2.3 safety Instructions The messages and pictures shown are generic in nature and are meant to generally represent hazards common to all automotive lifts regardless of specific style. READ OPERATING AND SAFETY MANUALS BEFORE USING LIFT! DO NOT OPERATE A DAMAGED LIFT! -
Page 9: Safety Warnings
12. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one lift may become hazardous when used on another lift. 13. Service must be performed only by APlusLift authorized qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. - Page 10 Warnings APlusLift MT1500 & MT1500X InSTALLATIon Manual The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur. The operator must understand that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. onlY after carefullY reaDInG all of tHe preceDInG safetY WarnInGs sHoulD You atteMpt to Install or operate tHIs lIft! Improper installation or operation can cause injury or damage! 1. read this installation and operation manual in its entirety before attempting to install the lift.
-
Page 11: Read This Before Installing The Lift
Installation APlusLift MT1500 & MT1500X APlusLift MT1500 & MT1500X InSTALLATIon Manual InSTALLATIon Manual 4.0 reaD tHIs Before InstallInG tHe lIft improper installation can cause injury or damage! 1. read this installation and operation manual in its entirety before attempting to install the lift. -
Page 12: Determine Proper Lift Location
Installation APlusLift MT1500 & MT1500X InSTALLATIon Manual 4.2 asseMBlY InstructIons NOTE: For additional references to the parts listed in the following pages, refer to the Assembly Diagrams on pages 12 - 14. 4.3 Determine the proper lift location: 1. DO not use the Lift on any asphalt surface. Make sure the Lift is used on a dry, oil/grease free, flat, level, concrete surface capable of supporting the weight of the Lift and the equipment. Do not use the Lift on concrete expansion seams or on cracked, defective concrete. -
Page 13: Vise Installation
Next, mount the Fixed Clamp onto the right side of the lift. The APlusLift MT1500 & MT1500X both come with an Adjustable Front Wheel Stop. To install this piece, simply use the pin provider onto the front of the Table Assembly or Front Extension, again depending on which configuration you opt to use for your lift. -
Page 14: Side Extension Installation
InSTALLATIon Manual 4.6 sIDe eXtensIon InstallatIon ( APlusLift MT1500X) The Side Extensions for the APlusLift MT1500X are easily installed. There are 4 Extension Tubes provided for installation which also includes 1 stabilizing bar. The 2 Short Extension Tubes are slid into the holes on the back of the Table Assembly at the opposite end of the vise by the rear Approach Ramp. -
Page 15: Operating Instructions
If the safety lock assembly does not engage, fully lower the Lift and have a APlusLift qualified service technician immediately repair the safety lock assembly or contact your distributor. (Do not use tHe lIft untIl tHe safetY locKInG sYsteM Is WorKInG properlY.) 5.2 to position, lift, and lower equipment on the lift:... -
Page 16: Safety Lock Operation
Instructions APlusLift MT1500 & MT1500X InSTALLATIon Manual 8. To lower the lift, raise the lift up off of the safety lock using the air foot pedal control, then, when the locking bar is free, swing the bar back up to its mounting point underneath the lift. Now that the safety lock is disengaged, you can lower the lift using the air foot pedal control to the ground. -
Page 17: Maintenance Schedule
- cease operation immediately and inspect, correct and/or replace parts as required. Following these maintenance procedures is the key to prolonging the useful life or your lift. We highly recommend using a APlusLift Authorized Technician for all repairs and modifications. -
Page 18: Weekly Maintenance
Check the Cylinder Rod, if it becomes dry, lightly oil it. • Lubricate the grease zerks located at either end of the Pivot Shaft. • Lubricate the grease zerks at the top end of the inside frame assembly. 6.3 six Month annual Maintenance • Lubricate the grease zerks located at either end of the Pivot Shaft. • Lubricate the grease zerks at the top end of the inside frame assembly. • Squirt some oil through the bleed hole in the Plate End of the Cylinder to lubricate the Piston. the following repairs should only be performed by a APlusLift authorized trained maintenance expert: • Replacement of shafts / axles. • Replacement of roll bearings. • Replacement or rebuilding pneumatic/air cylinders. • Checking pneumatic cylinder rods and rod ends (threads) for deformation or damage. • Checking cylinder mounting to make sure its not lose and /or damage. -
Page 19: Diagrams
Diagrams APlusLift MT1500 & MT1500X InSTALLATIon Manual 7.1 parts Breakdown APlus-sj APlus-sec APlus-rse APlus-1039 APlus-W045 APlus-1038 APlus-r APlus-Dot APlus-1037 APlus-rse APlus-se APlus-1036 APlus-1001 APlus-pBt APlus-1035 APlus-sec APlus-1034 APlus-W049 APlus-1033 APlus-se APlus-W045 APlus-afe APlus-sec APlus-pBt APlus-1004 APlus-lpc APlus-1030 APlus-1029 APlus-1028... - Page 20 APlusLift MT1500 & MT1500X Notes InSTALLATIon Manual www.apluslift.com 20 of 24 Questions? Problems? Call Us At 425-209-0838 volume: 2017 D/P...
- Page 21 APlusLift MT1500 & MT1500X Notes InSTALLATIon Manual www.apluslift.com 21 of 24 Questions? Problems? Call Us At 425-209-0838 volume: 2017 D/P...
- Page 22 APlusLift MT1500 & MT1500X Notes InSTALLATIon Manual www.apluslift.com 22 of 24 Questions? Problems? Call Us At 425-209-0838 volume: 2017 D/P...
-
Page 23: Warranty Activation Form
) _____________Fax: ( ) _____________Cell: ( ) _____________ City/State/Province/Zip: _________________________________________________ E-mail: ______________________________________________________________ APlusLift MT1500 & MT1500X Motorcycle Lift Model No.: APlusLift MT1500 & MT1500X Capacity: Serial No.: Date: Purchased From: ____________________________________ Purchase Date: ______ Address: ______________________________________________________________ City: ________________________________State: ___________________ Zip: _____ Office Phone: ( ) ____________________ Cell Phone: ( ) _________________ www.apluslift.com...
