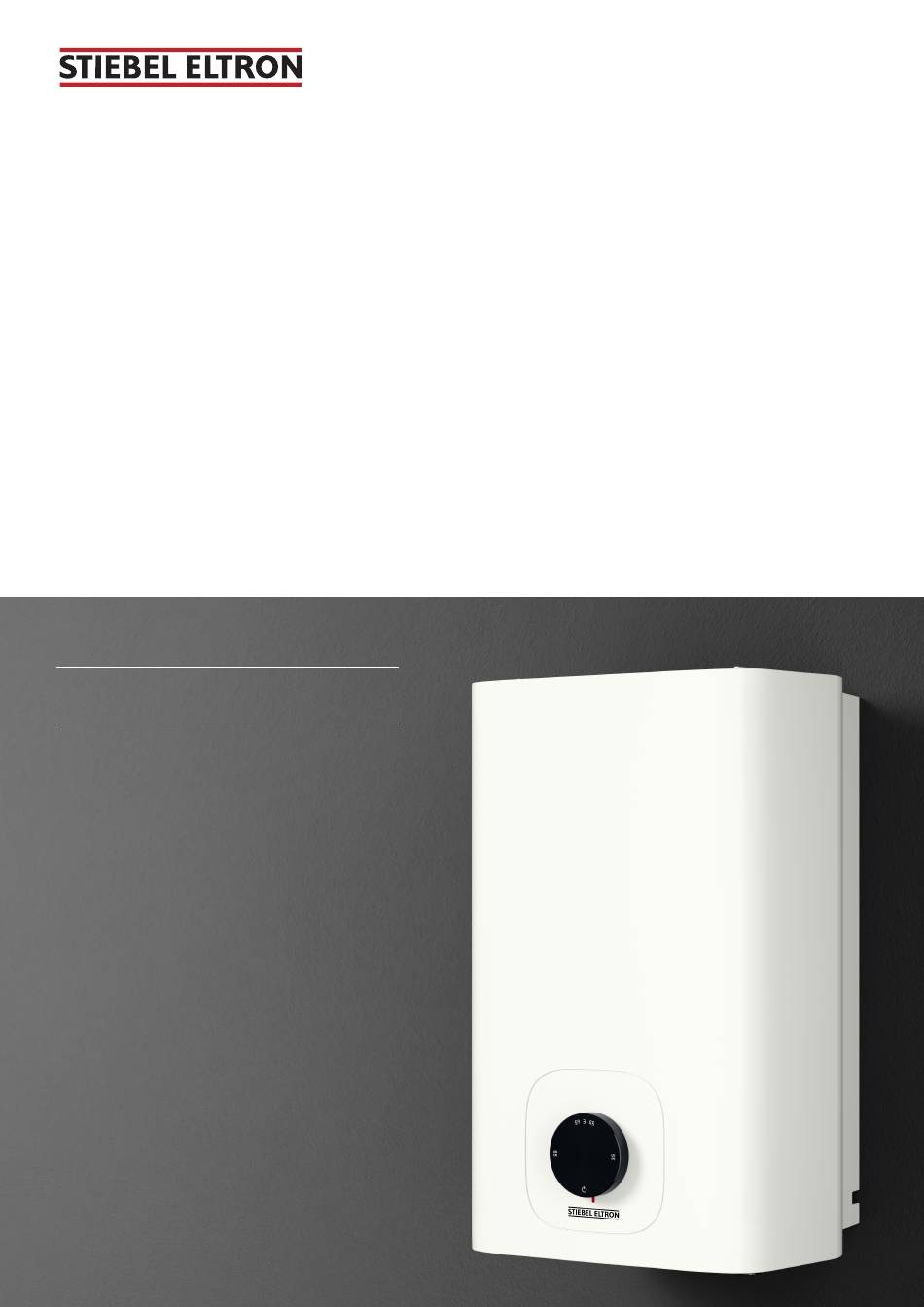

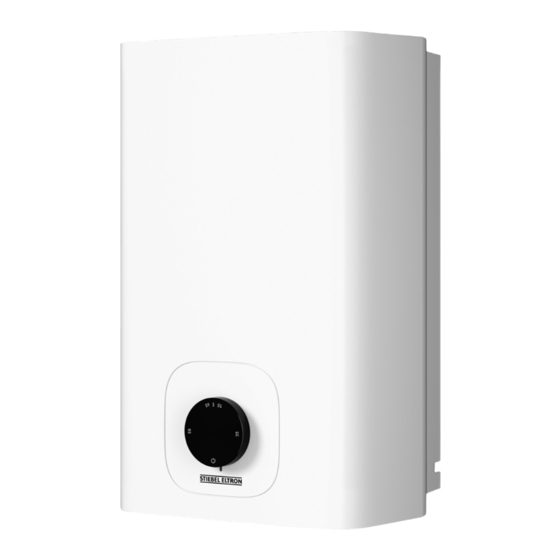

- Page 1 Operation and installation SNO 5 Plus GB SNO 10 Plus GB Small water heater (non- pressurised)
-
Page 2: Table Of Contents
Table of contents 1 Special information ........... 3 2 General information..........3 Test mark ............3 Units of measurement ........3 Do not use any longer | Symbols in this docu- ment ..............3 3 Safety................ 3 Structure of the warning notices....... 3 Intended use ............ -
Page 3: Special Information
Special information Units of measurement Special information All measurements are given in mm unless stated otherwise. – The appliance may be used by children over Do not use any longer | Symbols in this 3 years of age and persons with reduced document physical, sensory or mental capabilities or a lack of experience and expertise, provided... -
Page 4: Intended Use
NOTICE A non-pressurised tap must be used for open vented operation Property damage of the appliance. STIEBEL ELTRON offers a wide range of suit- The appliance is designed for oversink installation. able taps. u During installation, the water connections of the Installation (qualified contractors) appliance must point downwards. -
Page 5: Appliance Installation
Commissioning (qualified contractors) u Match up the colour coding on the tap water connections and the appliance: – R.h. side blue = "Cold water inlet" – L.h. side red = "DHW outlet" u NOTICE: To prevent damage to the internal appliance con- nections, counterhold with a suitable spanner when tight- ening the water connections. -
Page 6: Electrical Connection
Operation Electrical connection Operation WARNING You can set any required hot water outlet temperature variably Electrocution when the appliance is permanently con- at the temperature selector (1). During the heating process, the nected to the mains heat-up and index indicator (2) lights up. When permanently connected to the power supply us- ing a dedicated junction box, the appliance must be able to be isolated from the mains power supply by... - Page 7 Montageschablone | Installation Template...
- Page 8 305 mm...
- Page 10 Montageschablone | Installation Template...
-
Page 11: Opening The Appliance
Lightly shake the appliance to aid draining. Opening the appliance D0000107313 Positioning the temperature sensor in its protective pipe SNO 5 Plus GB D0000107425 u Fully turn the temperature selector anti-clockwise. u When replacing the temperature controller, guide the tem- perature sensor into its protective pipe. -
Page 12: Troubleshooting (Qualified Contractors)
Drain the appliance (see Draining the appliance [} 6] ). 13 Specification 13.1 Dimensions and connections 5 litre appliance D0000107470 13.3 Wiring diagram 1/N/PE | 220 – 240 V SNO 5 Plus GB D0000107434 D0000105875 a10 Appliance Height mm 423 a20 Appliance... -
Page 13: Energy Consumption Data
Guarantee SNU 10 Plus GB SNO 5 Plus SNO 10 Plus GB Mixed water amount 40 °C (10 °C/65 °C) Electrical data Rated voltage 1 Rated voltage 2 Rated voltage 3 Rated output 1 Rated output 2 Rated output 3 Rated current 1 Rated current 2 Rated current 3 Fuse protection 1... - Page 14 Environment and recycling u If a crossed-out waste bin is pictured on the ap- pliance, take the appliance to your local waste and recycling centre or nearest retail take-back point for reuse and recycling. This document is made of recyclable paper. u Dispose of the document at the end of the appli- ance's life cycle in accordance with national reg- ulations.
- Page 15 www.stiebel-eltron.com SNO 5 - 10 Plus GB |...
- Page 16 Co m f o r t t h r o u gh Te c h n o l o g y STIEBEL ELTRON International GmbH Dr.-Stiebel-Straße 33 | 37603 Holzminden | Germany info@stiebel-eltron.com | www.stiebel-eltron.com 4 0 1 7 2 1 3 5 3 2 9 2 7...
