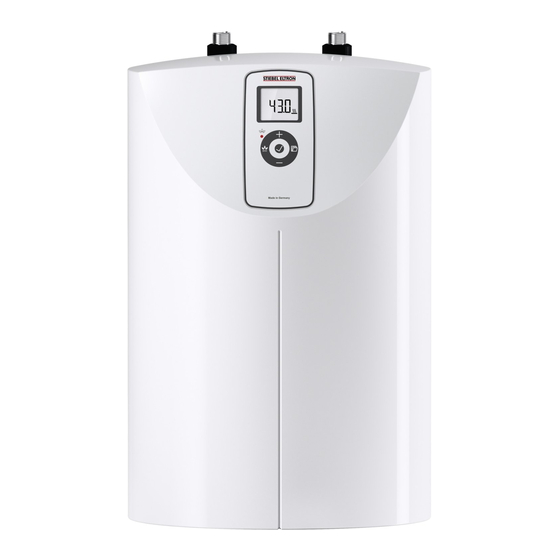

  • Page 1 OPERATION AND INSTALLATION Open vented (non-pressurised) small water heater » SNE 5 t ECO GB...

  • Page 2: Table Of Contents

    Heat-up diagram ������������������������������������������������ 14 - Drain the appliance as described in chapter "In- 15.4 Country-specific approvals and certifications ������������� 14 stallation / Maintenance / Draining the appliance". 15.5 Extreme operating and fault conditions ������������������� 14 | SNE 5 t ECO GB www.stiebel-eltron.com...

  • Page 3: Operation

    Failure to observe this information will result in serious injury or death. WARNING Failure to observe this information may result in serious injury or death. CAUTION Failure to observe this information may result in non-seri- ous or minor injury. www.stiebel-eltron.com SNE 5 t ECO GB|...

  • Page 4: General Safety Instructions

    - To activate/deactivate ECO mode, press and hold the "ECO" button for at least 1 second. Timer mode The appliance is equipped with an integrated time switch that enables timer mode. Three configurable time programs are avail- able for this. | SNE 5 t ECO GB www.stiebel-eltron.com...

  • Page 5: Programming Unit

    Fault (see chapter “Installation / Troubleshooting / Fault list”) Call your qualified contractor. Green LED flashes The appliance was disconnected from the power sup- ply for a long time (approx. 8 hours). Reset the day and time. www.stiebel-eltron.com SNE 5 t ECO GB|...

  • Page 6: Settings

    Timer mode is suspended when ECO mode ("ECO" button) is activated. Note Deactivate ECO mode using the "ECO" button. During initial start-up and following prolonged power supply interruptions (approx. 8 hours), you must set the day of the week and the time. | SNE 5 t ECO GB www.stiebel-eltron.com...
  • Page 7 Activate the required time program in the standard menu (see chapter "Operation / Settings / Standard menu"). Note To reset the selected comfort phases, activate parame- ter P5. f Please note that activating parameter P5 resets all appliance settings to the factory setting. www.stiebel-eltron.com SNE 5 t ECO GB|...

  • Page 8: Cleaning, Care And Maintenance

    To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000-0000-000000). P2 (30 - 85°C) P1 (7 - 55°C) (7 - 55°C) 7°C 30°C 55°C 70°C 85°C | SNE 5 t ECO GB www.stiebel-eltron.com...
  • Page 9 iNSTallaTiON TEmplaTE...
  • Page 11 407mm 407mm 79 mm...
  • Page 12 NOTES...

  • Page 13: Installation

    The following taps are available as accessories for open vented operation: Mixer taps - WST, WUT Mono-lever mixer taps - MEW, MES, MEWC Sensor taps - WSN 8.2.2 Additional accessories - Strainer for the "cold water inlet" connection www.stiebel-eltron.com SNE 5 t ECO GB|...

  • Page 14: Installation

    When tightening the fittings, counterhold with a suitable spanner. The following electrical connections are permissible: SNE 5 t ECO GB Connection to a freely accessible standard socket with matching plug Permanent connection to an appliance junction box with earth conductor | SNE 5 t ECO GB www.stiebel-eltron.com...

  • Page 15: Commissioning

    Check the sensor contacts. Re- Note Sensor short circuit place the sensor if necessary. If the boil-dry protection check has responded, the fault code "E1" is displayed. Any repeat start-up is blocked for 5 minutes. www.stiebel-eltron.com SNE 5 t ECO GB|...

  • Page 16: Maintenance

    Never treat the cylinder surface with descaling agents. f Remove the flanged immersion heater. f Carefully tap the heating element to remove coarse limescale deposits. f Immerse the heating element up to the flange plate in desca- ling agent. | SNE 5 t ECO GB www.stiebel-eltron.com...

  • Page 17: Checks

    14.6 Replacing the power cable The power cable must only be replaced by a qualified contractor SNE 5 t ECO GB with an original spare part. Cold water inlet Male thread...

  • Page 18: Heat-Up Diagram

    G 3/8 A Energy efficiency class Dimensions Energy conversion efficiency Height Annual power consumption Width Default temperature setting °C Depth Sound power level dB(A) Length of connecting cable Daily power consumption 2.260 Weights Weight | SNE 5 t ECO GB www.stiebel-eltron.com...
  • Page 19 This will not affect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations. www.stiebel-eltron.com SNE 5 t ECO GB|...
