Gebrauchs- und MontaGeanleitunG
oPeratinG and installation instructions
notice d'utilisation et de MontaGe
Gebruiks- en MontaGeaanwijzinG
Instrukcja obsługI I montażu
návod k použItí a k montážI
kezelésI és szerelésI utasítás
ИнструкцИя по монтажу И эксплуатацИИ
offener (druckloser) warMwassersPeicher | oPen (Pressureless) water heater |
chauffe-eau ouvert (a écouleMent libre) | oPen (drukloze) warMwaterboiler |
pojemnoścIowe, bezcIśnIenIowe ogrzewacze wody | beztlakový zásobníkový
ohřívač teplé vody | nyItott (nyomás nélkülI) melegvíz tároló |
открытый
(безнапорный) накопИтельный водонагреватель

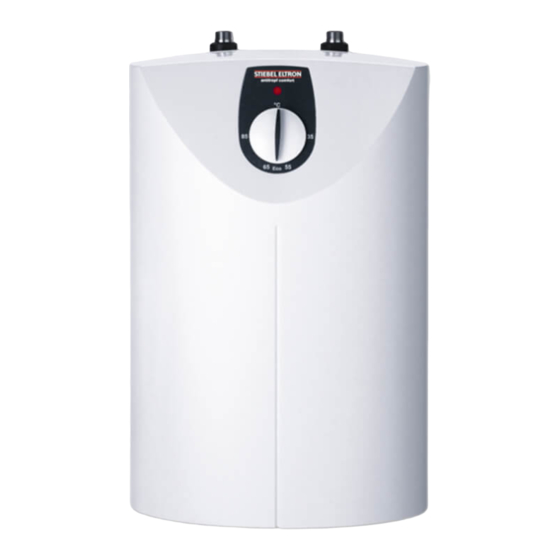

» snu 10 sl comfort
» snu 10 sli comfort
comfort
°C
35
85
65 Eco
55
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STIEBEL ELTRON SNU 10 SL comfort
Summary of Contents for STIEBEL ELTRON SNU 10 SL comfort
-
Page 1: Operating And Installation Instructions
(a écouleMent libre) | oPen (drukloze) warMwaterboiler | pojemnoścIowe, bezcIśnIenIowe ogrzewacze wody | beztlakový zásobníkový ohřívač teplé vody | nyItott (nyomás nélkülI) melegvíz tároló | открытый (безнапорный) накопИтельный водонагреватель » snu 10 sl comfort » snu 10 sli comfort comfort °C 65 Eco... - Page 2 Deutsch Seite 4-7 Nederlands bladzijde 14-16 Magyar oldal 24-26 Inhaltsverzeichnis Inhoudsopgave Tartalomjegyzék 1. Gebrauchsanleitung _________________________4 1. Gebruiksaanwijzing _______________________ 14 1. Kezelési utasítás ___________________________ 24 1.1 Gerätebeschreibung _____________________ 4 1.1 Beschrijving van het toestel _ __________ 14 1.1 A készülék leírása _ ______________________ 24 1.2 Das Wichtigste in Kürze ________________ 4 1.2 In kort bestek ____________________________ 14 1.2 A legfontosabbak röviden _____________ 24 1.3 Bedienung ________________________________ 4 1.3 Bediening ________________________________ 14 1.3 Kezelés ____________________________________ 24 1.4 Wichtige Hinweise _______________________ 4...
- Page 3 295 mm 275 mm G 3/8 70 mm comfort °C 65 Eco 200 mm °C 65 Eco 100 mm °C 65 Eco L N PE 1/N/PE ~ 230 V...
-
Page 4: Operating Instructions
1. Operating Instructions for the user and engineer 1.1 Description of Unit 1.5 Care and Maintenance Mixed water quantity: Using the temperature, you set a mixed water The open (pressure-less) water heater cons- To clean the unit, simply wipe with a damp quantity for e.g. 40 °C. tantly maintains the water content at the pre- cloth. Do not use abrasive or aggressive clea- set temperature. ning agents. [ l ] SNU 10 S L On heating, the expansion water drips through Maintenance work should only be SNU 10 SLi the outlet fitting. performed by an engineer. Only fittings for open (pressureless) water he- 1.6 What to do if . . . ? aters may be installed. We recommend Stiebel Eltron fittings: for order no. see 1.7 „Special ...there is no hot water: accessories”. Check the thermostat, plug and fuse. The “thermostop” function (thermal separati- ...there is a boiling sound from the unit: 40 °C 55 °C E 65 °C 85 °C on) prevents heating of the tempering fitting Have the unit and fitting descaled by an en- in standby mode. -
Page 5: Unit Type
2. Installation Instructions for the engineer 2.5 Important Notes 2.9 Service Notes Installation and electrical connection may only be carried out by an engineer in ac- If this unit is exposed to water pres- Before all work, first isolate the unit cordance with these instructions. sure, the container may leak and from the power supply and remove cause water damage. the unit from the wall. 2.1 Unit Type 1 Temperature selection knob If the water connections on the unit are • Open unit H : 2 Indicator light transposed, the unit will not function and the a Pull off thermostat and temperature res- 3 Cold water connection (blue) components may be damaged. trictor ring. Remove screw. 4 Hot water connection (red) 5 Electrical connection line b Lower locking bolt 2.6 Installation Site 6 Suspension rail c Swivel housing cover aside and remove. -
Page 6: Fault Repair
3. Fault Repair for the user and engineer Fault Cause Rectification Deutsch Polska Português No hot water despite hot water No power. User / Engineer: Check fuses on domestic system. fitting being fully open. 3. Środowisko naturalne i 3. Umwelt und 3. Ambiente e Recycling recykling reciclagem Limescale on jet regulator. User / Engineer: Clean or replace jet regulator on fitting. Entsorgung von Altgeräten Przetwarzanie zużytych urządzeń. Eliminação ao fim da vida útil dos aparelhos Protective temperature restrictor Engineer: Eliminate cause of fault (replace thermostat). Note:... -
Page 7: Elles
Who gives the warranty 1. The warranty is given by Stiebel Eltron (Aust) Pty Ltd (A.B.N. 9.3. The name, address and contact details (such as 82 066 271 083) of 6 Prohasky Street, Port Melbourne, Victoria, phone number and e-mail address) of the owner;... - Page 8 (h) accidental damage; 19. The Stiebel Eltron warranty for the unit is in addition to (i) act of God, including damage by flood, any rights and remedies you may have under the Australian storm, fire, lightning strike and the like;...
- Page 9 Tel. 0180 3 700705 | Fax 0180 3 702015 | info-center@stiebel-eltron.com Kundendienst Tel. 0180 3 702020 | Fax 0180 3 702025 | kundendienst@stiebel-eltron.com STIEBEL ELTRON GmbH & Co. KG Ersatzteilverkauf Tel. 0180 3 702030 | Fax 0180 3 702035 | ersatzteile@stiebel-eltron.com Dr.-Stiebel-Straße | D-37603 Holzminden Vertriebszentren Tel.
