VII. MAIN SCREEN DESCRIPTION
1
2

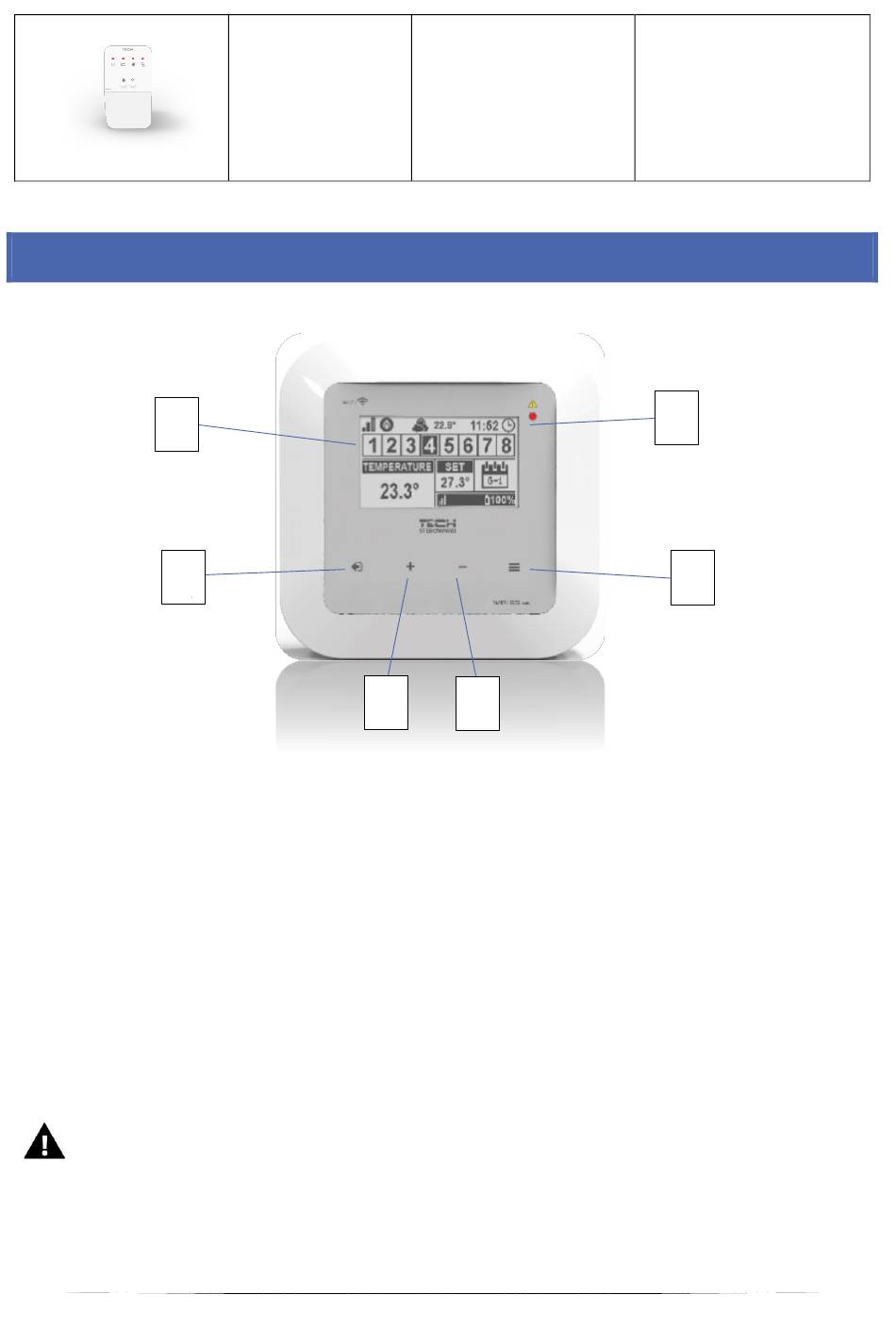

1. Display
2. EXIT – in the main screen view it is used to open up the screen view selection submenu (WiFi or Zones). In the
controller menu it is used to cancel the settings and exit the submenu.
1. PLUS – in the main screen view it is used to view the status of the next zone. In the controller menu it is used to
view the controller functions and increase the value while editing parameters.
2. MINUS - in the main screen view it is used to view the status of the previous zone. In the controller menu it is used
to view the controller functions and decrease the value while editing parameters.
3. MENU – it is used to enter the controller menu and confirm the new settings
4. LED
NOTE
The controller has a motion detection function. When motion is detected within a distance of about 2 cm from
the touch buttons, the controller display will light up.
