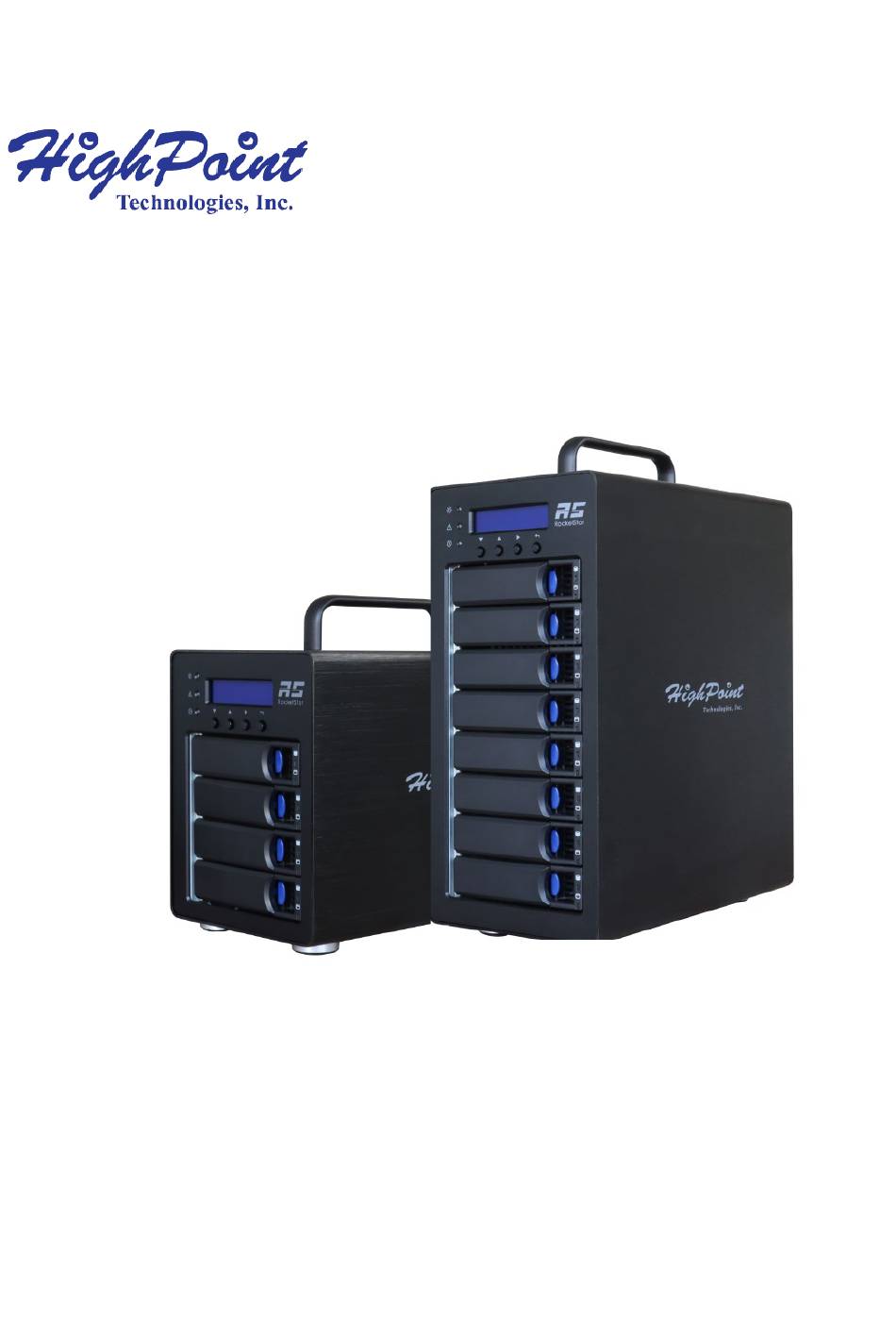

- Page 1 RocketStor 6614V/ 6618V 4-Bay/ 8-Bay Thunderbolt 3 Tower RAID Enclosure Quick Installation Guide V1.00...
-
Page 2: Advanced Features
2x Thunderbolt™ 3 40Gb/s USB-C Ports • Daisy Chain support for up to 6 devices • 4x (RocketStor 6614V) or 8x (RocketStor 6618V) 2.5"/3.5" Hot- Swappable Drive Bays • RAID 0, 1, 5, 10, 50 & JBOD / Non-RAID •... - Page 3 RocketStor 6614V Kit Contents • 1x 4-Bay Enclosure • 4x 3.5 Inch Drive Trays • 1x 40Gb/s Thunderbolt™4 1M cable • 1x UL Power Cord • 20x 3.5" HDD mounting screws • 20x 2.5" SSD mounting screws • 1x Quick Installation Guide RocketStor 6618V Kit Contents •...

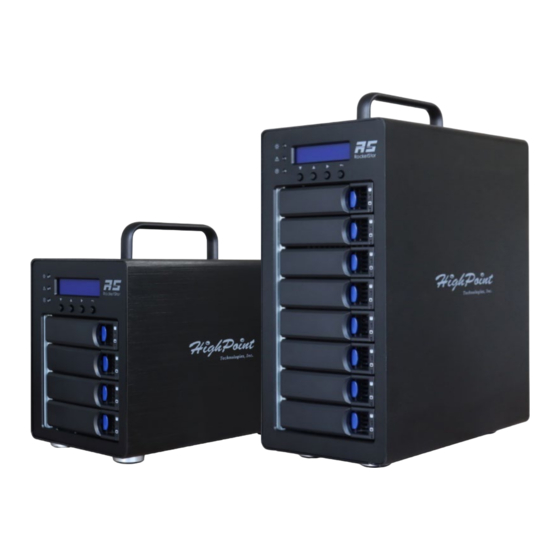

- Page 4 RocketStor 6614V/6618V Hardware Front View RocketStor 6614V RocketStor 6618V...
- Page 5 RocketStor 6614V/6618V Panel Layout The RocketStor 6618V is shown below: Front View Power LED LED display Warning LED Navigation keys Fail LED Disk Active LED Disk Present LED Disk Present LED: Solid Blue Disk Active LED: Flash Blue Power LED: Solid Blue (Normal Status) Warning LED: Flash Yellow.
- Page 6 Fail LED: Red light. The temperature is greater than 60℃, solid red light; the fan speed is less than 500 rpm/min, the red light is flashing, and generates an audible alarm LED display: 16x2 LCD display with user-controlled blue backlight Navigation keys: 4x navigation keys to control Enclosures Fan Speed/Audible Alarm and monitor temperature...
- Page 7 Back View Power supply Power Switch cooling exhaust vent Kensington Lock Slot Mute Button AC Power Input 2x Thunderbolt™4 Body cooling USB-C Connector exhaust vent Ethernet Port Power Switch: Enclosure power switch AC Power Input: Connecting AC power cord Kensington Lock Slot: Use a computer lock through the keyhole to lock the device to prevent theft Mute Button: Mute the internal Enclosure alarm buzzer 2x Thunderbolt™4 USB-C Connector: The 40Gb/s Thunderbolt™4...
-
Page 8: Drive Tray
Drive Tray For 2.5-inch drive For 3.5-inch drive... - Page 9 RocketStor 6614V/6618V Hardware Installation Take RocketStor 6618V as an example Place the RocketStor 6618V on a level surface and remove each drive tray. Carefully insert the SSD or HDD into the drive tray and secure it with the provided mounting screws.
- Page 10 Install each drive tray into the Enclosure. Connect the Enclosure to the host system using the included Thunderbolt™ 4 cable. Connect the Power cable to the rear of the Enclosure and connect it to an AC power source. First switch on the Enclosure power switch (switch to the “ | ” position) to power up the Enclosure, then power up the host system.
- Page 11 When the drives are properly connected and the system is powered on, the front panel of the Enclosure illuminates as shown below. Note: The RocketStor 6614V/6618V connects to the host system via a Thunderbolt™ cable. As a result, the RocketStor 6614V/6618V will automatically power on when the host system...
- Page 12 Resources A variety of manuals, guides and FAQs are available for the RocketStor 6614V/6618V. In addition, we recommend visiting the Software Downloads webpage for the management interfaces, and installation guides. Software Download: https://www.highpoint-tech.com/rs661xv-series FAQ & Troubleshooting: https://www.highpoint-tech.com/support-and-services...
-
Page 13: Customer Support
If you encounter any problems while utilizing the RocketStor 6614V/6618V, or have any questions about HighPoint Technologies, Inc. products & solutions, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2023 HighPoint Technologies, Inc. All rights reserved.
