- Page 1 RocketStor 6124V 4-Bay USB-C SATA RAID Storage Enclosure Quick Installation Guide V1.02...
- Page 2 RocketStor 6124V Overview The RocketStor 6124V utilizes high-performance USB 3.1 Gen 2 Type- C connectivity to directly support up to 4 SATA Hard Drives or SSDs in one or more RAID storage configurations. The ease of use, universal availability and affordability of USB-C connectivity, combined with the robust bandwidth delivered by USB 3.1 Gen 2 technology, make for a...

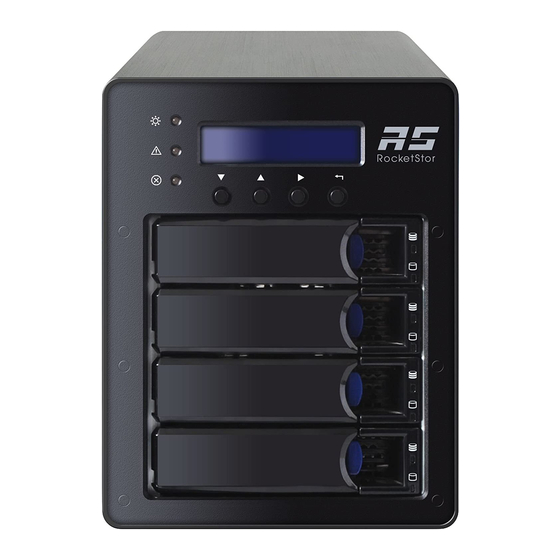

- Page 3 RocketStor 6124V Hardware Panel Layout-Front View Disk Present LED: Solid Blue Disk Active LED: Flash Blue Disk Fail LED: Solid Red Disk Rebuilding LED: Flash Red Disk Identify LED: Flash Blue and Red Enclosure Power LED: Solid Blue Temperature Warning LED:...
-
Page 4: System Requirements
Panel Layout-Rear View System Requirements PC Requirements • Mac or PC System with a USB type C Port • Windows 10 or later • macOS 10.12 or later... - Page 5 Enclosure Setup Place the RocketStor 6124V on a level surface and remove each disk tray. Carefully insert the 3.5” or 2.5” disk into each disk tray and secure them with the provided mounting screws. After installing the hard drives, connect the RocketStor 6124V to a power source.
- Page 6 If prompted by Windows, reboot the system after the driver is installed to complete installation. After reboot the Windows, open Device Manager. A HighPoint USB RAID Controller entry should appear under Storage Controllers Driver Installation for macOS Download the Mac driver package from the HighPoint website: http://highpoint-tech.com/USA_new/series-rs6124v-download.htm...
- Page 7 Follow the on-screen instructions to continue the installation. Reboot the computer when finished. Quickly Setting up a RAID Array An array is a collection of physical disks that will be seen as one virtual drive by your Operating System (OS).To create an array: Log into the WebGUI.
- Page 8 If you encounter any problems while utilizing the RocketStor 6124V, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department or check our FAQ for more information. Web Support: http://www.highpoint-tech.com/websupport/...
