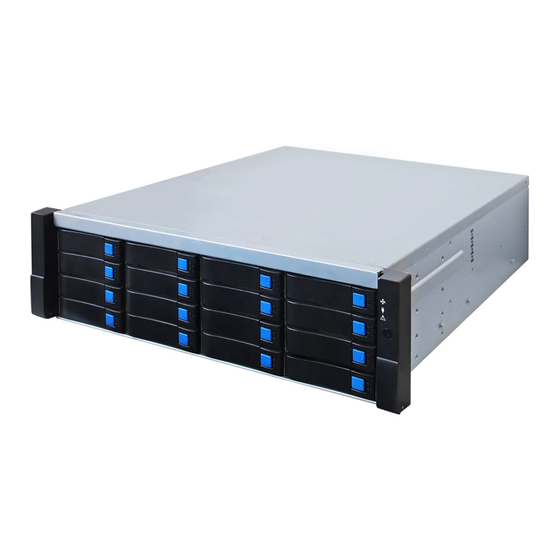

- Page 1 RocketStor 6674T Thunderbolt 16-Bay SATA RAID Storage Enclosure Quick Installation Guide V1.0.0...
- Page 2 Kit Content 1x 16-Bay Enclosure 16x Drive Trays 1x Thunderbolt 40Gb/s Cable 2x UL Power Cord 64x 3.5” HDD Mounting Screws 64x 2.5” SSD Mounting Screws 1x Quick Installation Guide...
- Page 3 Panel Layout-Front View LED Indicators Disk Present: Solid blue LED Active LED: Flashing blue LED Disk Status LED o Solid red LED if disk failure o Flashing red LED if identifying/rebuilding Fan LED: Red LED when internal fan fails ...
-
Page 4: System Requirements
Panel Layout-Rear View System Requirements System with a USB-C port (Thunderbolt Mac OS X 10.10 and later Windows 8 and later Enclosure Setup 1. If using 3.5” HDDs, use the 3.5” mounting screws to connect the HDDs to the tray in the locations shown below... - Page 5 2. If using 2.5” SSDs, please use the 2.5” mounting screws to connect the SSDs to the tray in the locations shown below 3. Connect the RocketStor 6674T to the host system with the Thunderbolt cable, and then connect the RocketStor 6674T to both power receptacles 4.
- Page 6 About this Mac. Then, select the System Report button. 6. Select the PCI tab on the left and double check the RocketRAID 840A SATA Controller is detected to ensure the driver is installed Setting up the RocketStor 6674T (Windows) 1. Go to http://www.highpoint-tech.com/USA_new/series-rs6674t- download.htm...
- Page 7 2. Enter the RocketStor_Manager_Win folder and run the HighPointRocketStor Management.exe file to install the HighPointRocketStor Manager, which allows you to analyze the RAID array 3. Enter the Windows driver folder and run the setup.exe application 4. After installation, restart your computer 5.
- Page 8 Customer Support If you encounter any problems with the RocketStor 6674T or have any questions regarding this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department Web Support: http://www.highpoint-tech.com/websupport HighPoint Technologies, Inc. Website http://www.highpoint-tech.com...
