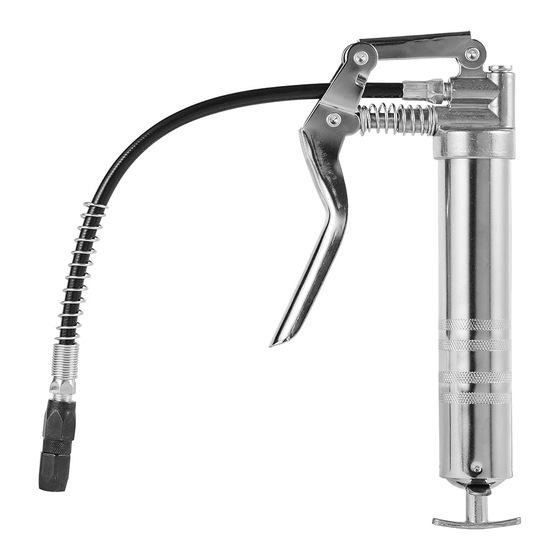

GREASE GUN
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LD-868 and is the answer not in the manual?

Questions and answers

Summary of Contents for VEVOR LD-868

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support GREASE GUN USER MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 3: General Safety Rules

    1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. 2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury.
  • Page 4 regarded as use that is contrary to the intended purpose. The operator is responsible for damages resulting from use other than the intended use. CAUTION: Excess pressure can result in the bursting of the grease gun head and of accessories! Excess pressure at the greasing point can damage the grease nipple and even the machine.
  • Page 5 MODEL AND PARAMETERS Model LD-867A LD-867B LD-2710 LD-868 Capacity 400CC 400CC 600CC 120CC Maximum 6000PSI 6000PSI 10000PSI 3500PSI Pressure Grease gun NPT 1/8 NPT 1/8 NPT 1/8 NPT 1/8 discharge connection Cartridge Cartridge Cartridge Cartridge Loading Loading Loading Loading Grease Filling...
  • Page 6: Structure Diagram

    STRUCTURE DIAGRAM LD-867A,LD-867B 1. Head 2. Air Release Valve 3. Movable Handle 4. Fix Handle 5. Barrel 6. Safety Catch 7. Plunger Rod Handle 8. End Cap - 5 -...
  • Page 7 LD-2710 1. Head 2. Air Release Valve 3. Handle 4. Safety Catch 5. Plunger Rod Handle 6. End Cap 7. Barrel - 6 -...
  • Page 8 LD-868 1. Head 2. Handle 3. Barrel 4. Plunger Rod Handle 5. Safety Catch - 7 -...
  • Page 9 COMPONENTS Mode LD-867A LD-867B LD-2710 LD-868 Parts Grease Gun Grease Hose Straight Metal Pipe Bent Metal Pipe Coupler Pointed Coupler Locking Clamp Coupler Cleaning Cloth Leakproof cap Reinforced Nozzle Grease Cartridge User Manual - 8 -...
  • Page 10 OPERATING INSTRUCTIONS Step1: Hold the head of the grease gun and unscrew the barrel. Take LD-2710 as an example. Step2: Pull back the plunger rod handle and fill the barrel with grease. Grease filling options: Cartridge Loading: Remove the plastic cap from the cartridge and insert the open end of the cartridge into the grease gun...
  • Page 11 Suction Fill: Insert the open end of the barrel about 2” into the grease container.Slowly pull the plunger rod handle to draw in grease into the empty barrel while pushing the barrel deeper into the grease until the plunger rod is completely extended.The outside surface may have a lot of grease stuck to it and should be wiped clean for...
  • Page 12 Step4: Exhaust air by pressing the air release valve or loosening the gun head and barrel (half a turn maximum) or by repeatedly actuating the handle. Step5: Install the required fittings as required as shown below.(Fig 1,Fig 2, Fig 3) Note: If necessary, wrap 3~5 loops of raw material tape around the joint.
  • Page 13 Once greasing is done, slightly tilt the coupler, twist and pull back. The tilt and twist action will allow easy removal of the coupler from the grease fitting. Above are the LD-2710 operations.The operations of the LD-868, LD-867A,LD-867B are the same as that of LD-2710. - 12 -...
  • Page 14: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Possible Solution Air is trapped in grease Empty air Blocked hose Clean or replace the Grease gun pumps little hose or no grease Store grease gun and Grease too thick or cold grease away from extreme cold or use thinner grease Excessive grease leaks out from the back side of...
  • Page 15: Maintenance
