OSP Home Furnishings RV938 Assembly Instructions Manual

Desk
Hide thumbs

Advertisement

Quick Links

Download this manual
April, 2023

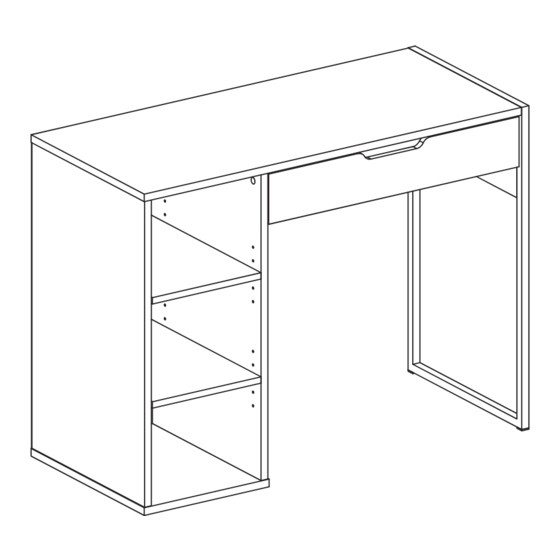

RV938
DESK
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RV938 and is the answer not in the manual?

Questions and answers

Related Manuals for OSP Home Furnishings RV938

Summary of Contents for OSP Home Furnishings RV938

  • Page 1 April, 2023 RV938 DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...

  • Page 2: Limited Warranty

    1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: ®...
  • Page 3 PARTS (A) Top Panel (1 PC) (B) Left Side Panel (1 PC) (C) Divider Panel (1 PC) (D) Right Frame (1 PC) (E) Bottom Panel (1 PC) (F) Shelf (2 PCS) (G) Right Cross Rail (1 PC) (H) Left Back Rail (2 PCS) (I) Right Back Panel (1 PC) (J) Left Back Panel (1 PC)

  • Page 4: Important Note

    PARTS (K) Front Drawer Panel (1 PC) (L) Drawer Left Side Panel (1 PC) (M) Drawer Right Side Panel (1 PC) (N) Drawer Back Panel (1 PC) (O) Drawer Bottom Panel (1 PC) (P) Drawer Support (1 PC) IMPORTANT NOTE: Use hand tools only for assembly as power tools may cause damage.

  • Page 5: Hardware List

    HARDWARE LIST DRAWING DESCRIPTION QUANTITY Screw 12 PCS + 2 EXTRA Screw 20 PCS + 2 EXTRA Screw 10 PCS + 2 EXTRA Cam Screw 4 PCS + 1 EXTRA Cam Screw 5 PCS + 1 EXTRA Cam Screw 17 PCS + 2 EXTRA Cam Nut 4 PCS +1 EXTRA Cam Nut...
  • Page 6 STEP 1 (10) FULLY TIGHTEN CAM SCREWS (6). STEP 2 (11) (10) (11) FULLY TIGHTEN CAM SCREWS (6) & SCREWS (1).
  • Page 7 STEP 3 (10) STEP 4 (13) FULLY TIGHTEN CAM SCREWS (5 & 6) AND SCREWS (1).
  • Page 8 STEP 5 (15) FULLY TIGHTEN CAM NUTS (8). STEP 6 (15) FULLY TIGHTEN CAM NUTS (8).

  • Page 9: Finished Edge

    STEP 7 FULLY TIGHTEN SCREWS (3). STEP 8 FINISHED EDGE (15) FULLY TIGHTEN CAM NUTS (8).
  • Page 10 STEP 9 FULLY TIGHTEN CAM SCREWS (6). STEP 10 (15) FULLY TIGHTEN CAM NUTS (8).
  • Page 11 STEP 11 (15) FULLY TIGHTEN CAM NUTS (8). STEP 12 DETAIL A ALIGN LEFT BACK PANEL (J) TO ASSEMBLY (SEE DETAIL A). FULLY TIGHTEN SCREWS (2).
  • Page 12 STEP 13 FINISHED EDGE (16) STEP 14 FULLY TIGHTEN CAM LOCK SCREWS (4).
  • Page 13 STEP 15 (15) (7) FULLY TIGHTEN CAM NUTS (7). STEP 16...
  • Page 14 STEP 17 FULLY TIGHTEN SCREWS (3). STEP 18 (14) (14) (12) (12) FULLY TIGHTEN SCREWS (1).
  • Page 15 STEP 19...
