CS-100/P2002 Series
User Manual
Industrial Panel PC
High Performance Sunlight Readable Panel PC
Version: V1.41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-112HC/P2002 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CS-112HC/P2002 Series

Summary of Contents for Cincoze CS-112HC/P2002 Series

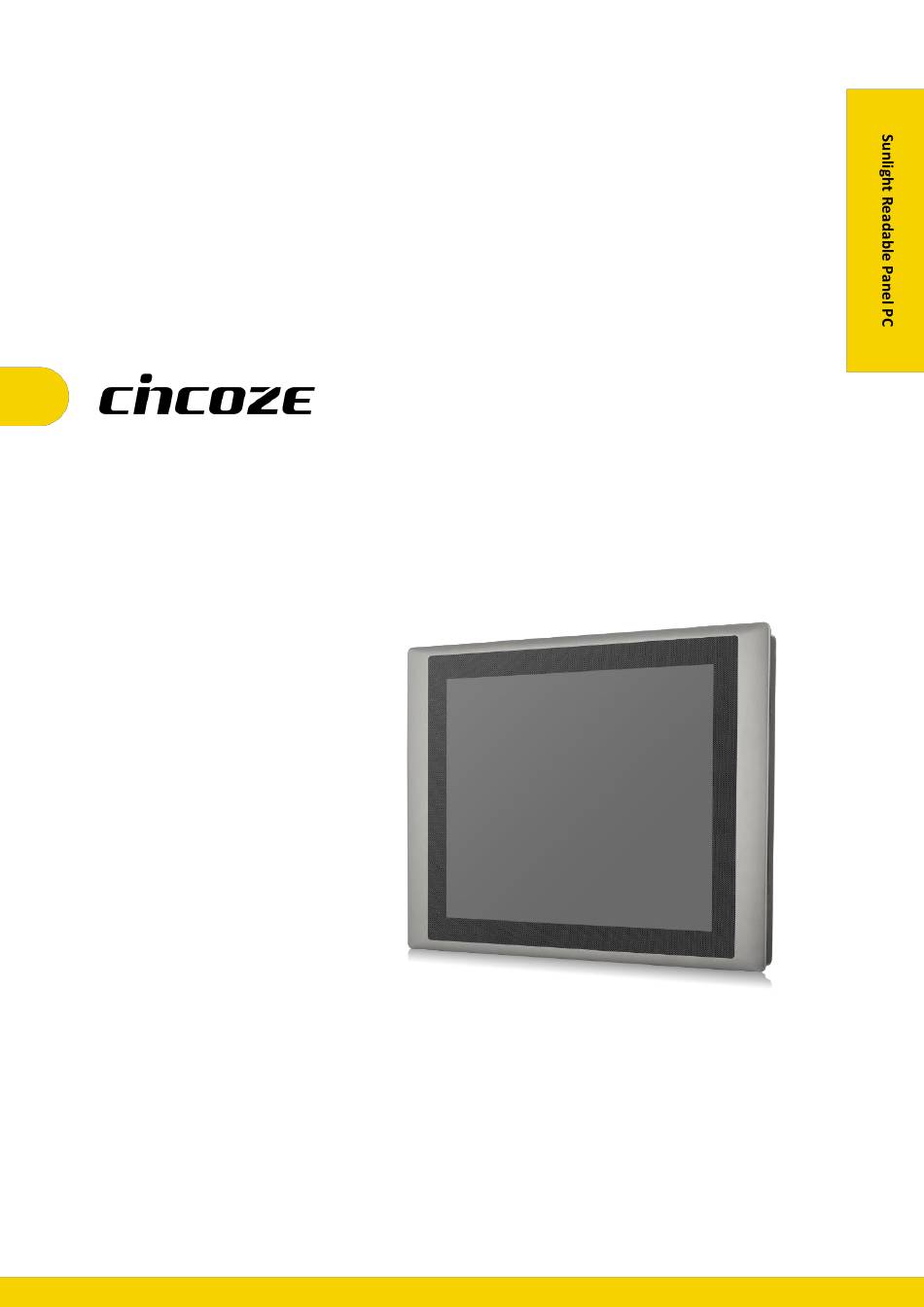

  • Page 1 CS-100/P2002 Series User Manual Industrial Panel PC High Performance Sunlight Readable Panel PC Version: V1.41...

  • Page 2: Table Of Contents

    1.2 Highlights..........................15 1.3 Product Pictures ........................16 1.4 Key Features ........................... 16 1.5 Hardware Specification ......................17 1.5.1 CS-112HC/P2002 Series ....................17 1.5.2 CS-115C/P2002 Series ....................22 1.5.3 CS-117C/P2002 Series ....................27 1.5.4 CS-119C/P2002 Series ....................32 1.5.5 CS-W121C/P2002 Series ..................... 37 1.5.6 CS-W124C/P2002 Series .....................
  • Page 3 3.1 Removing Top Cover....................... 64 3.2 Installing Half Size Mini PCIe Card ..................65 3.3 Installing Full Size Mini PCIe Card ..................67 3.4 Installing mSATA Card ......................68 3.5 Installing Antenna(s) ......................69 3.6 Installing SO-DIMM Memory ....................71 3.7 Installing PCI(e) Card ......................
  • Page 4 4.6 Boot Setup ..........................113 4.7 Save & Exit ..........................114 Chapter 5 Product Application ......................115 5.1 Digital I/O (DIO) application ....................116 5.1.1 Digital I/O Programming Guide ................. 116 5.2 Digital I/O (DIO) Hardware Specification ................124 CS-100/P2002 Series | User Manual...

  • Page 5: Preface

    2024/02/07 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual This indication alerts operators to an operation that, if not strictly observed, may result in severe injury. (Cette indication avertit les opérateurs d'une opération qui, si elle n'est pas strictement observée, peut entraîner des blessures graves.) This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.
  • Page 9 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫ The power cord or plug is damaged. ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Screw Pack Power Terminal Block Connector Fan Terminal Block Connector DIO Terminal Block Connector Power On/Off Terminal Block Connector Panel Mounting Kit(The quantity varies with the size of the display module, please refer to the datasheet for the actual quantity) Note: Notify your sales representative if any of the above items are missing or damaged.
  • Page 11 Slot 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® CS-115C/P2002-i5 Core™ i5-6300U Processor and P-Cap. Touch 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® CS-115C/P2002E-i5 Core™ i5-6300U Processor, P-Cap. Touch and 1x Reserved Expansion Slot 15"...
  • Page 12 Slot1x PCIex4 Expansion 17" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® CS-117C/P2002E-i3-PI Core™ i3-6100U Processor, P-Cap. Touch and 1x PCI Expansion Slot 19" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® CS-119C/P2002-i5 Core™ i5-6300U Processor and P-Cap. Touch 19"...
  • Page 13 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch CS-W121C/P2002E-i3 and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch CS-W121C/P2002E-i3-E4 and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion 21.5"...

  • Page 14: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CS-100/P2002 Series | User Manual...

  • Page 15: Overview

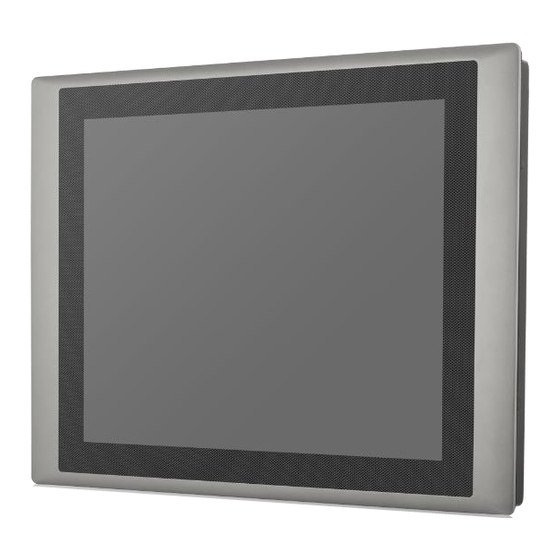

    1.1 Overview CS-100/P2002 Series is a TFT-LCD sunlight readable touch panel PC offering ultra-high brightness and high resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE.

  • Page 16: Product Pictures

    1.3 Product Pictures 1.4 Key Features ⚫ 12.1” ~ 24” TFT LCD with Ultra High Brightness up to 1,600nits ⚫ Onboard Intel® 6th Generation Core™ Processor U Series (15W) ⚫ Supports 2x DDR4 SO-DIMM Socket, up to 32 GB ⚫ Integrated Intel®...

  • Page 17: Hardware Specification

    1.5 Hardware Specification 1.5.1 CS-112HC/P2002 Series Model Name CS-112HC Display • 12.1" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness (cd/m2) • 700 : 1 Contract Ratio • 16.7M LCD Color • 0.24 (H) x 0.24 (V) Pixel Pitch •...
  • Page 18 • Intel® HD Graphics 520 Graphics Engine • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DVI-D) Maximum Display Output • 1x VGA Connector (Up to 1920 x 1080 @ 60Hz), DB-15 • 1x DVI-D Connector (Up to 1920 x 1080 @ 60Hz) DVI-D Audio •...
  • Page 19 • 4x Antenna Hole Antenna Hole Other Function • Realtek® ALC888, High Definition Audio Audio Codec • Support Instant Reboot Technology (0.2 sec) Instant Reboot • LCD On/Off, Brightness Up, Brightness Down for CDS Display Module OSD Function • AMP 2W + 2W Internal Speaker •...
  • Page 20 (with SSD, according to IEC60068-2-64) * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2002 Series | User Manual...
  • Page 21 Dimensions CS-112H/P2002 Dimensions CS-112HC/P2002E CS-100/P2002 Series | User Manual...

  • Page 22: Cs-115C/P2002 Series

    1.5.2 CS-115C/P2002 Series Model Name CS-115C Display • 15" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1800 Brightness (cd/m2) • 800 : 1 Contract Ratio • 16.2M LCD Color • 0.297 (H) x 0.297(V) Pixel Pitch • 160 / 150 Viewing Angle •...
  • Page 23 Model Name P2002 P2002E System • Onboard 6th Intel® Core™ U processors (Skylake) Processor - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W • 2x DDR4 2133 MHz SO-DIMM Sockets Memory •...
  • Page 24 • 1x PCI or 1x PCIex4 Expansion slot • Optional Riser Card: 1x PCI, 1x PCIex4 PCI Express • Support maximum dimension of add-on card (H x L): 111mm x 202mm • 2x Full-size Mini-PCIe Socket Mini PCI Express • 1x SIM Socket SIM Socket •...
  • Page 25 (with SSD, according to IEC60068-2-64) * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2002 Series | User Manual...
  • Page 26 Dimensions CS-115C/P2002 CS-115C/P2002E CS-100/P2002 Series | User Manual...

  • Page 27: Cs-117C/P2002 Series

    1.5.3 CS-117C/P2002 Series Model Name CS-117C Display • 17" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1500 Brightness (cd/m2) • 800 : 1 Contract Ratio • 16.7M LCD Color • 0.264 (H) x 0.264 (V) Pixel Pitch •...
  • Page 28 Model Name P2002 P2002E System • Onboard 6th Intel® Core™ U processors (Skylake) Processor - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W • 2x DDR4 2133 MHz SO-DIMM Sockets Memory •...
  • Page 29 • 1x PCI or 1x PCIex4 Expansion slot • Optional Riser Card: 1x PCI, 1x PCIex4 PCI Express • Support maximum dimension of add-on card (H x L): 111mm x 202mm • 2x Full-size Mini-PCIe Socket Mini PCI Express • 1x SIM Socket SIM Socket •...
  • Page 30 (with SSD, according to IEC60068-2-64) * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2002 Series | User Manual...
  • Page 31 Dimensions CS-117C/P2002 CS-117C/P2002E CS-100/P2002 Series | User Manual...

  • Page 32: Cs-119C/P2002 Series

    1.5.4 CS-119C/P2002 Series Model Name CS-119C Display • 19" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1600 Brightness (cd/m2) • 1000 : 1 Contract Ratio • 16.7M LCD Color • 0.294 (H) x 0.294 (V) Pixel Pitch •...
  • Page 33 Model Name P2002 P2002E System • Onboard 6th Intel® Core™ U processors (Skylake) Processor - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W • 2x DDR4 2133 MHz SO-DIMM Sockets Memory •...
  • Page 34 • 1x PCI or 1x PCIex4 Expansion slot • Optional Riser Card: 1x PCI, 1x PCIex4 PCI Express • Support maximum dimension of add-on card (H x L): 111mm x 202mm • 2x Full-size Mini-PCIe Socket Mini PCI Express • 1x SIM Socket SIM Socket •...
  • Page 35 (with SSD, according to IEC60068-2-64) * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2002 Series | User Manual...
  • Page 36 Dimensions CS-119C/P2002 CS-119C/P2002E CS-100/P2002 Series | User Manual...

  • Page 37: Cs-W121C/P2002 Series

    1.5.5 CS-W121C/P2002 Series Model Name CS-W121C Display • 21.5” (16:9) LCD Size • 1920x1080 (Full HD) Max. Resolution • 1000 Brightness (cd/m2) • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.24825 (H) x 0.24825 (V) Pixel Pitch •...
  • Page 38 Model Name P2002 P2002E System • Onboard 6th Intel® Core™ U processors (Skylake) Processor - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W • 2x DDR4 2133 MHz SO-DIMM Sockets Memory •...
  • Page 39 • 1x PCI or 1x PCIex4 Expansion slot • Optional Riser Card: 1x PCI, 1x PCIex4 PCI Express • Support maximum dimension of add-on card (H x L): 111mm x 202mm • 2x Full-size Mini-PCIe Socket Mini PCI Express • 1x SIM Socket SIM Socket •...
  • Page 40 (with SSD, according to IEC60068-2-64) * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2002 Series | User Manual...
  • Page 41 Dimensions CS-W121C/P2002 CS-W121C/P2002E CS-100/P2002 Series | User Manual...

  • Page 42: Cs-W124C/P2002 Series

    1.5.6 CS-W124C/P2002 Series Model Name CS-W124C Display • 24” (16:9) LCD Size • 1920x1080 Max. Resolution • 1500 Brightness (cd/m2) • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.27675 (H) x 0.27675 (V) Pixel Pitch • 178/178 Viewing Angle •...
  • Page 43 Model Name P2002 P2002E System • Onboard 6th Intel® Core™ U processors (Skylake) Processor - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W • 2x DDR4 2133 MHz SO-DIMM Sockets Memory •...
  • Page 44 • 1x PCI or 1x PCIex4 Expansion slot • Optional Riser Card: 1x PCI, 1x PCIex4 PCI Express • Support maximum dimension of add-on card (H x L): 111mm x 202mm • 2x Full-size Mini-PCIe Socket Mini PCI Express • 1x SIM Socket SIM Socket •...
  • Page 45 (with SSD, according to IEC60068-2-64) * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2002 Series | User Manual...
  • Page 46 Dimensions CS-W124C/P2002 CS-W124C/P2002E CS-100/P2002 Series | User Manual...

  • Page 47: System I/O

    1.6 System I/O 1.6.1 Front DC IN USB 3.2 GEN1 Used to plug a DC power input with terminal block Used to connect to USB 3.2 GEN1/2.0/1.1 DVI-D compatible devices Used to connect to a monitor with digital signal USB 2.0 interface Used to connect to USB 2.0/1.1 compatible devices Digital I/O Terminal Block...

  • Page 48: Rear

    1.6.2 Rear CFast and SIM Card Power On/Off Switch CFast card and SIM card slot Power-on or power-off the system HDD/SSD 2.5” SATA HDD/SSD Bay, Support RAID 0/1 1.6.3 Left Antenna Hole Power LED Used to connect an antenna for optional Mini-PCIe Indicates the power status of the system WiFi module HDD LED...

  • Page 49: Right

    1.6.4 Right Antenna Hole Used to connect an antenna for optional Mini-PCIe Used to connect to RS-232/422/485 serial devices WiFi module CS-100/P2002 Series | User Manual...

  • Page 50: Chapter 2 Switches & Connectors

    Chapter 2 Switches & Connectors CS-100/P2002 Series | User Manual...

  • Page 51: Location Of The Switches/Connectors

    2.1 Location of the Switches/Connectors 2.1.1 Top View CS-100/P2002 Series | User Manual...

  • Page 52: Bottom View

    2.1.2 Bottom View CS-100/P2002 Series | User Manual...

  • Page 53: Definition Of Switches/Connectors

    2.2 Definition of Switches/Connectors List of Jumpers/Switches/Connectors Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease CFAST1 CFast Connector COM3~6 with Power Select COM1_1, COM2_1, COM3_1 RS232 / RS422 / RS485 Connector COM4_1, COM5_1, COM6_1 Function setting DC_IN1...

  • Page 54: Definition Of Switches

    2.3 Definition of Switches Super CAP Function Setting: Pin Define SW2 Switch Switch mode Function Super CAP Enable (Default) Disable Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function CMOS Clear CMOS Normal (Default) COM1/2 Voltage Function Setting : Pin Define SW2 Switch Switch mode Function ON/ON (Default)
  • Page 55 COM3/4/5/6 Voltage Function Setting : Pin Define SW1 Switch Switch mode Function ON/ON (Default) COM3 ON/OFF OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right)
  • Page 56 BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System CS-100/P2002 Series | User Manual...

  • Page 57: Definition Of Connectors

    2.4 Definition of Connectors COM1_1/COM2_1/(COM3_1/COM4_1/COM5_1/COM6_1 on the BTB Board): RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Definition Full Duplex Half Duplex Definition Definition DATA - DATA + DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN...
  • Page 58 LED1: Power / HDD Access LED Status LED Status LED Color Yellow POWER Green POWER3: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X3 3-pin, 3.5mm pitch Definition +12V...
  • Page 59 CN1: Mini PCI-Express Socket (SIM Card to Link) Pin Definition Pin Definition Pin Definition WAKE# RESERVED +3.3V +3.3V USB_D+ RESERVED PERST# PERN0 +3.3V +1.5V +3.3V CLKREQ# PERN0 RESERVED SIM_DATA +1.5V REFCLK+ SIM_CLK SMB_CLK +1.5V REFCLK+ PETN0 SIM_RESET SMB_DATA PETP0 SIM_VPP +3.3V USB_D- CS-100/P2002 Series | User Manual...
  • Page 60 CN2: Mini PCI-Express Socket / mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D- CS-100/P2002 Series | User Manual...
  • Page 61 CN3: mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- CS-100/P2002 Series | User Manual...
  • Page 62 Power Ignition Setting (CFM-IGN100 Only) Connector Location Definition Ignition Function Setting 24V_12V_1 24V/ 12V Power Switching for Ignition Board IGN Board Pin define (CFM-IGN100 Only) SW2: Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second...

  • Page 63: Chapter 3 System Setup

    Chapter 3 System Setup CS-100/P2002 Series | User Manual...

  • Page 64: Removing Top Cover

    This chapter takes P2002E as an example to demonstrate the installation of hardware components. 3.1 Removing Top Cover In order to prevent electric shock or system damage, must turn off power and disconnect the unit from power source before removing the chassis cover. (Afin d'éviter tout risque d'électrocution ou d'endommagement du système, vous devez couper l'alimentation et débrancher l'appareil de la source d'alimentation avant de retirer le couvercle du châssis.)

  • Page 65: Installing Half Size Mini Pcie Card

    Place the top cover aside gently. 3.2 Installing Half Size Mini PCIe Card Locate the Mini PCIe slot. Use provided two screws on bracket to fasten the module and bracket together. CS-100/P2002 Series | User Manual...
  • Page 66 Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. ° Press down the module and use the two screws to fix the module. CS-100/P2002 Series | User Manual...

  • Page 67: Installing Full Size Mini Pcie Card

    3.3 Installing Full Size Mini PCIe Card 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° 3.

  • Page 68: Installing Msata Card

    3.4 Installing mSATA Card Locate the mSATA slot on the system board. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Fasten the card with two screws. CS-100/P2002 Series | User Manual...

  • Page 69: Installing Antenna(S)

    3.5 Installing Antenna(s) Remove the antenna rubber covers on left and right panel. Penetrate the antenna jack through the hole. Put on the washer and fasten the nut with antenna jack. CS-100/P2002 Series | User Manual...
  • Page 70 Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. CS-100/P2002 Series | User Manual...

  • Page 71: Installing So-Dimm Memory

    3.6 Installing SO-DIMM Memory 1. Locate SO-DIMM socket. 2. Tilt the SODIMM module at a 45-degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 3. Press the module down until its fixed firmly by the two locking latches on each side. CS-100/P2002 Series | User Manual...

  • Page 72: Installing Pci(E) Card

    3.7 Installing PCI(e) Card 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable. clamp arm 3. Loosen one screw to remove the PCI bracket. CS-100/P2002 Series | User Manual...
  • Page 73 4. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly. 5. Fasten one screw to secure the PCI(e) expansion card. 6.

  • Page 74: Installing Thermal Pad Of Thermal Block

    7. Finally, fasten the screw that were previously loosen halfway to fix the retention module. 3.8 Installing Thermal Pad of Thermal Block Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation.

  • Page 75: Installing Cfm-Ign Module (Optional)

    3.9 Installing CFM-IGN Module (Optional) Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. CS-100/P2002 Series | User Manual...

  • Page 76: Installing Cfm-Poe Module (Optional)

    3.10 Installing CFM-PoE Module (Optional) This chapter takes CFM-PoE101 for example. 1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of PoE daughter board to the male connector on system motherboard. 3. Fasten two screws to secure the PoE board. CS-100/P2002 Series | User Manual...

  • Page 77: Installing Top Cover

    3.11 Installing Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover. CS-100/P2002 Series | User Manual...

  • Page 78: Installing Sata Hard Drive At Front Panel

    3.12 Installing SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. CS-100/P2002 Series | User Manual...
  • Page 79 4. Hold the rotating arm to pull out the HDD bracket. 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot.

  • Page 80: Installing Sata Hard Drive On Bottom Side

    7. Put back HDD bay cover at front panel, and fasten it with two screws. 8. Fasten one screw to secure the HDD bracket on the system chassis. 3.13 Installing SATA Hard Drive on Bottom Side Turn over the system to bottom side. Locate the cover of HDD compartment. CS-100/P2002 Series | User Manual...
  • Page 81 Loosen the two screws, then pull the cover to remove it. Loosen three screws and take the HDD bracket out of HDD compartment. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. CS-100/P2002 Series | User Manual...
  • Page 82 Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Secure the HDD bracket with three screws. Put back the cover and fasten the two screws. CS-100/P2002 Series | User Manual...

  • Page 83: Installing Sim Card

    3.14 Installing SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate. 3. Insert the SIM card. CS-100/P2002 Series | User Manual...

  • Page 84: Installing Cfast Card

    3.15 Installing CFast Card 1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card until it clicks. 4. Fasten two screws to secure the cover plate. CS-100/P2002 Series | User Manual...

  • Page 85: Connecting With Cs Display Module

    3.16 Connecting with CS Display Module 1. Prepare the mounting kit that accompanied with P2002 as shown. (including two mounting brackets and one screw pack) 2. Remove six screws at left and right panel of PC2002. 3. Assemble two mounting brackets to left and right panel of PC2002 by fastening three screws at each side.
  • Page 86 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2002). CS-100/P2002 Series | User Manual...
  • Page 87 6. Place the P2000 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2000 with the screw holes of display module underneath. Then slide the PC2000 carefully as indicated to have P2002 and display module connected together. 8.

  • Page 88: Installing Vesa Mount

    3.17 Installing VESA Mount The following picture indicates VESA mounting hole pattern on P2002, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2002+CV display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. (Please refer to section 3.16 in this manual for how to attach PC2002 to CV display module.) P2002 + CS display module...

  • Page 89: Installing Panel Mount

    3.18 Installing Panel Mount 1. Accessories provided by Cincoze are as follows. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) CS-100/P2002 Series | User Manual...
  • Page 90 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. CS-100/P2002 Series | User Manual...
  • Page 91 CS-100/P2002 Series | User Manual...
  • Page 92 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CS-100/P2002 Series | User Manual...

  • Page 93: Installing Rack Mount

    3.19 Installing Rack Mount 1. Locate the screw holes on the PC or monitor module. Then fasten 8 screws (M4x6) as indicated to fix it on the rack mount base. 2. Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. For 8.4”...
  • Page 94 For 19” ~ 24” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P2102 / P2102E/P2202/P2202E Left Side Right Side Bottom Side 3. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side.

  • Page 95: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CS-100/P2002 Series | User Manual...

  • Page 96: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 97: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 98: Advanced Setup

    4.3 Advanced Setup 4.3.1 ACPI Settings Enable or disable ACPI Auto Configuration. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. CS-100/P2002 Series | User Manual...

  • Page 99: Amt Configuration

    4.3.2 AMT Configuration This screen allows users to configure related settings of Intel® Active Management Technology. ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Un-Configure ME [Disabled] Sets this item to [Disabled] to unconfigure AMT/ME without using a password or set it to [Enabled] to use a password.

  • Page 100: F81866 Super Io Configuration

    ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function. 4.3.4 F81866 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option.

  • Page 101: Hardware Monitor

    ❑ Change Settings [Auto] Used to change the address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1 Mode [RS232] Change the Serial interface. Select <RS232>, <RS422> or <RS485> interface. ■ Watch Dog [Disabled] You can setup the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

  • Page 102: S5 Rtc Wake Settings

    4.3.6 S5 RTC Wake Settings ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.7 Serial Port Console Redirection ■...

  • Page 103: Cpu Configuration

    4.3.8 CPU Configuration ■ Hyper-Threading [Enabled] Allows you to enable or disable Intel® Hyper-Threading function of processor. ■ Active Process Cores [All] Allows you to choose the number of active processor cores. Configuration options: [All] [1]. ■ Intel® Virtualization Technology [Enabled] Enables or disables Intel®...

  • Page 104: Sata Configuration

    4.3.9 SATA Configuration ■ Serial Controller(s) [Enabled] Allows you to enable or disable Serial ATA controller. ■ SATA Mode [AHCI] This item allows users to choose [AHCI] or [RAID] mode. ■ Software Feature Mask Configuration RAID option ROM (OROM) / Intel® Rapid Storage Technology (RST) driver will refer to the software feature configuration to enable or disable the storage features.

  • Page 105: Csm Configuration

    Enables or disables Intel® Storage Technology (RST) Force Form. ■ Serial ATA Port (Stationary) ❑ Port 0 [Enabled] Enables or disables SATA Port 0. ■ Serial ATA Port (Swappable) ❑ Port 1 [Enabled] Enables or disables SATA Port 1. ❑ Hot Plug [Enabled] Enables or disables Hot Plug support for port1.
  • Page 106 ■ CSM Support [Enabled] Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter [Legacy only] This item allows users to select which type of operating system to boot. [UEFI and Legacy]: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.

  • Page 107: Asmedia Sata Controller Configuration

    4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. CS-100/P2002 Series | User Manual...

  • Page 108: Usb Configuration

    4.3.12 USB Configuration ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.0) hand-off function.

  • Page 109: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ VT-d [Enabled] This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. ■...

  • Page 110: Pch-Io Configuration

    ❑ Primary Display [Auto] This item allows users to select which graphics device is used as primary display. [Auto]: auto-detection by BIOS. [IGFX]: Integrated graphics as primary display. [PCIE]: Graphics device on PCIe interface as primary display. ❑ Internal Graphics [Auto] This item allows users to enable or disable Internal Graphics.
  • Page 111 PCI Express Root Port (Mini PCIe) ❑ PCI Express Port 6 [Enabled] Allows you to enable or disable PCI Express Port 6. ❑ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ■...

  • Page 112: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. CS-100/P2002 Series | User Manual...

  • Page 113: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. ■ Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. ■ Bootup NumLock State [On] Allows you to select the power-on state for keyboard NumLock. ■...

  • Page 114: Save & Exit

    4.7 Save & Exit ■ Save Changes and Exit This item allows you to exit system setup after saving changes. ■ Discard Changes and Exit This item allows you to exit system setup without saving changes. ■ Save Changes and Reset This item allows you to reset the system after saving changes.

  • Page 115: Chapter 5 Product Application

    Chapter 5 Product Application CS-100/P2002 Series | User Manual...

  • Page 116: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1001 series product Item Standard...
  • Page 117 To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices. To configure the register, use the index port to select the index and then write data port to alter the parameters.
  • Page 118 CS-100/P2002 Series | User Manual...
  • Page 119 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Input Mode Selection>...
  • Page 120 WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x00)) // Set (bit 0~7) = 0 to select GP 70~77 as Input mode. <Input Value> WriteByte(AddrPort, 0x82) // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 0~7 (0xFF)= GP70 ~77 as High. <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) 5.1.1.4.2 Control of GP80 to GP87 #define AddrPort 0x4E...
  • Page 121 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Note: Cincoze DIO Port base address is 0x0A00h. CS-100/P2002 Series | User Manual...
  • Page 122 5.1.1.6 DATA Bit Table (DIO) CS-100/P2002 Series | User Manual...
  • Page 123 5.1.1.7 DIO I/O Port Address DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DO8 DO7 DO6 DO5 DO4 DO3 DO2 DO1 Pin Definition Data Bits 0xA03 0xA02 I/O Port address CS-100/P2002 Series | User Manual...

  • Page 124: Digital I/O (Dio) Hardware Specification

    5.2 Digital I/O (DIO) Hardware Specification ⚫ XCOM+/ 2XCOM+: Isolated power in V+ ⚫ XCOM-/ 2XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9~30V ⚫ 8x/ 16x Digital Input (Source Type) ⚫ Input Signal Voltage Level Signal Logic 0: XCOM+ = 9V, Signal Low <...
  • Page 125 5.2.1 P2000 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Definition Definition DC INPUT DC INPUT CS-100/P2002 Series | User Manual...
  • Page 126 CS-100/P2002 Series | User Manual...
  • Page 127 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Cs-100/p2002 seriesCs-115c/p2002 seriesCs-w124c/p2002 seriesCs-117c/p2002 seriesCs-119c/p2002 seriesCs-w121c/p2002 series ... Show all

Table of Contents
