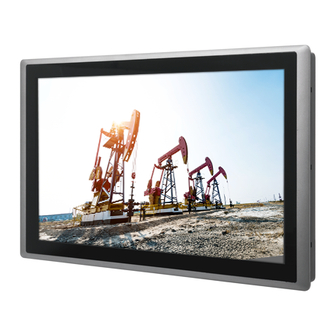

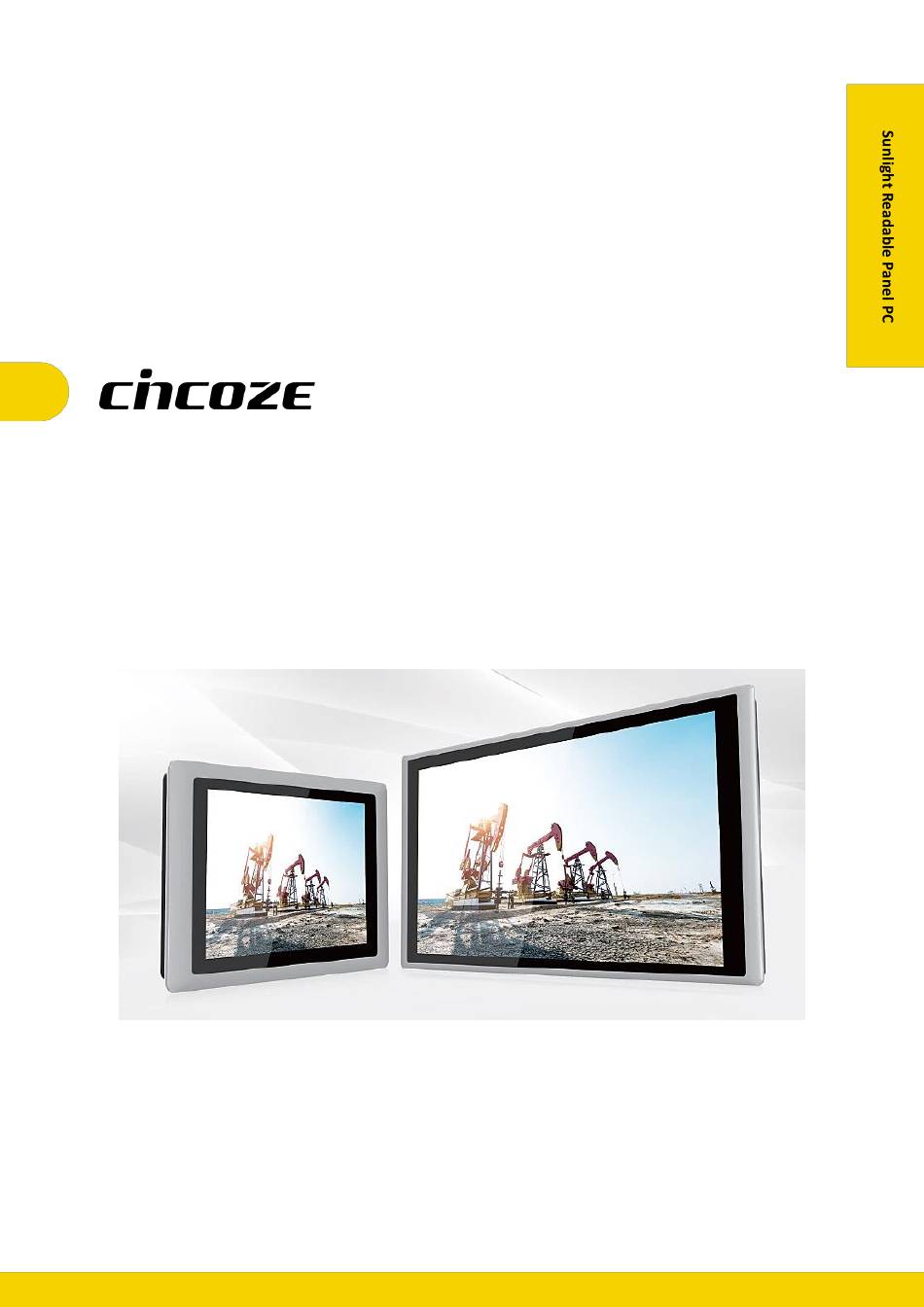

CS-100/P1201 Series User Manual Power Efficient Sunlight Readable Panel PC 8.4”~24” TFT-LCD Sunlight Readable and Modular Panel PC with Intel® Elkhart Lake Atom® x6000E Series Processor Version: V1.01...
2.1.1 Top View ........................59 2.1.2 Bottom View ....................... 60 2.2 Switches and Connectors Definition ..................61 2.3 Definition of Switches ......................62 2.4 Definition of Connectors ......................64 Chapter 3 System Setup ........................68 CS-100/P1201 Series | User Manual...
Page 3
5.2 Digital I/O (DIO) Hardware Specification ................110 5.2.1 DIO Connector Definition ..................110 Chapter 6 Optional Modules and Accessories ................... 112 6.1 Pin Definition & Settings ...................... 113 6.1.1 CFM-IGN101 ......................113 6.2 Installing CFM Modules ......................114 CS-100/P1201 Series | User Manual...
Page 4
6.2.1 CFM-IGN101 ......................114 6.2.2 CFM-PoE02 ........................ 115 6.3 Installing Accessories ......................117 6.3.1 VESA Mounting ......................117 6.3.2 URM01 ........................118 CS-100/P1201 Series | User Manual...
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. CS-100/P1201 Series | User Manual...
Page 9
9-48 VDC, minimum 6-1.5A, with minimum rated maximum ambient temperature 70°C, and has to be evaluated according to UL/IEC/EN 60950-1 and/or UL/IEC/EN 62368-1. If need further assistance, please contact Cincoze for further information. 17. Ensure to connect the power cord of power adapter to a socket-outlet with earthing connection.
Intel Atom x6211E Dual Core Processor 15“ TFT-LCD 1600nits Sunlight Readable Touch Panel PC CS-115C-R11/P1201-X6425E-R10 with Intel Atom x6425E Quad Core Processor 15“ TFT-LCD 1600nits Sunlight Readable Touch Panel PC CS-115C-R11/P1201-X6211E-R10 with Intel Atom x6211E Dual Core Processor CS-100/P1201 Series | User Manual...
Page 11
Intel Atom x6211E Dual Core Processor 24“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC CS-W124C-R10/P1201-X6425E-R10 with Intel Atom x6425E Quad Core Processor 24“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC CS-W124C-R10/P1201-X6211E-R10 with Intel Atom x6211E Dual Core Processor CS-100/P1201 Series | User Manual...
USB 3.2, COM, and DIO), Mini PCIe and M.2 Key E Type 2230 expansion slots, and exclusive CFM expansion to add functions such as PoE and IGN. Cincoze’s exclusive patented Convertible Display System (CDS) technology enables further flexible future computer performance upgrades and screen replacements. The robust CS-100/P1201 series is well-suited for outdoor kiosks or HMI applications.
⚫ 1x DDR4 SO-DIMM ⚫ Designed with Rugged Aluminum Die-casting Front Bezel ⚫ Support Panel / VESA / Rack Mount ⚫ Front Panel IP65 Compliant ⚫ Wide Operating Temperature ⚫ Cincoze Patent CDS Technology Support CS-100/P1201 Series | User Manual...
Front Panel Protection • Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 85% RH @ 40°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A CS-100/P1201 Series | User Manual...
Page 16
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 17
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 18
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 19
Dimension CS-108C/P1201 Unit: mm CS-100/P1201 Series | User Manual...
Front Panel Protection • Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 80% RH @ 40°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A CS-100/P1201 Series | User Manual...
Page 21
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 22
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 23
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 24
Dimension CS-110HC/P1201 Unit: mm CS-100/P1201 Series | User Manual...
Front Panel Protection • Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 80% RH @ 40°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A CS-100/P1201 Series | User Manual...
Page 26
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 27
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 28
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 29
Dimension CS-112HC/P1201 Unit: mm CS-100/P1201 Series | User Manual...
Front Panel Protection • Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 80% RH @ 40°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A CS-100/P1201 Series | User Manual...
Page 31
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 32
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 33
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 34
Dimension CS-115C/P1201 Unit: mm CS-100/P1201 Series | User Manual...
Front Panel Protection • Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 80% RH @ 40°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A CS-100/P1201 Series | User Manual...
Page 36
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 37
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 38
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 39
Dimension CS-117C/P1201 Unit: mm CS-100/P1201 Series | User Manual...
• Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 80% RH @ 40°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A • UL, cUL, CB Safety CS-100/P1201 Series | User Manual...
Page 41
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 42
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 43
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 44
Dimension CS-119C/P1201 Unit: mm CS-100/P1201 Series | User Manual...
• Ambient with Air flow: 0°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 90% RH @ 39°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A • UL, cUL, CB Safety CS-100/P1201 Series | User Manual...
Page 46
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 47
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 48
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 49
Dimension CS-W121C/P1201 Unit: mm CS-100/P1201 Series | User Manual...
• Ambient with Air flow: -20°C to 70°C (extended temperature peripherals) Operating Temperature • -20°C to 70°C Storage Temperature • 80% RH @ 50°C (non-condensing) Relative Humidity • CE, UKCA, FCC, ICES-003 Class A • UL, cUL, CB Safety CS-100/P1201 Series | User Manual...
Page 51
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion CFM (Control Function Module) • 1x CFM PoE Interface for optional CFM-PoE Module Expansion Interface CDS (Convertible Display • 1x CDS Interface for Convertible Display Module System) Interface CS-100/P1201 Series | User Manual...
Page 52
• Protection Type: shut down operating voltage, re-power on at the present level to recover • 15A Over Current Protection • SuperCap Integrated for CMOS Battery Maintenance-free Operation CMOS Battery Backup • 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 MTBF CS-100/P1201 Series | User Manual...
Page 53
• UL, cUL, CB, IEC/ EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1201 Series | User Manual...
Page 54
Dimension CS-W124C/P1201 Unit: mm CS-100/P1201 Series | User Manual...
LAN1, LAN2 Used to plug a remote power on/off terminal block Used to connect the system to a local area network Remote Power LED A terminal block used to connect to remote power on/off LED CS-100/P1201 Series | User Manual...
Press to increase brightness of the screen devices Decrease Brightness Press to decrease brightness of the screen Used to connect to the earth ground to prevent LCD On/Off electrical shock Press to turn-on or turn-off the display CS-100/P1201 Series | User Manual...
Remote Power Button/ Remote LED Connector Power1 +5V / +12V Power Output SATA1 SATA Connector POE_PH1 POE Board to Board Connector SODIMM1 DDR4 SODIMM Slot SIM1 SIM Card socket SPK_R1 Speaker Out Connector for right side CS-100/P1201 Series | User Manual...
BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Brightness Increase Switch Definition Push Backlight Brightness Increase BL_DN1: Backlight Brightness Decrease Switch Definition Push Backlight Brightness Decrease CS-100/P1201 Series | User Manual...
Page 63
1Gbps Network Link Orange 100Mbps Network Link 10Mbps Network Link TEMP_LED1: Main Board Temperature LED Status LED Status Status Main Board Temp ≤ 60°C Blue 60°C < Main Board Temp ≤ 87°C 87°C ≤ Main Board Temp CS-100/P1201 Series | User Manual...
Page 66
Remote Power Button Remote Power LED Do not apply power to this connector! This port is used to connect a SWITCH! (Ne mettez pas sous tension ce connecteur! Ce port est utilisé pour connecter un SWITCH!) CS-100/P1201 Series | User Manual...
Page 67
Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Definition Full Duplex Half Duplex Definition Definition DATA - DATA + POWER1: +5V / +12V Power Output Pin 1 Connector Type: 1x4 4-pin Wafer, 2.0mm pitch Definition +12V CS-100/P1201 Series | User Manual...
1. Loosen the 8 screws of front and rear panel, then place them aside. 2. Remove the cover from the chassis. 3. Place the top cover gently. CS-100/P1201 Series | User Manual...
2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. CS-100/P1201 Series | User Manual...
Insert the Mini-PCIe card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° Press down the module and fasten two screws to secure the module. CS-100/P1201 Series | User Manual...
1. Locate the M.2 E Key slot on the system board. 2. Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CS-100/P1201 Series | User Manual...
3. Press the card down and secure it with 1 screw. 3.5 Installing Antenna(s) Please install a mPCIe Wireless Lan card before putting on the washer and fasten the nut to the antenna jack. 1. Remove the antenna hole covers at front or side panel. CS-100/P1201 Series | User Manual...
Page 74
2. Have antenna jack penetrate through the hole. 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. CS-100/P1201 Series | User Manual...
Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le couvercle du châssis du système, assurez-vous que le film protecteur sur le coussin thermique a été retiré !d'alimentation CC au système.) CS-100/P1201 Series | User Manual...
Installing SIM Card 1. Loosen 2 screws on front panel to remove cover plate. 2. SIM card slot is at the front panel of the system. 3. Insert the SIM card. CS-100/P1201 Series | User Manual...
The complete shipping product is the CS display module already installed with P1201. This chapter will introduce how to dissemble the CS display module from P1201. 1. Remove the 6 screws on the display module. 2. Disconnect the modules. CS-100/P1201 Series | User Manual...
3.10 Installing SATA Hard Drive 1. Loosen 2 screws on front panel to remove cover plate. 2. Turn over the unit to have the bottom side face up and loosen 1 screw. 3. Pull out the HDD bracket. CS-100/P1201 Series | User Manual...
Page 80
5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly. 6. Turn over the unit to have the bottom side face up and fasten the screw. CS-100/P1201 Series | User Manual...
3.11 Installing Panel Mount 1. Accessories provided by Cincoze are as below. Before assembly, please prepare panel mount PPC and customer’s fixture. CS-100/P1201 Series | User Manual...
Page 82
2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. CS-100/P1201 Series | User Manual...
Page 84
4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CS-100/P1201 Series | User Manual...
( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CS-100/P1201 Series | User Manual...
Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ◼ System Date Set the date. Please use <Tab> to switch between date elements. ◼ System Time Set the time. Please use <Tab> to switch between time elements. CS-100/P1201 Series | User Manual...
Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. ◼ Active Processor Cores [All] Number of cores to enable in each processor package. CS-100/P1201 Series | User Manual...
Allows you to select which mode SATA controller will operates. Configuration options: [AHCI] ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑ Serial ATA Port 1 Port 1 [Enabled] Enables or disables SATA Port 1. 4.3.3 PCH-FW Configuration CS-100/P1201 Series | User Manual...
Enables or disables Storage Hierarchy function. ◼ Endorsement Hierarchy [Enabled] Enables or disables Endorsement Hierarchy function. ◼ Physical Presence Spec Version [1.3] Allows you to select which mode Physical Presence Spec Version will operate. Configuration options: [1.2], [1.3] CS-100/P1201 Series | User Manual...
[S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.6 F81966 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal setting for the Super IO Device. CS-100/P1201 Series | User Manual...
Page 92
Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ◼ Watch Dog Mode [Sec] Allows to set watchdog timer unit <Sec> or <Min>. ◼ Watch Dog Timer [0] Allows you to set watchdog timer’s value in the range of 0 to 255. CS-100/P1201 Series | User Manual...
Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. CS-100/P1201 Series | User Manual...
Enables or disables XHCI (USB3.0) hand-off function. Use this feature as a workaround for operating systems without XHCI hand-off support. ◼ USB Mass Storage Driver Support [Enabled] Enables or disables USB mass storage driver support. CS-100/P1201 Series | User Manual...
Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑ PCI Express Root Port (M2E_1) ◼ PCI Express Root Port [Enabled] Enables or disables PCI Express Root Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. CS-100/P1201 Series | User Manual...
Page 98
Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Keep last state]: Enters to the last power state before a power failure. CS-100/P1201 Series | User Manual...
User Password controls access to the system at boot and to the BIOS Setup utility. ◼ Security Boot ❑ Secure Boot [Disabled] Enable or disable Secure Boot function. ❑ Secure Boot Mode [Standard] Allows you to select Secure Boor Mode. Configuration options: [Standard] [Custom]. CS-100/P1201 Series | User Manual...
Allows you to enable or disable Quiet Boot function. ◼ Fast Boot Allows you to enable or disable Fast Boot function. If enabled, system boots with initialization of a minimal set of devices required to launch active boot option. CS-100/P1201 Series | User Manual...
Save as User Defaults This item allows you to save the changes done so far as user defaults. ◼ Restore User Defaults This item allows you to restore the user defaults to all the setup options. CS-100/P1201 Series | User Manual...
0xAA to the index port. Following is an example to enable configuration and to disable configuration by using debug. -o 4E 87 -o 4E 87 (enable configuration) -o 4E AA (disable configuration) 5.1.1.3 Relative Registers To program the F81966D configuration registers, see the following configuration procedures. CS-100/P1201 Series | User Manual...
Page 105
GPIO access way by Digital I/O (Access GPIO data register Only) GPIO access way by Coniguration register port (Access 0x4E/0x4F port with device number 0x06) CS-100/P1201 Series | User Manual...
Page 107
// Must write twice to enter extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection> // Set GP80 to GP83 output mode WriteByte(AddrPort, 0x88) // Select configuration register 88h CS-100/P1201 Series | User Manual...
Page 108
// Select configuration register 60h (High Byte address) WriteByte(DataPort, (0x0A)) WriteByte(AddrPort, 0x61) // Select configuration register 61h (Low Byte address) WriteByte(DataPort, (0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Note: Cincoze default DIO Port base address is 0xA00h CS-100/P1201 Series | User Manual...
Page 109
=DI4 =DO4 value value (Base address +3) (Base address +2) (0xA03) (0xA02) 5.1.1.7 DIO I/O Port Address (Default Address 0xA00) Pin Definition Data Bits DIO Type Digital Input Digital Output I/O Port Address 0xA03 0xA02 CS-100/P1201 Series | User Manual...
2. Insert CFM-IGN module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Loosen 2 screws on front panel to remove cover plate. 4. IGN function switch is at the front panel of the system. CS-100/P1201 Series | User Manual...
Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! (Avant de mettre le bloc thermique (à l'étape suivante), veuillez vous assurer que le film protecteur sur le coussin thermique a été retiré!) CS-100/P1201 Series | User Manual...
Page 116
(Avant d'assembler le couvercle du châssis du système, assurez-vous que le film protecteur sur le coussin thermique a été retiré !d'alimentation CC au système.) 6. When the system is power on, please note that the POE LED will light on if the POE module is properly installed. CS-100/P1201 Series | User Manual...
6.3.1 VESA Mounting The following picture indicates VESA mounting hole pattern on P1201 series, which is compliant with VESA mounting standard. 1. Please fasten the VESA screws as indicated to fix it on the stand. CS-100/P1201 Series | User Manual...
2. Put on the rack mount base and fasten the screws. 3. Locate the Rack mount bracket holes. For P2002E For P2002/P1001E For P1001/P1101/P1201/P2102/P2102E For 8.4” ~ 17” Panel PC series For P1001/P1101/P1201/P2102/ P2102E For P2002/P1001E For P2002E For 19” ~ 24” Panel PC series CS-100/P1201 Series | User Manual...
Page 119
4. Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. Left view Right view Bottom view For 8.4” ~ 17” Panel PC series Left view Right view Bottom view For 19” ~ 24” Panel PC series CS-100/P1201 Series | User Manual...
Page 120
5. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side. For 8.4” ~ 17” Panel PC series For 19” ~ 24” Panel PC series CS-100/P1201 Series | User Manual...
