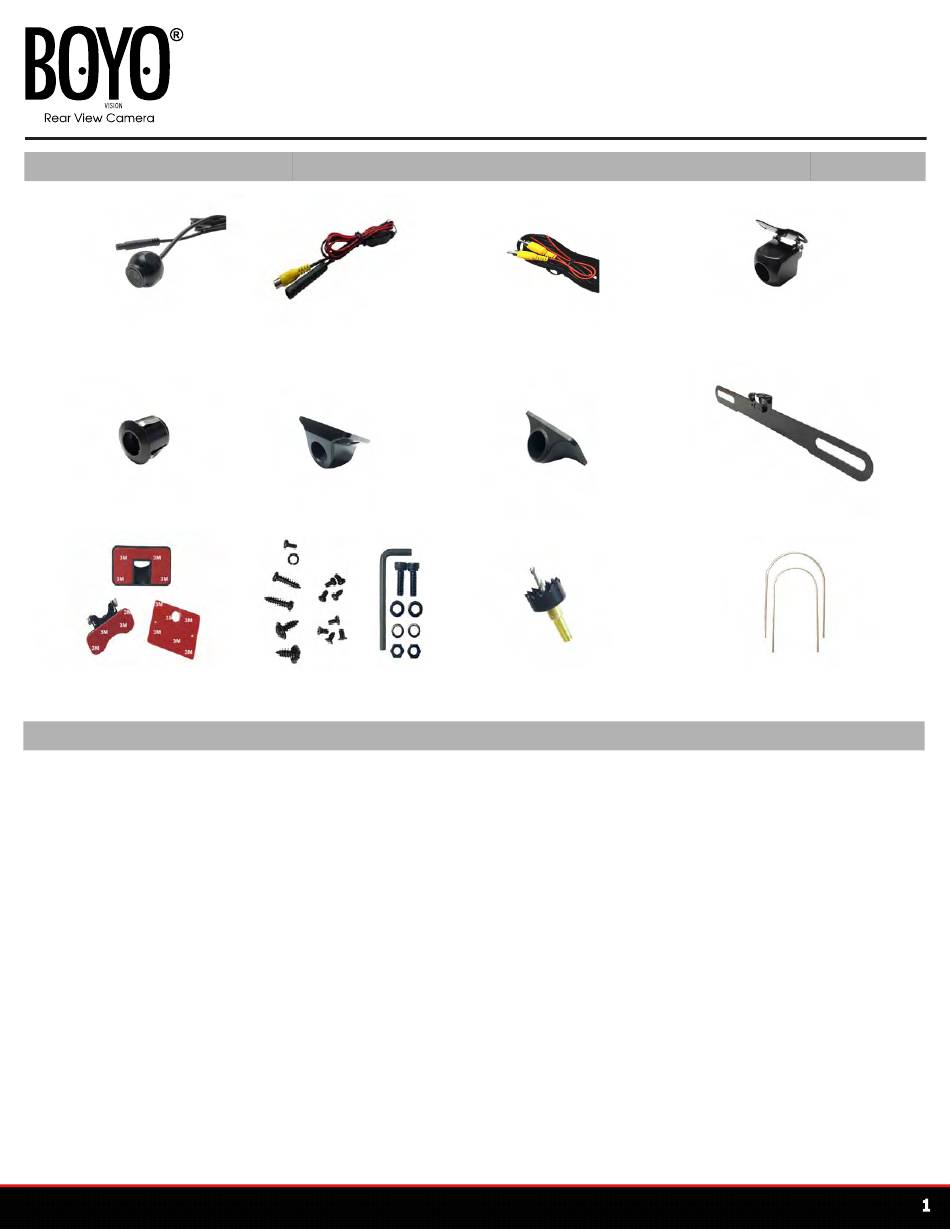

1. BILL OF MATERIAL
HD CAMERA
FLUSH MOUNT
3M MOUNTING TAPE
2. SPECIFICATIONS
8
VIDEO/POWER CABLE
METAL ANGLE MOUNT
MOUNTING HARDWARE
1/3" HD Color CMOS Image Sensor (1058)
976 (H) x 592 (V) Resolution
700 TV Lines
0.1 LUX Minimum Illumination
170 Degree Viewing Angle (D)
6 VDC ~ 32 VDC Power Source
IP68 Waterproof Rating
Selectable Reverse or Non-Rerverse Image
Selectable On/Off Fixed Parking Guidelines

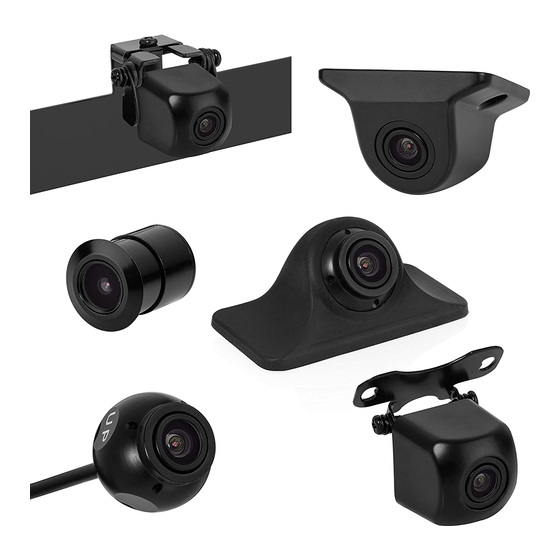

Ball Mount Camera with 6ft (1.8m) Camera Cable
Metal Square Bracket Mount
Metal Flush Mount
Metal Angle Mount
Rubber Angle Mount
Concealed License Plate Mount
24ft (7.2m) RCA Video Cable with trigger wire
0.984" (25mm) Hole Saw for Flush Mount
3M Brand Mounting Tape for Mounts
WWW.VISIONTECHAMERICA.COM
24ft RCA VIDEO CABLE
RUBBER ANGLE MOUNT
HOLE SAW FOR FLUSH MOUNT
USER'S MANUAL
MODEL: VTK501HD
5 IN 1 CAMERA SYSTEM
SQUARE BRACKET MOUNT
LICENSE PLATE MOUNT
CAMERA ADJUST TOOLS
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Boyo VTK501HD
Summary of Contents for Boyo VTK501HD
- Page 1 USER’S MANUAL MODEL: VTK501HD 5 IN 1 CAMERA SYSTEM 1. BILL OF MATERIAL HD CAMERA VIDEO/POWER CABLE 24ft RCA VIDEO CABLE SQUARE BRACKET MOUNT FLUSH MOUNT METAL ANGLE MOUNT RUBBER ANGLE MOUNT LICENSE PLATE MOUNT 3M MOUNTING TAPE MOUNTING HARDWARE...
- Page 2 USER’S MANUAL MODEL: VTK501HD 5 IN 1 CAMERA SYSTEM 3. METAL SQUARE BRACKET MOUNT ASSEMBLY CAMERA METAL SQUARE MOUNT 4. METAL FLUSH MOUNT ASSEMBLY CAMERA METAL FLUSH MOUNT SMALL O RING LARGE O RING *NOTE: TO PREVENT WATER LEAK, APPLY A SMALL BEAD OF CLEAR SILICONE SEALENT AROUND THE FLUSH MOUNT BEFORE INSTALLING IT INTO THE PRE-DRILLED 25mm HOLE 5.
- Page 3 USER’S MANUAL MODEL: VTK501HD 5 IN 1 CAMERA SYSTEM 8. WIRING (POWER AND RCA CONNECTORS) A) RED WIRE CONNECTS TO (+) POWER SOURCE (Example - Reverse Light Wire + when in reverse gear, Ignition On Switch +) B) BLACK/RED WIRE CONNECTS TO CHASSIS GROUND (NOT the other wire at reverse light) C) YELLOW RCA VIDEO CABLE CONNECTOR PLUGS INTO CAMERA CABLE YELLOW RCA CONNECTOR AT THE CAMERA SIDE D) (OPTIONAL) 4”...
