Summary of Contents for Kalamazoo KM10

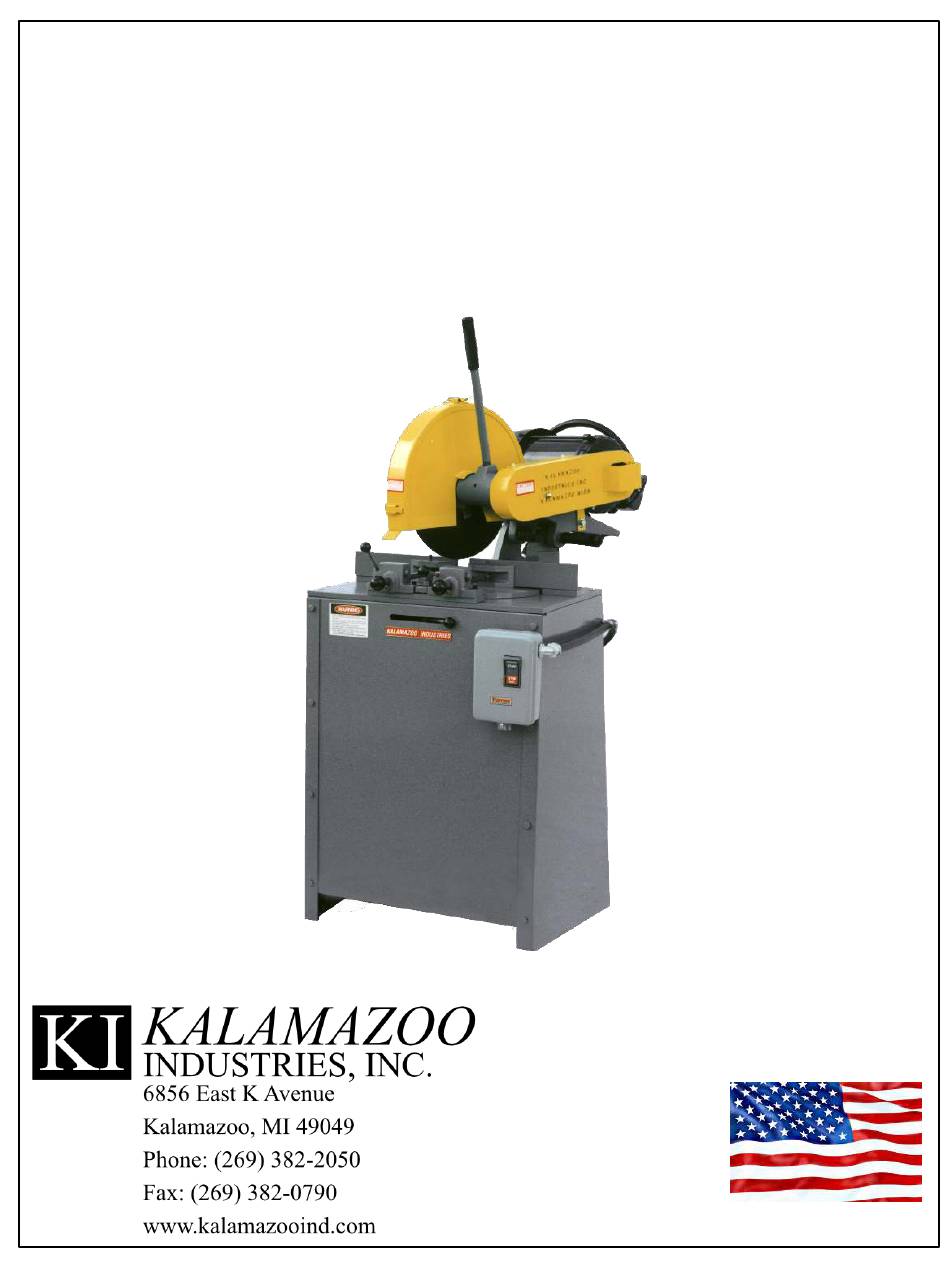

- Page 1 INSTRUCTION MANUAL KM14 14” MITRE SAW MADE IN USA...
- Page 2 WARNING! TO REDUCE THE RICK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN, ANY LIQUID OR MOISTURE. INSPECTION If these goods are damaged in transit, the DELIVERING TRANSPORTATION COMPANY is required by law to make notation of damages on the freight bill.

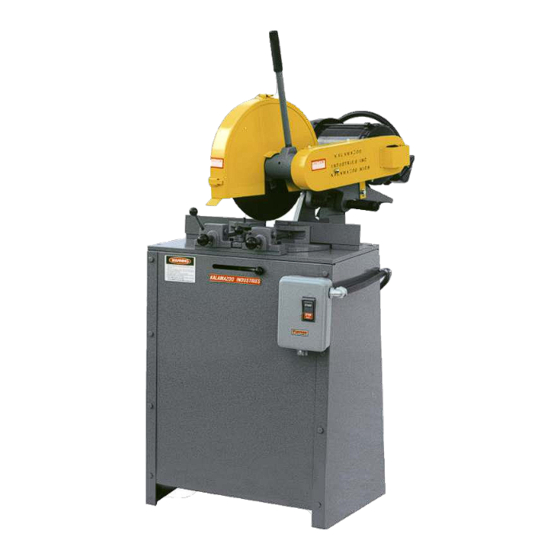

- Page 3 BASIC SAW OPERATION The KM14 14” abrasive mitre saw mitres 45 degrees left or right and any angle in between. Pre-set holes have been drilled and pinned at 90 degrees, 30 degrees and at 45 degrees left and right. To swivel the saw head pull the index pin (#70) on mitre base plate (#7), loosen the table lock handle (#17), rotate saw head with trunnion pin (#66).
- Page 4 KM14 REPLACEMENT PARTS LIST...
