Summary of Contents for Kalamazoo K10SW

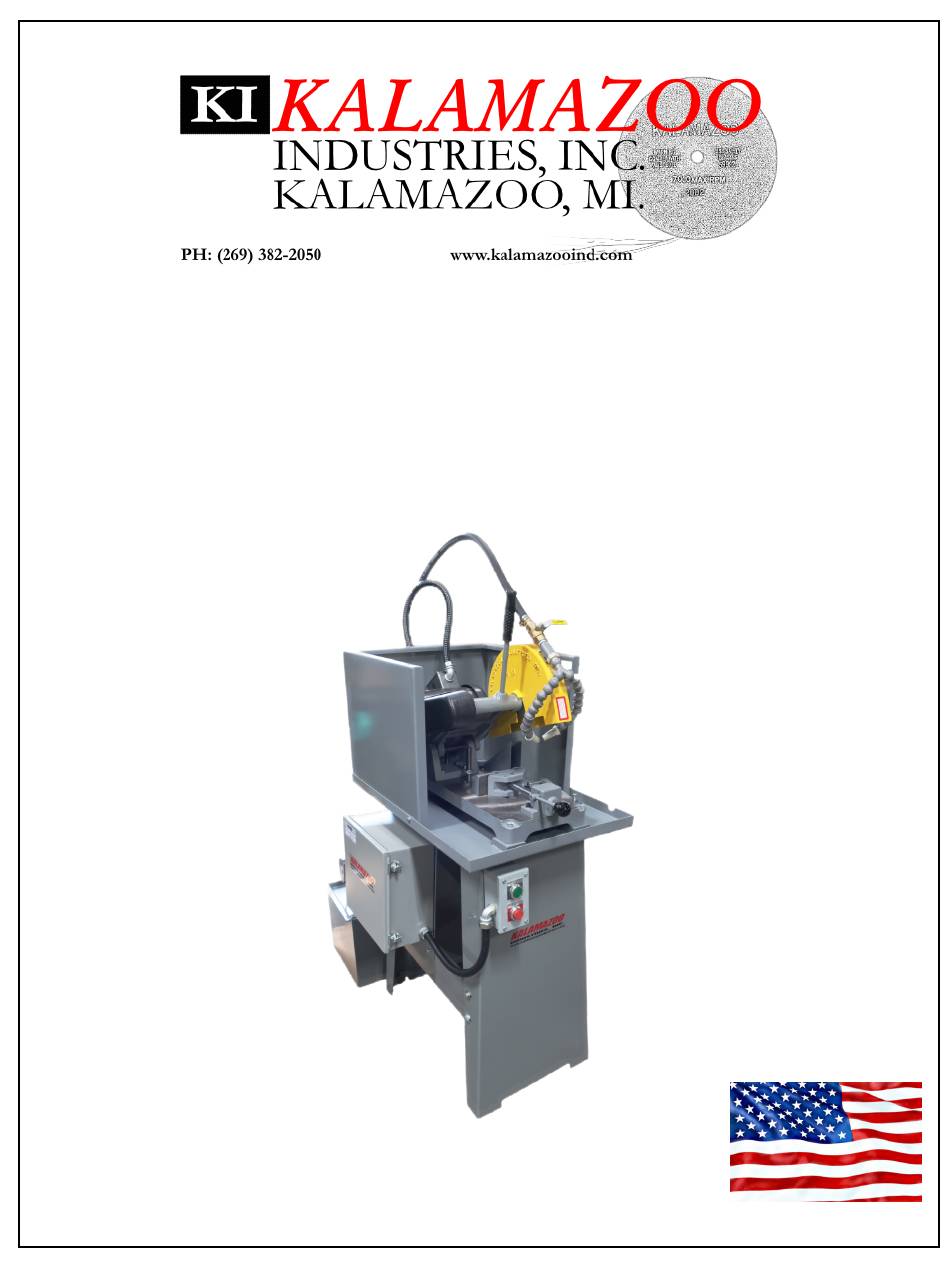

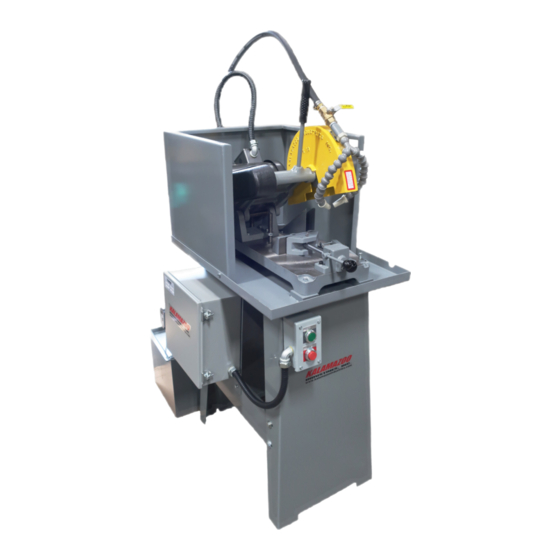

- Page 1 K10SW ABRASIVE WET SAW INSTRUCTION MANUAL MADE IN USA...
- Page 2 Electrical: CAUTION: Voltage changes require wiring changes at drive motor. WARRANTY DOES NOT COVER unauthorized wiring changes/failures. Consult an electrician an electrician if your not familiar with electrics. K10SW SETUP • BEFORE STARTING OR CONNECTING ELECTRICAL VERIFY THE PHASE AND VOLTAGE OF THE UNIT.
- Page 3 BASIC OPERATION 1. Be certain correct wiring is matched to motor. 2. Punch NEMA ELECTRICAL ENCLOSER FOR INCOMING WIRING. MAKE SURE TO USE A SEAL TITE FITTING TO INSURE A TIGHT SEAL AROUND THE WIRING. Input wiring to L1, L2 and L3. CAUTION: IF NOT FAMILIAR WITH ELECTRICS CONSULT AN ELECTRICIAN! The machine is wired a the factory for the voltage specified on the order.
- Page 4 K8B, K10B (TAKES NEW 6202-2RS- 1/2 BEARINGS 044-007 K10 BEARING 701-003 K10 SPINDLE W TIGHT FLANGE 560-045 K10B, K10SW, KM10 PULLEY LOOSE FLANGE FOR K10B AND 292-008 2SK7 FJNZ063 5/8-18 F H JAM NUT Z SPARK DEFLECTOR GUARD FOR 342-008...
