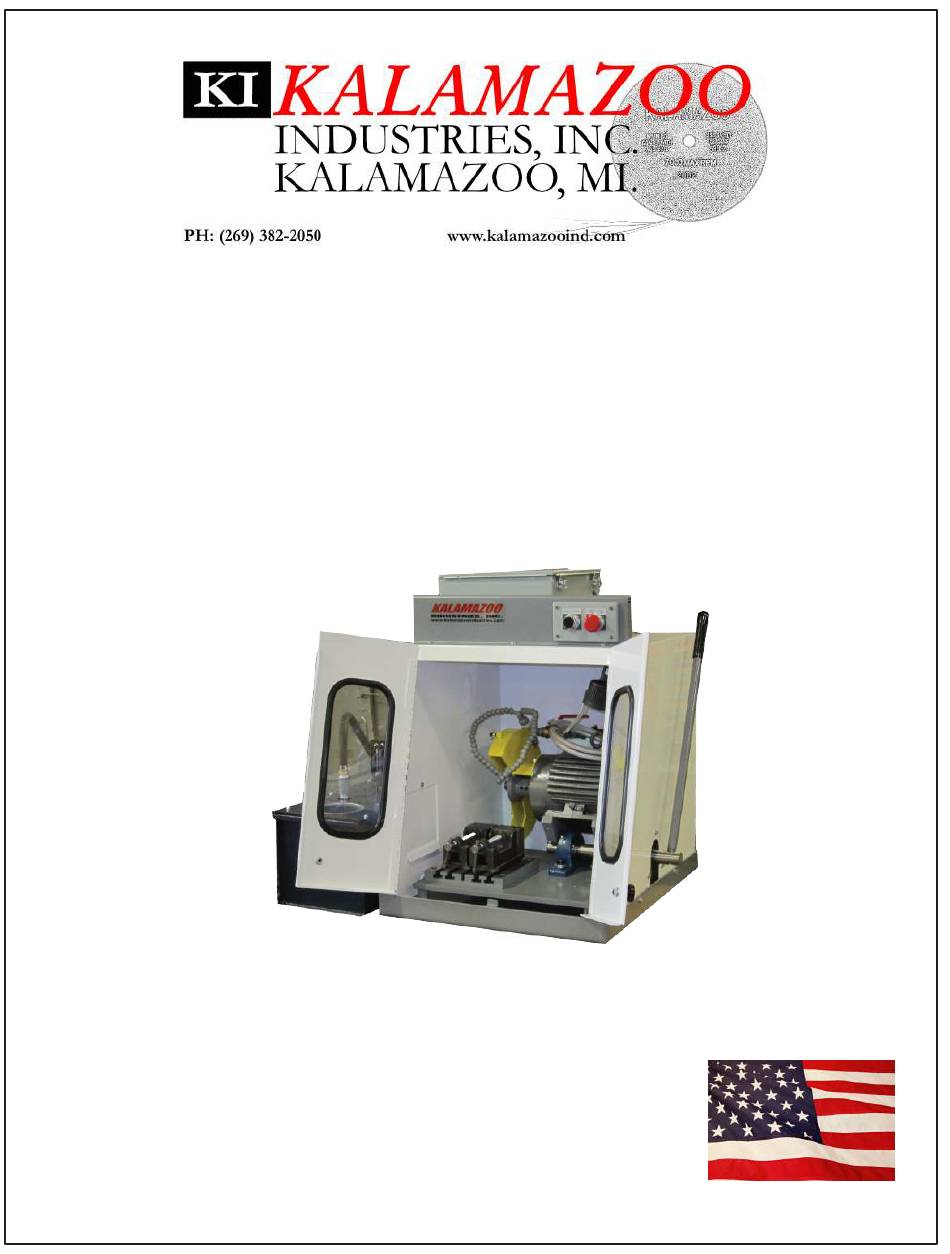

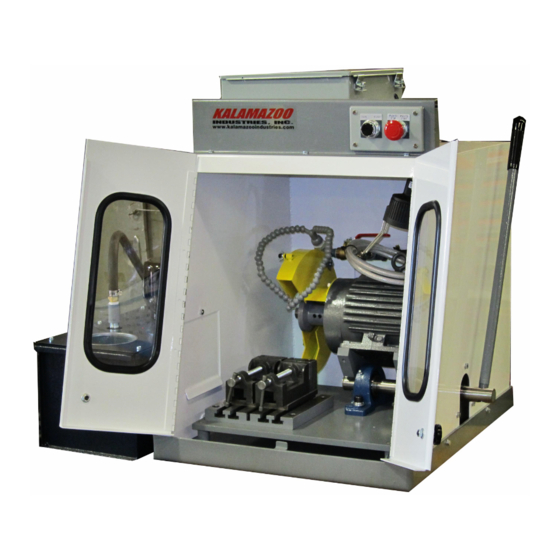

- Page 1 K10WBT METALLURGICAL SAW MANUAL MADE IN USA...
- Page 2 Electrical: CAUTION: Voltage changes require wiring changes at drive motor. WARRANTY DOES NOT COVER unauthorized wiring changes/failures. Consult an electrician an electrician if your not familiar with electrics. K10WBT SETUP • BEFORE STARTING OR CONNECTING ELECTRICAL VERIFY THE PHASE AND VOLTAGE OF THE UNIT.
- Page 4 Basic Controls K10WBT 10” abrasive wheel, 5/8” arbor, LH thd. Coolant tank & pump @ 110 volt, control voltage is 24v. Manual pull down. 1. 5/8”arbor, Left hand spindle nut. Use the correct abrasive wheel for the material being cut. Burned or discolored parts indicate the WRONG abrasive wheel.
- Page 5 3/8-16 X 1-1/4 FSHCS TS-10 T-SLOT TABLE FOR K10WBT SHCA037016 3/8-16 X 1 SHCS UCP207-20 1-1/4" PILLOW BLOCK 044-032 BEARING FOR K10WBT AND KVF-3 SHCA050024 1/2-13 X 1-1/2 SHCS SFWZ050 1/2 SAE F/W Z SLWZ050 1/2 SPLIT L/W Z 562-046...
