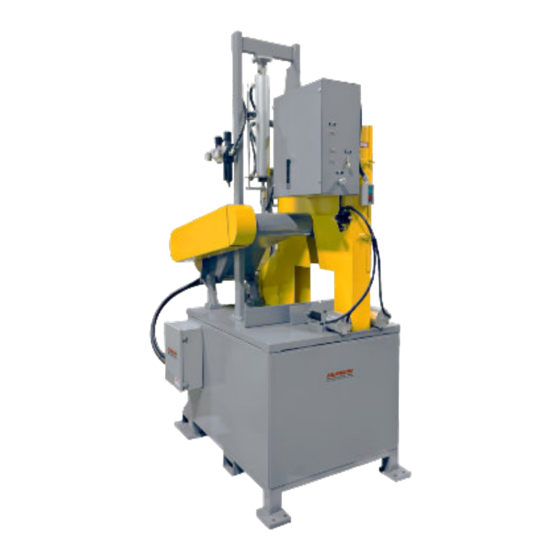

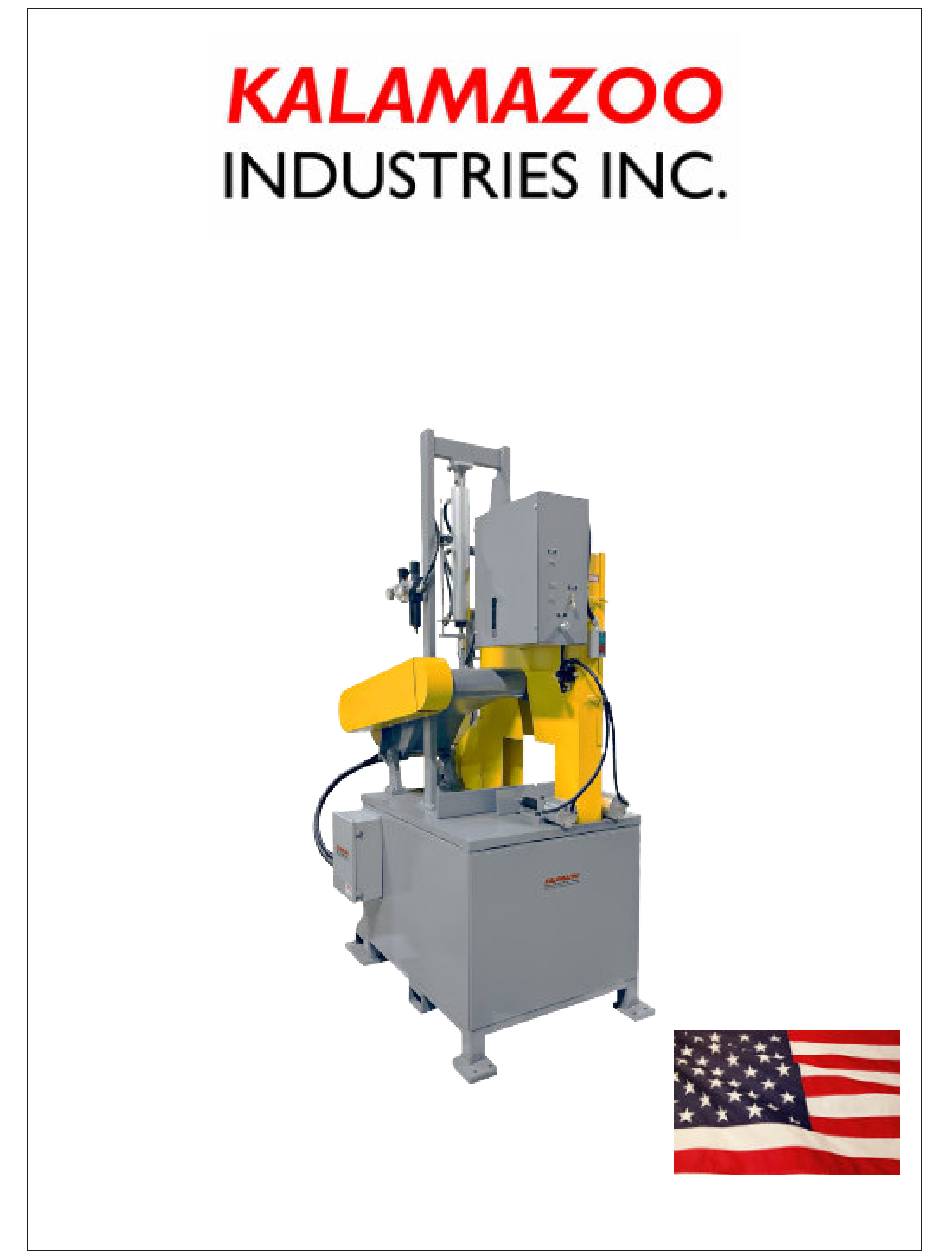

- Page 1 K26S 26” ABRASIVE SAW WITHOUT OSCILLATION MANUAL CONTACT INFORMATION PHONE: (269) 382-2050 EMAIL: info@kalamazooind.com MADE IN USA...
- Page 2 Electrical: CAUTION: Voltage changes require wiring changes at drive motor. WARRANTY DOES NOT COVER unauthorized wiring changes/failures. Consult an electrician an electrician if your not familiar with electrics. K26S SETUP • BEFORE STARTING OR CONNECTING ELECTRICAL VERIFY THE PHASE AND VOLTAGE OF THE UNIT.
-
Page 3: Basic Operation
BASIC OPERATION • Wheel size: 26” • Required hydraulic oil: DTE24 • Spindle size: 1” • Spindle RPM: 1760 RPM HOOK UP BE SURE OF CORRECT AC POWER TO MACHINE. DRILL NEMA BOX FOR SEALTITE FITTINGS AROUND INCOMING WIRE. CONNECT AC POWER TO L1, L2 , L3 ON CONTATOR. - Page 4 ITEM NO. PART NUMBER DESCRIPTION QTY. 716-004 K26S STAND ASSEMBLY 556-118 TOP PLATE FOR K26S AND K30 716- BACK ACCESS PANEL FOR K26S 004BACKPANEL1 WITH NO OSC STAND ASSEMBLY 831-002 TRUNNION, LEFT AND RIGHT SET HHC5037028 3/8-16 X 1-3/4 HHCS GR5 Z...
