Summary of Contents for Kalamazoo KM14

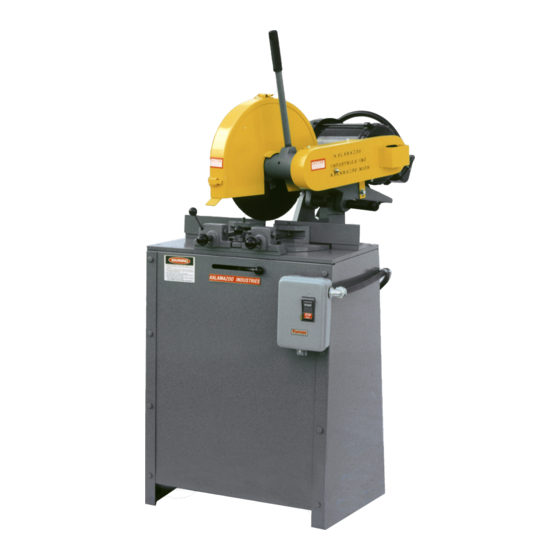

- Page 1 INSTRUCTION MANUAL KM14 14” MITRE SAW MADE IN USA...
- Page 2 Electrical: CAUTION: Voltage changes require wiring changes at drive motor. WARRANTY DOES NOT COVER unauthorized wiring changes/failures. Consult an electrician an electrician if your not familiar with electrics. KM14 SETUP • BEFORE STARTING OR CONNECTING ELECTRICAL VERIFY THE PHASE AND VOLTAGE OF THE UNIT.
- Page 3 BASIC SAW OPERATION The KM14 14” abrasive mitre saw mitres 45 degrees left or right and any angle in between. Pre-set holes have been drilled and pinned at 90 degrees, 30 degrees and at 45 degrees left and right. To swivel the saw head pull the index pin (#70) on mitre base plate (#7), loosen the table lock handle (#17), rotate saw head with trunnion pin (#66).
- Page 4 KM14 REPLACEMENT PARTS LIST...
