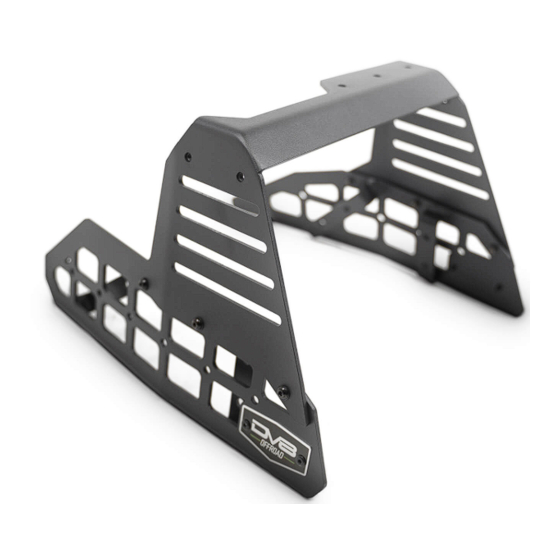

MOLLE CENTER CONSOLE AND
BRIDGE
07-18 JEEP WRANGLER JK
CCJK-01
TOOLS
REQUIRED
- 3mm Allen
- 1/4" Drill Bit
- Rivnut Tool
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD CCJK-01
Summary of Contents for DV8 OFFROAD CCJK-01

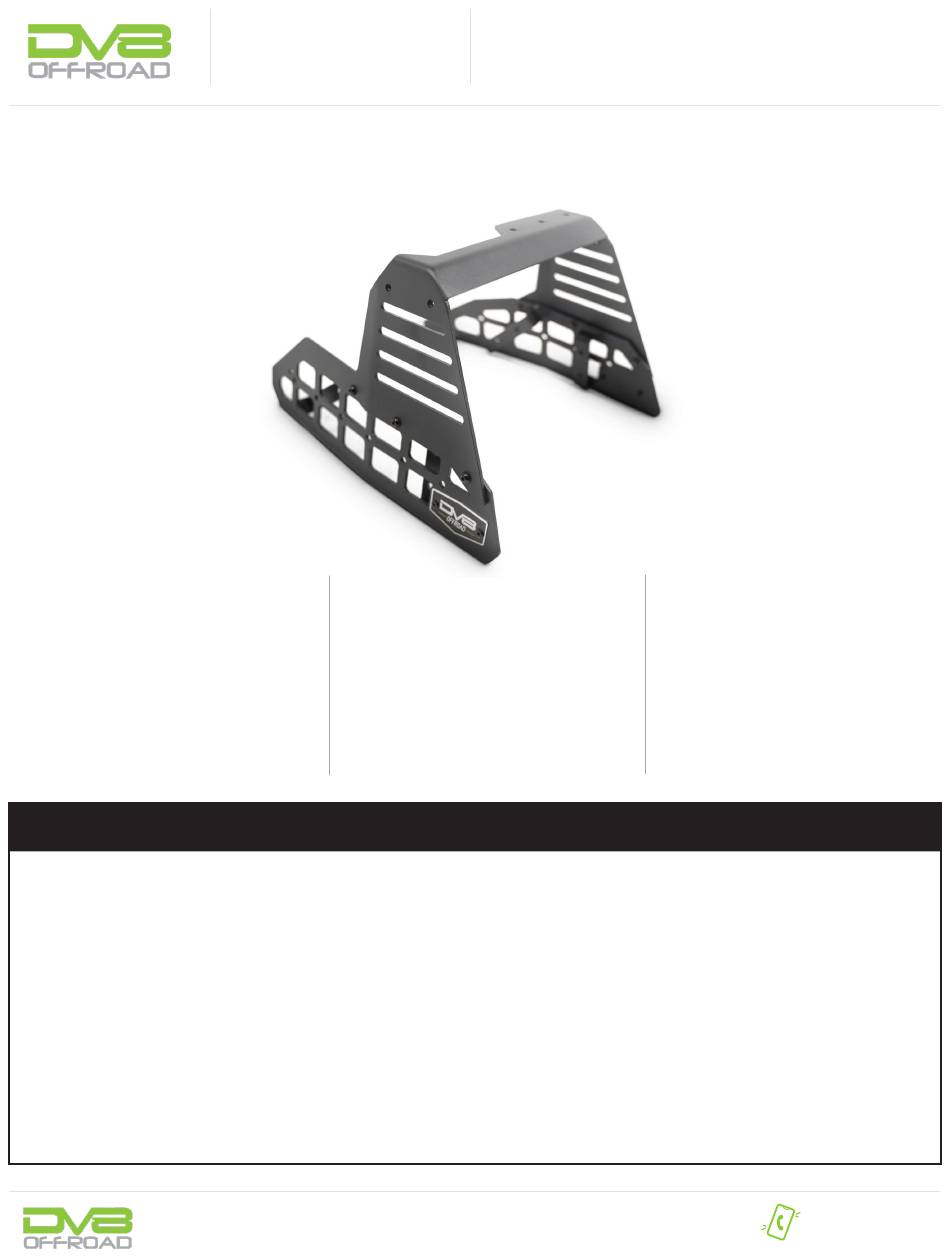

- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (14) M5x14mm Allen head bolts (14) M5 Washers (8) M5 x12 Nutserts...
- Page 3 INSTALLATION MANUAL STEP 2 | With the DV8 Center Console assembled, place the center console over the gear selector. STEP 3 | With assistance, hold the assembly in the desired mounting location and mark the (4) mounting holes on each side of the assembly. Do not let the assembly shift while marking the mounting holes.
- Page 4 INSTALLATION MANUAL STEP 4 | Remove the DV8 Center Console. With a firm grip, pop the factory center console up. STEP 5 | Using a 1/4” drill bit, drill (8) holes where previously marked. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP 6 | Install the (8) provided M5 nutserts using a Hand Rivet Nut Setter. STEP 7 | Secure driver-side center console panel using a 3mm Allen bit or wrench and provided M5 hardware. Use (1) washer per Allen head screw. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 8 | Install the assembled passenger-side panel & bridge. Secure passenger-side panel and bridge using a 3mm Allen bit or wrench and provided M5 hardware. STEP 9 | Secure the driver-side panel to the center console bridge using a 3mm Allen bit or wrench and the provided M5 hardware.
- Page 7 INSTALLATION MANUAL STEP 10 | Congratulations, installation of the CCJK-01 Center Console is now complete. NEED HELP? 855-680-9595...
