Vitek VTD-VH49VP4 User Manual

INDUSTRIAL VIDEO PRODUCTS, INC.
VTD-VH49VP4
Image Device
Effective Pixels
Resolution
Minimum Illumination
S/N Ratio
Video Output
Auto Gain Control
Sync. System
White Balance
BLC
Scanning System.
Electronic Shutter
Standard Lens
Operation Temperature
Camera Dimensions
Weight
Power Supply
VITEK INDUSTRIAL VIDEO PRODUCTS, INC.
9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352
PHONE: 888-VITEK-70 818-771-0300 FAX: 818-771-0400
WWW.VITEKCCTV.COM
Vandal Proof Color Vari Focal Dome Specifications
1/3" Sony Super HAD CCD Sensor
768 (H) X 494 (V)
More Than 480 Horizontal Tv Lines
0.7 Lux At F1.2 (AGC Off)
More Than 48db (AGC Off)
Composite Output 1.0 Vp-P/75Ω
Built-In (On)
Line Lock Only
Auto White Balance
Built-In (On)
2:1 Interlace / 525lines / 60fields / 30frames
1/60 ~ 1/100,000 Sec
Direct Drive A/I with 4-9mm Focal Range
-10° ~ 50°C (14° ~ 122°F)
3.96" (H) X 6.42" (OD) / (100.4mm X 163mm)
26.46 Oz. / 750 g. / 1.65 Lbs.
AC 110 60 Hz (Input Power) / AC 24V 500 mA (Output Power)
INDUSTRIAL VIDEO PRODUCTS, INC.
VTD-VH49VP4

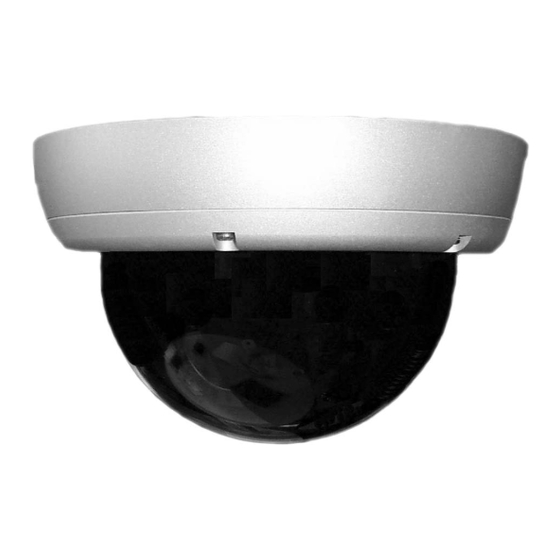

Vandal Proof Color Varifocal Dome Camera
USER'S MANUAL
9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352
PHONE: 888-VITEK-70 818-771-0300 FAX: 818-771-0400
WWW.VITEKCCTV.COM
