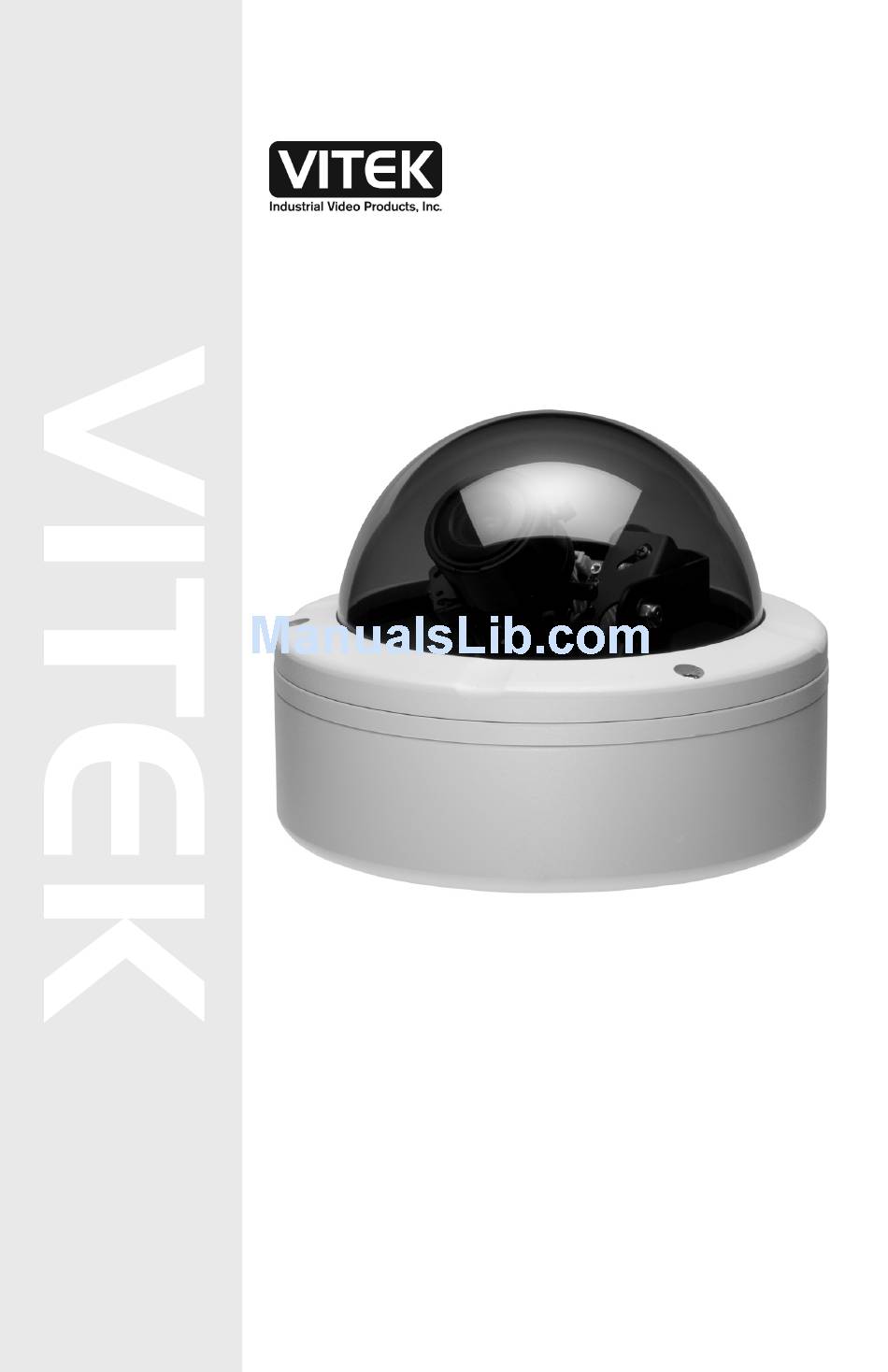

VTD-VPH
Vandal Resistant Color
Dome Camera Series
Product Manual

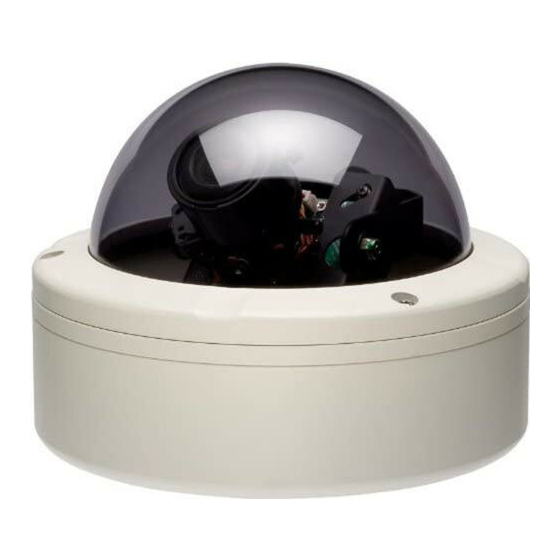

The VTD-VPH Vandal Resistant Dome Camera is a
smaller, more attractive camera ideal for use in
commercial or residential applications. It measures only 5"
in diameter and comes with a 24 Volt AC power input for
easy integration with standard cameras and power
systems. Versatile mounting and lens options allow you to
achieve perfect video images in virtually any environment.
All VTD-VPH domes feature Sony Super-HAD and/or
Ex-View Technology with Hi-Resolution of 480 Television
Lines.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-VPH
Summary of Contents for Vitek VTD-VPH
- Page 1 Vandal Resistant Color Dome Camera Series Product Manual The VTD-VPH Vandal Resistant Dome Camera is a smaller, more attractive camera ideal for use in commercial or residential applications. It measures only 5” in diameter and comes with a 24 Volt AC power input for easy integration with standard cameras and power systems.
-
Page 2: Contents Of Package
Assorted Additional screws for Convenience INSTALLATION OVERVIEW Your VTD-VPH Dome Camera is designed to be flush or ceiling mounted on a wall or ceiling and comes complete with a surface mount rear casing including conduit knockouts. Its patented 3-axis gimbal allows for perfect viewing angles on any vertical or horizontal surface. An optional goose neck wall mount (VT-VPHWM) is available if desired. -
Page 3: Flush Mount Installation
FLUSH MOUNT INSTALLATION Remove Top Bezel Remove Inner Screws Detach Casing Begin by removing the three tamper proof screws in the outer bezel with the special wrench included and removing it. Continue by removing the tamper proof screws on the inner casing (you may want to remove and set aside the polycarbonate bubble to avoid scratching it). -
Page 4: Camera Setup
CAMERA SETUP Your VTD-VPH Dome Camera has been set at average default settings from the factory so the performance should be excellent right from the start. However, certain challenging environments may require additional set-up procedures to enhance the image. DIP SWITCH SETTINGS There are four dip switches on the rear board of the camera. -
Page 5: Auto Iris Lens Adjustment
AUTO IRIS LENS ADJUSTMENT Your DC Auto Iris Lens should be set properly at default from the factory. However, if the picture appears too bright or too dark, the iris function can be adjusted by turning the small silver potentiometer located on the board above the lens. Auto Iris Adjustment FIELD OF VIEW AND FOCUS ADJUSTMENT On all varifocal versions, the width of view may be... -
Page 6: Routine Maintenance
If the camera view is obstructed by scratches, remove the front plate (bezel) and rotate the bubble to a portion that is not scratched. If the dome becomes damaged or scratched beyond use, contact your distributor to order a replacement. OPTIONAL EQUIPMENT VT-VPHWM Goose Neck Wall Mount w/Cable Feed thru. VTD-VPH/WM... -
Page 7: Dome Specifications
Image Device 1/3” High Resolution Super HAD Color CCD Effective Pixels 768 x 494 Resolution 480 TV Lines Minimum Illumination Standard Cameras: 0.7 Lux / F1.2 (AGC On) Day/Night Cameras: 0.03 Lux / F1.2 (AGC On) With Day/Night Function S/N Ratio More than 48dB (AGC off) Electronic Shutter 1/60 to 1/100,000 Sec. - Page 8 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact VITEK or your local distributor if servicing should become necessary. 9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352 PHONE: 888-VITEK-70 / 818-771-0300 FAX: 818-771-0400 WWW.VITEKCCTV.COM | SALES@VITEKCCTV.COM...
