LIMITED LIABILITY WARRANTY
Your new Camera is guaranteed to be free from defects in materials
and workmanship for a period of two years from the date of
purchase.
The product must have been used only for its intended purpose, and
not been subjected to damage by misuse, willful or accidental
damage, caused by excessive voltage or lightning.
The product must not have been tampered with in any way then the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact VITEK directly for all servicing.
9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352
PHONE: 888-VITEK-70 / 818-771-0300 FAX: 818-771-0400
WWW.VITEKCCTV.COM | SALES@VITEKCCTV.COM
4

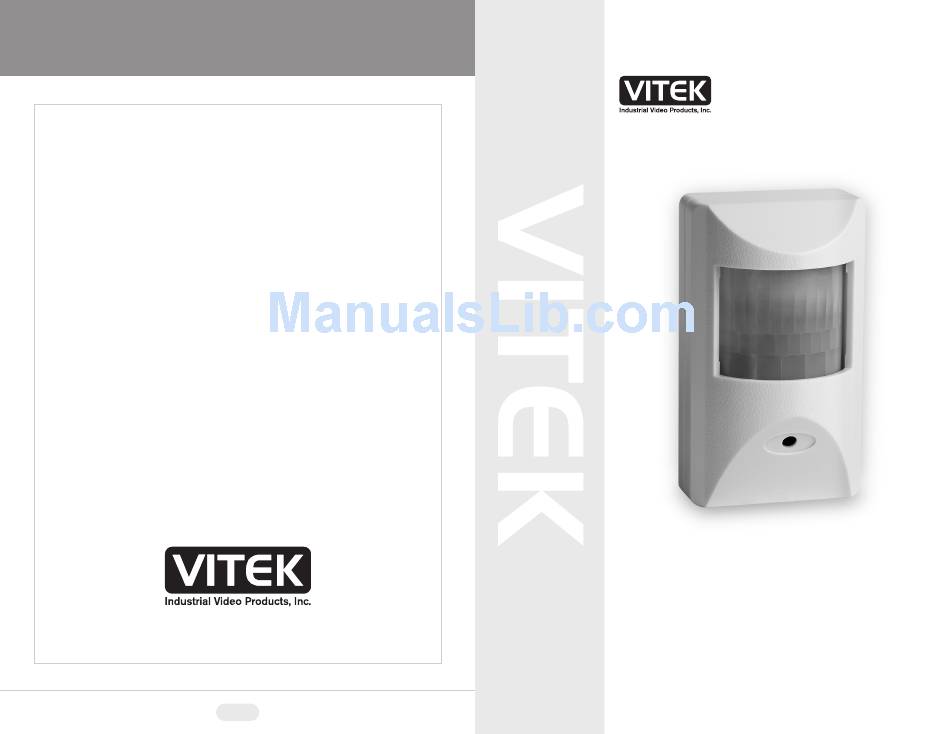

VTC-PIR2
B/W & Color PIR Cameras
Product Manual

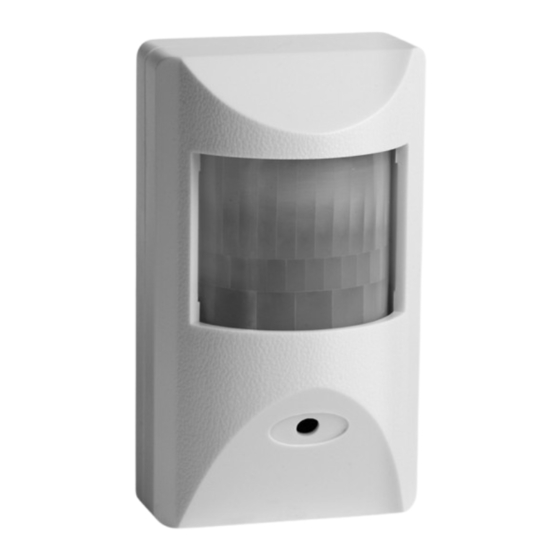

The VT-PIR2 is a motion activated or continuous imaging
camera that incorporates a CCD camera with a PIR
motion sensor. It can be used as an accessory to an alarm
system or as a stand-alone monitoring device. Vitek PIR
cameras are an excellent choice for use in covert or
hidden camera applications.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTC-PIR2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek VTC-PIR2

  • Page 1 CCD camera with a PIR motion sensor. It can be used as an accessory to an alarm system or as a stand-alone monitoring device. Vitek PIR cameras are an excellent choice for use in covert or...
  • Page 2: Specifications

    PIR BOARD LAYOUT 1. LED: When an intrusion is detected, the LED will activate. 2. JP1: Pulse count setting. 1-2 short: Relay will activate when an intrusion is detected once. (For stable environments or high risk operating environments) 2-3 short: Relay will activate when an intrusion is detected twice within 15 seconds. (For harsh environments) 3.
