Paradox DIGIPLEX EVO R915 Manual

R915-EI00
4-Wire Sealed Indoor/Outdoor
Proximity Reader and Keypad
Printed in Canada 09/2023
Introduction

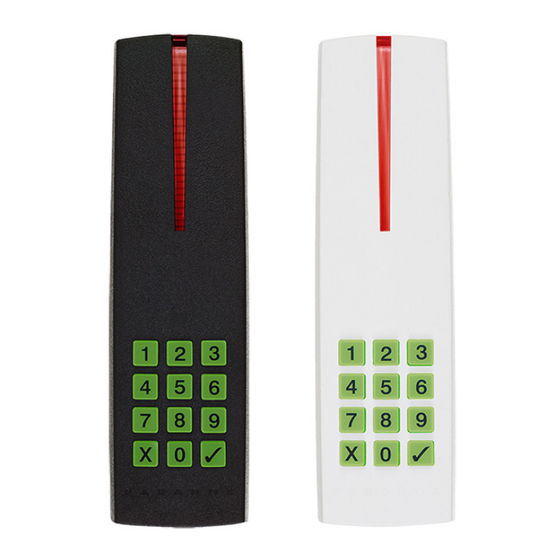

The R915 is a weatherproof 4-wire proximity card reader with a built-in
backlit 12-button keypad for PIN entry. The R915 is compatible with any
Digiplex or EVO control panel and is connected to a ACM12 using only 4
wires to facilitate installation.
Keypad
This reader can use both the Card and PIN functions. However, the PIN must
be entered after the card is scanned if Card and PIN is enabled. You can also
use the Card Only, PIN Only or Card or PIN settings, which are set in the
ACM12. PIN settings are only available with ACM12 V4.0 or higher. The
key is used to cancel a PIN entry, the
Length and entering a code shorter than 6 digits.
Arming and Disarming
It is currently possible to arm and disarm the system if the proper options are
enabled in the User and door's settings. Refer to your EVO programming
guide for additional information.
Tricolour LED Display
The reader includes a tricolour LED display (red, green and amber) that is
used to indicate system status as shown in the LED display table.
Audible Tone
The reader includes a built in beeper.
Weather Resistant
The rubber gasket and plastic PCB cover allows you to mount your R915
indoors or outdoors.
Technical Specifications
Compatibility
Power Input:
Current Consumption
Frequency:
Operating Temperature:
Operating Relative Humidity: 0 -90%
Output Formats:
Cable Distance:
Cables:
Color:
Weather Proofing
All specifications are subject to change without notice.
R915
PARADOX.COM
key is used when using Flexible Code
Card/PIN: ACM12 version 4.0 or higher
11Vdc to 14.5Vdc
60mA
Exciter field 125 KHz Pulse Modulated
-35°C (-31°F) to +65°C (149°F)
4-wire (RS-485)
300m (1000 ft.)
4-wire Cables (Twisted Pair recommended)
Available in black, white and silver
Rubber Gasket and Plastic PCB cover.
Installation
Mounting
Mount the reader on a clean, flat and even surface to avoid bending the
plastic casing. Once mounted, properly seal the reader's contour to avoid
possible water infiltration.
It is highly recommended to mount the reader on a flat, even sur-
face, thereby making it less vulnerable to weather damage. If
mounting on an uneven surface is absolutely necessary, ensure
that all gaps between the reader and surface are properly
sealed.
Mounting on Metal
Metal may decrease the read range. The card reader can be mounted on
metal but do not surround it by metal. If the reader must be installed in a
metal enclosure, ensure that the face of the card reader is not covered and
that there is at least 4cm (1.6") between the card reader and the metal on all
sides.
Connection
Connect the R915 as shown in Figure 1.
Status Display
Status
Wait for PIN
Slow Flash
entry
Read Card
Access Denied
Access Granted
Access
Door Unlocked
Door Locked
Door Left Open
Pre-Alarm
Door Left/
Forced Open
Fire Alarm
Burglary Alarm
Security
Armed
Exit Delay
Fail to Com. Slow Alternating Flash
Safe Mode
Trouble
Lost
shooting
Communication
with ACM11
Locate
* Certain displays can be enabled or disabled with the ACM12.
†Faster in the last 10 seconds of the exit delay
Visual Indicators
Flash 250 ms ON; 250 ms OFF
Slow Flash 400 ms ON; 400 ms OFF
Fast Flash 50 ms ON; 50 ms OFF
Figure 1: Connecting the R915
ACM12 (V4.0 or Higher)
Extra wire should be
placed in the bottom of
the reader and not at the
same level as the antenna
Do not connect more
than one reader on a sin-
gle ACM12.
Visual Indicators*
Green Red Amber
- -
On when
- -
reading
- Fast Flash -
On - -
On - -
- On -
- Flash -
- Fast Flash -
- Pulsed -
- Flash -
- Fast Flash -
- Flash† -
-
Alternating Flash with
-
Pause
Slow
- -
Flash
Fast Flash - -
Details
Connect
RED to (+)
BLK to (-)
GRN to (D0)
YEL to (D1)
R915
Audible
Tone
-
Fast Beep
Long Beep
Fast Beep
-
-
Beep
Fast Beep
Pulsed
Beep
Beep†
-
-
-
-
