636 and 646 Keypads
636
646
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Esprit 636 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paradox Esprit 636

Summary of Contents for Paradox Esprit 636

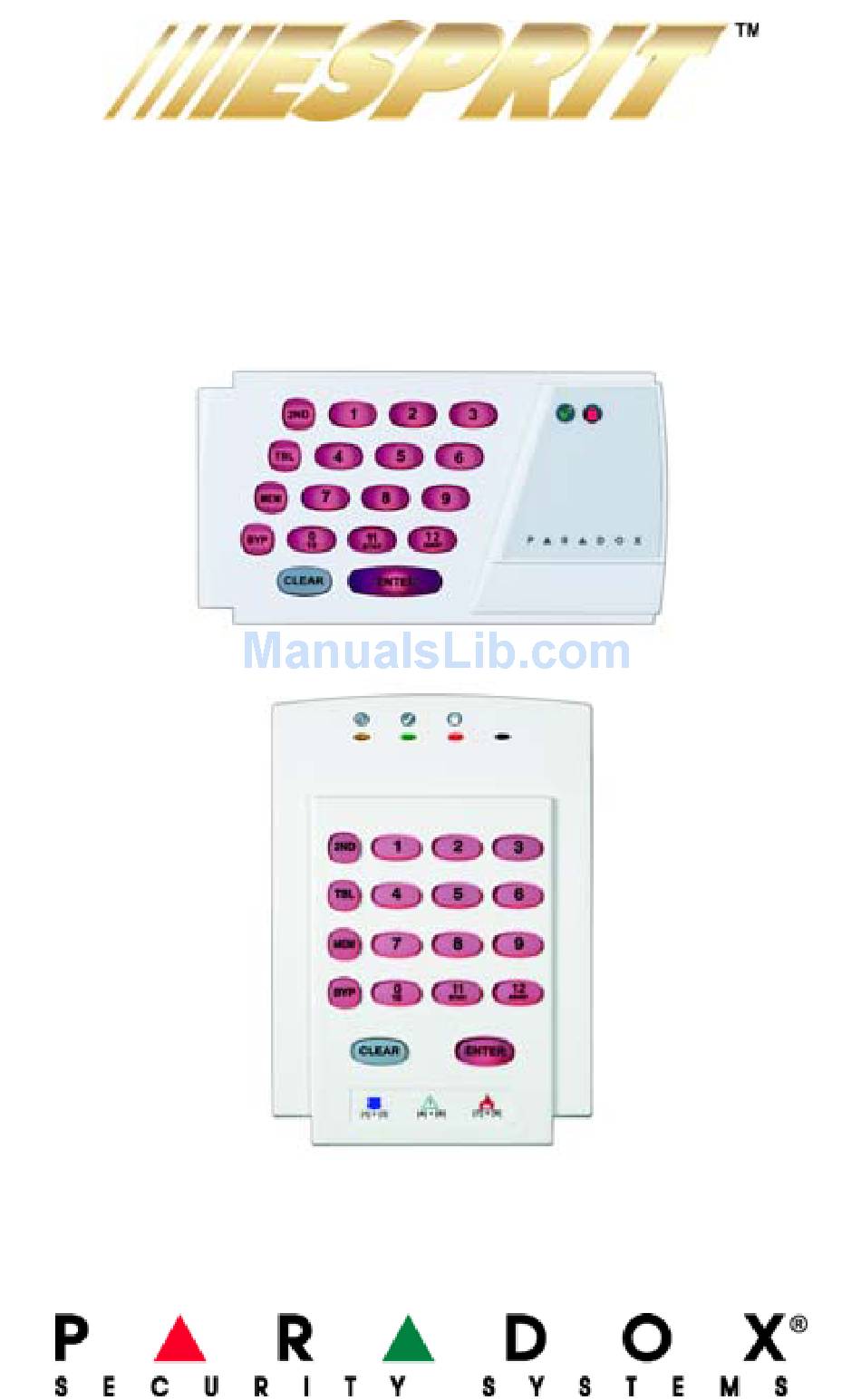

  • Page 1 636 and 646 Keypads User’s Manual...

  • Page 3: Table Of Contents

    Table Of Contents Basic Operation ......2 Access Codes ......... 4 Arming & Disarming....... 5 Panic Zones ........11 Key Access Programming ... 12 Additional Features ...... 13 Trouble Display......14 Fire Alarm Operation....17 System Maintenance ....18 System Checklist......19...

  • Page 4: Basic Operation

    1.0 Basic Operation The Esprit 636 and 646 keypads both function in the same way, but display the visual feedback differently. 1.1 Visual Feedback The numbers, symbols, lights and keys on the keypad communicate the status of your system as described in Figure 1 on page 3.
  • Page 5 keypad is connected to a 738ULT, during an alarm, the [ ] and/or [ ] keys will stop flashing STAY AWAY Figure 1: Overview of the 636 & 646 Keypads 24-zone Display Green READY Light: Zone Keys (Keys 1 to 12): ON = All zones closed ON = Zone open or breached OFF = Zone(s) open...

  • Page 6: Access Codes

    2.0 Access Codes 2.1 Programming User Codes In addition to the master code, the Esprit control panel can be programmed to accept up to 48 user codes. Note: Avoid programming simple or obvious access codes, such as your telephone number, address or codes such as 1234.

  • Page 7: Arming & Disarming

    2.3 Duress Codes The last user code (User 48) can be programmed to report a duress code. If you are forced to arm or disarm your system under threat, a duress code can be entered to produce a silent alarm at the monitoring station.

  • Page 8: Regular System Arming

    3.2 Regular system arming How do I Regular arm the system? 1. The green light must be ON in order to arm the READY system. 2. Enter your user code. After the Confirmation beep, the light and the READY ] and [ ] keys will begin to flash.

  • Page 9: Keyswitch Arming

    seconds. This will automatically Stay arm the system. 3.5 Double Stay Arming: After Stay Arming and during the exit delay, press and hold the [ /11] key to switch any delayed zones to STAY instant zones. Regular arming cancels double stay arming.

  • Page 10: Manual Bypass Arming

    3.8 Manual Bypass Arming This feature arms the system while bypassing zones you wish to leave unarmed. How do I Manually Bypass Arm the system? 1. Press the [ ] key and then enter your User Code. The [ ] key will illuminate as well as any zones that have already been bypassed.
  • Page 11 How do I arm Systems A and B simultaneously? 1. Enter your Access Code. The [ ] key will flash. The light READY STAY AWAY will also begin to flash and the exit timer will begin to countdown. 3.11 Arming System A and B Separately If your Access Code has access to System A: How do I arm System A? 1.

  • Page 12: Disarming System A And B Separately

    3.13 No Movement Supervision Feature Your panel can be programmed to send a report and/ or arm the system if it is not armed and there is no zone activity for a preprogrammed amount of time. 3.14 Automatically Arm on Time Your installer can program your system to arm at a specific time each day.

  • Page 13: Panic Zones

    How do I disarm System B? 1. Enter the designated entry-exit door. The keypad will beep and begin the entry delay timer. 2. Press the [ ] key and then enter a valid access code. AWAY light will go off and the keypad will stop ARMED beeping.

  • Page 14: Key Access Programming

    4.2 Panic 2 - Auxiliary Alarm Pressing keys [4] and [6] simultaneously for 2 sec. will generate a “panic 2” or an “auxiliary alarm”. 4.3 Panic 3 - Fire Alarm Pressing keys [7] and [9] simultaneously for 2 sec. will generate a “panic 3" or a “fire alarm”. 5.0 Key Access Programming Several control panel features can be programmed quickly on the keypad.

  • Page 15: Additional Features

    Feature Description Control Panel Time Programming: When the [ ] key flashes, enter the time using the 24-hour clock (ex: 6 p.m. would be entered as 18:00). Test Report: If programmed by your installer, this feature will send a test report code to the monitoring station.

  • Page 16: Trouble Display

    ] or [ ] to save the setting in system ENTER CLEAR memory. 6.2 Chime Zones A chime zone will emit a rapid intermittent beep tone when it is opened. To turn on the “chime zone” feature, press on the selected zone key for three seconds until the intermittent chime beep is heard.
  • Page 17 trouble conditions are taking place and/or are in memory. Only the troubles that are relevant to you are listed below. If a trouble appears and it is not listed below, call your monitoring station to come service your system. Trouble conditions will remain in memory. Pressing on the [2 ] key displays current trouble conditions.
  • Page 18 How do I reprogram the Timer? 1. Press the [ ] key. ENTER 2. Enter the [ ] or [ 01]. MASTER CODE USER CODE 3. Press the [ ] key. 4. Enter the new time using the 24-hour clock (ex: 8:30PM = 20:30).

  • Page 19: Fire Alarm Operation

    8.0 Fire Alarm Operation Upon a Fire Alarm, the bell/siren will operate in “pulse mode”. To silence or reset a fire alarm, enter a valid user code. Note: IF A FIRE CONDITION EXISTS, FOLLOW YOUR EVACUATION PLAN IMMEDIATELY! If there is no fire condition, contact your monitoring company without delay to avoid an unnecessary response.

  • Page 20: System Maintenance

    planned for a rapid exit from their residence. The following should be considered: • Plan and practice for fire conditions with the focus on rapid exit from the residence. • Drills should be held so that all family members know what to do. •...

  • Page 21: System Checklist

    Open and close protected doors. Observe the zone light. It should come on following each activation. Your installer can advise you of the best way to test your particular system. 9.1.2 Fire Alarm Testing CAUTION: Do not use open flame or burning materials to test your fire detection devices.

  • Page 22: Zone Checklist

    10.2 Zone Checklist Is this a partitioned system? System A =___________System B =____________ Zone # and System Zone # and System Description Description Entry Delay 1 is __________ seconds. Entry Delay 2 is __________ seconds. Exit Delay is __________ seconds. 20 User’s Manual...

  • Page 23: User Access Code List

    10.3 User Access Code List User Name System User Name System Esprit Keypads 21...
  • Page 24 User Name System User Name System 22 User’s Manual...
  • Page 25 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
  • Page 26 NOTES __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ __________________________________________ 24 User’s Manual...
  • Page 28 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-2313 paradox.com PRINTED IN CANADA - 06/2006 K6X6-EU12...
