Compatibility
The K32+ is compatible with Magellan and Spectra series control panels only. Please
refer to the
section for more details.
Technical Specifications
Technical Specifications
Operating Voltage 9 to 16Vdc
Operating Temp. -10 to 55°C (14 to 131°F)
Power Consumption Maximum current - 150mA
Dimensions 15 x 12.6 x 2.7 cm (6 x 4.9 x 1.06 in.)
Weight 230g (8.1 oz)
Humidity 5-93%
Compatible with MG5000, MG5050, and Spectra SP series
Compatibility
V2.31 or higher and SP4000, SP65 V4.90 or higher.
EN50131-3 Grade 2; Environmental Class II
Compliance
Certification Body: Applica Test and Certification
Warranty
Warranty: For complete warranty information on this product, please refer to the Limited Warranty
Statement found on paradox.com. Your use of the Paradox product signifies your acceptance of all
warranty terms and conditions.
© 2019 Paradox Ltd. All rights reserved. Specifications may change without prior notice.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Printed in Canada | 05/2019

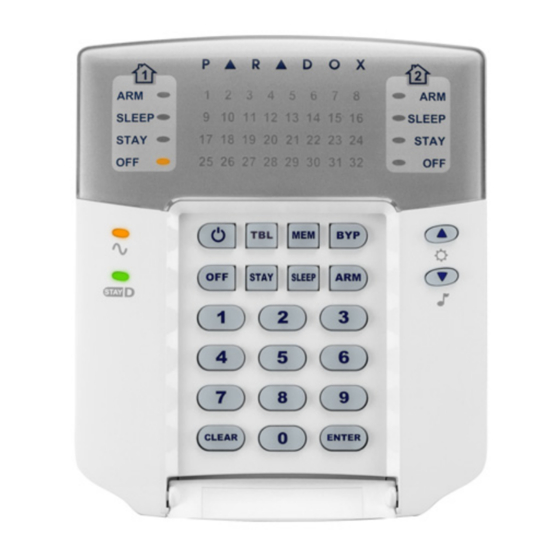

K32+ Keypad
Quick Install Guide
The K32+ keypad allows you to configure your Paradox system through its interface.
Installation
1.
Using a flathead screwdriver, pry the front housing assembly from the
backplate.
Figure 1: Opening the K32+
K32+-EI02
PARADOX.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Paradox K32+
Summary of Contents for Paradox K32+
- Page 1 Warranty: For complete warranty information on this product, please refer to the Limited Warranty Using a flathead screwdriver, pry the front housing assembly from the Statement found on paradox.com. Your use of the Paradox product signifies your acceptance of all warranty terms and conditions.
- Page 2 If using surface mounted cabling, you will need to knock out the plastic tab (#1) Connect the 4-wire combus wires to the connector bus, as shown. at the top or bottom of the K32+ backplate in order to for the cable to pass through, refer to Figure 3.
