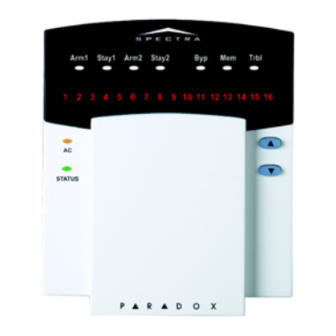

Paradox Spectra 1689 User Quick Reference Manual
  1. Manuals
  2. Brands
  3. Paradox Manuals
  4. Keypad
  5. Spectra 1689
  6. User quick reference manual

Paradox Spectra 1689 User Quick Reference Manual

Hide thumbs Also See for Spectra 1689:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
Arm Lights
(for Regular & Force arming)
ON
= area 1 or 2 armed
OFF
= area 1 or 2 disarmed
FLASH = area 1 or 2 in alarm
AC Light
ON
= AC power
OFF
= power failure
Status Light
Green
ON
= zones closed
OFF
= zone(s) open
FLASH = exit delay
Red (1641BL only)
ON
= system armed
FLASH = stay armed
FAST FLASH = alarm
LCD Screen
Messages on the LCD screen
will guide you through the
operations.
Made a mistake?
Press [
] to delete an entry
CLEAR
or revert to last step.
User Quick Reference Guide
1689 LED Keypad / 1641BL LCD Keypad

KEYPAD OVERVIEW

1689 LED Keypad
1641BL LCD Keypad
Stay Lights
(for Stay & Instant arming)
ON
= area 1 or 2 armed
OFF
= area 1 or 2 disarmed
FLASH = area 1 or 2 in alarm
Zone Display
The numbers represent zones 1
to 16. When illuminated, the
zones are open or breached.
FNC1 Key
Your system may have one or
more home-automation options.
One of these options may be
triggered directly from the
keypad. Press and hold [
3 seconds to activate:
___________________________
(i.e. reset smoke detector,
activate lights, etc.)
Arrow Keys
Use the arrow keys to scroll
menu or choices.
1] for
FNC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectra 1689 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paradox Spectra 1689

Summary of Contents for Paradox Spectra 1689

  • Page 1 User Quick Reference Guide 1689 LED Keypad / 1641BL LCD Keypad KEYPAD OVERVIEW Arm Lights Stay Lights (for Regular & Force arming) (for Stay & Instant arming) = area 1 or 2 armed = area 1 or 2 armed = area 1 or 2 disarmed = area 1 or 2 disarmed FLASH = area 1 or 2 in alarm FLASH = area 1 or 2 in alarm...
  • Page 2 PANIC ALARMS ALARM MEMORY DISPLAY To send a silent or audible alarm to your To view the alarms that occurred during monitoring station, press and hold one of the last armed period: the key combinations listed below for 3 seconds. 1.
  • Page 3 BYPASS PROGRAMMING CLOCK PROGRAMMING Bypassed zones are not armed when the 1689: Set the system clock. area is armed. 1. Press [ ENTER 2. Enter the [ SYSTEM MASTER CODE 1. Press [ ] and then enter your 3. Enter [100]. ACCESS CODE 4.
  • Page 4 * If needed, press the key(s) corresponding to the desired area(s). For two areas, press the other key after the confirmation beep. † The One-Touch Arming feature must be enabled by your installer. Security Company: www.paradox.ca PRINTED IN CANADA - 01/06 1689_41-EQ01...
