AC LIGHT
ON= AC Power
OFF= Power failure
STATUS LIGHT
When green:
ON= Zones closed OFF=
Zone(s) open Flash= Exit
delay
When red:
ON= Area(s) armed OFF=
Area(s) disarmed Flash=
Alarm
1.Enter your [ACCESS CODE] and then:
To Regular Arm: Press the [ARM] key
(Arms entire area when all zones are closed).
To Force Arm: Press the [FORCE] key
(Arms entire area without waiting for all zones to close)
To Stay Arm: Press the [STAY] key
(Arms area's perimeter only, which allows you to remain in the protected area)
To Instant Arm: Press the [5] key
(Stay arms the area but an alarm will occur instantly any zones open)
2.Select the desired area or press the [0] key for all areas
User Quick Reference Guide

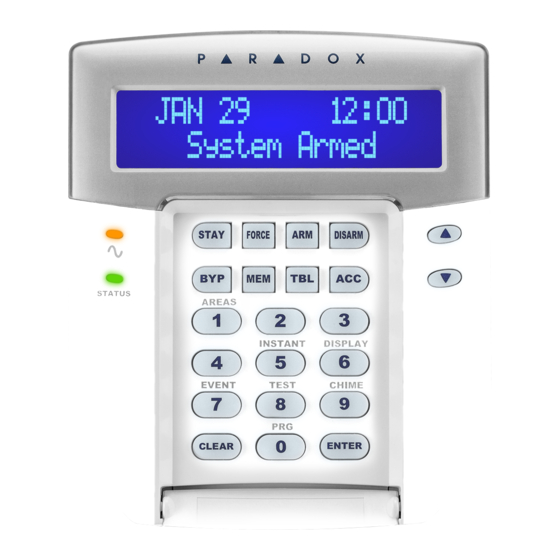

LCD Keypad
= Erases current data entry or reverts to the preceding step
[CLEAR]
[ENTER]
= Saves current data and exits current menu
HOW TO ARM
The LCD will guide you
with detailed messages.
Use the arrow keys to
scroll the menu or choices.
Press the corresponding
one-touch button for 2
seconds to perform an
action without entering
your Access Code.
Advertisement
Related Manuals for Paradox EVO K641R
Summary of Contents for Paradox EVO K641R
- Page 1 User Quick Reference Guide AC LIGHT The LCD will guide you ON= AC Power with detailed messages. OFF= Power failure STATUS LIGHT Use the arrow keys to scroll the menu or choices. When green: ON= Zones closed OFF= Press the corresponding Zone(s) open Flash= Exit one-touch button for 2 delay...
- Page 2 HOW TO DISARM To Disarm when entering: To Disarm from within the perimeter: 1.Enter your [ACCESS CODE] and then 1.Enter your [ACCESS CODE] 2.Select the area(s) if necessary press the [DISARM] key 2.Select the area(s) if necessary PANIC KEYS To send a silent or audible alarm to your security company, press and hold one of the key combinations listed below for two seconds.
