ASSEMBLY INSTRUCTIONS
RiverRidge

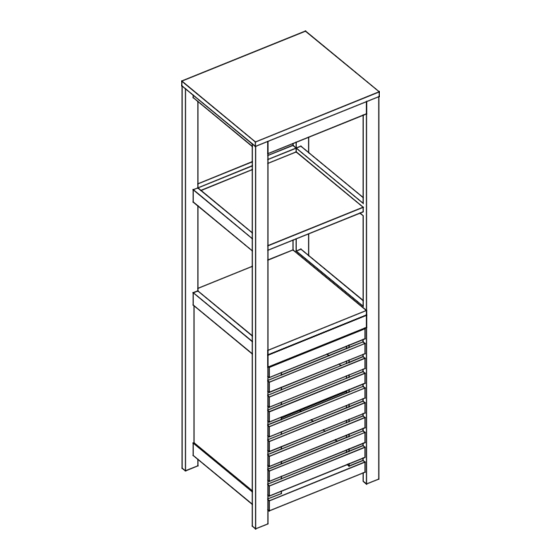

Bayfield Linen Tower with Open Shelves
®
ITEM #: 06-116 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge Bayfield 06-116 White
Summary of Contents for RiverRidge Bayfield 06-116 White
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Bayfield Linen Tower with Open Shelves ® ITEM #: 06-116 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 100 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 100 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 100 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
- Page 3 DESCRIPTION Top Board Left Side Panel Right Side Panel 2PCS Upper Front Cross Bar Adjustable Shelf Shelf Rear Cross Bar Bottom Board Back Board Door Shelf...
- Page 4 16PCS Cam Bolt 16PCS Cam Lock 26PCS Wood Dowel (6 x 30mm) Shelf Holder 4PCS 2PCS Hinge Screw (4 x 35mm) 4PCS 8PCS Screw (4 x 12mm) 2PCS Screw (4 x 30mm) Plastic Anchor 2PCS 10PCS Screw (2.5 x 10mm) 2PCS Screw (4 x 12mm) 2PCS...
- Page 5 STEP 1 1. Insert 6 cam bolts (A) into pre-threaded holes on left side panel (2). 2. Insert 6 cam bolts (A) into pre-threaded holes on right side panel (3). STEP 2 1. Insert 4 cam bolts (A) into pre-threaded holes on top board (1). 2.
- Page 6 STEP 4 1. Attach 2 hinges (E) to door (10) by inserting 4 screws (G) through holes on hinges (E), then tighten to door (10). STEP 5 1. Insert 9 wood dowels (C) into wood dowel holes on left side panel (2). 2.
- Page 7 STEP 6 1. Insert 9 wood dowels (C) into wood dowel holes on right side panel (3). 2. Attach right side panel (3) to upper front cross bars (4), shelf (6), rear cross bar (7), bottom board (8) and shelf (11) by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on upper front cross bars (4), shelf (6), rear cross bar (7), bottom board (8) and shelf (11).
- Page 8 STEP 8 1. Attach back board (9) to back of cabinet by inserting 10 screws (J) through holes on back board (9) then tighten to cabinet. STEP 9 1. Insert 4 shelf holders (D) into desired position. 2. Place adjustable shelf (5) onto 4 shelf holders (D), making sure all 4 shelf holders are at same height.
- Page 9 STEP 10 G×2 G×2 1. Attach door (10) to cabinet by inserting 4 screws (G) through holes on hinges (E) then tighten to right side panel (3). 2. Note: Tightening screw in position “a” will adjust door up or down; tightening screw in position “b”...
-
Page 10: Care Instructions
STEP 11 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall Position cabinet against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (L). Move cabinet away from wall and screw 2 plastic anchors (I) into wall on pencil marks. Place cabinet against wall, insert 2 screws (H) through holes on metal brackets (L), then tighten to plastic anchors (I). - Page 11 Cabinet! Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi - rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com RiverRidge ®...
