Visonic CLIP MCW Installation Instructions Manual

Visonic CLIP MCW Installation Instructions Manual

Wireless curtain-type powercode infrared detector

Advertisement

CLIP MCW
CLIP
MCW / / / / CLIP T MCW
CLIP
CLIP
MCW
MCW
Wireless Curtain-Type PowerCode Infrared Detector
1. INTRODUCTION
1. INTRODUCTION
1. INTRODUCTION
1. INTRODUCTION
The CLIP MCW is the smallest and most elegant wireless curtain-
pattern PIR detector for indoor use and designed for easy installation.
Its function is based on new and sophisticated, patented FM data
acquisition and digital signal processing.
Modern technology is used to include 3 different detectors in a single
case, each programmable for optimized performance at the specific
mounting location. This results in better catch performance and
virtually no false alarms.
The superiority in performance of this detector is achieved by
applying an improved version of the patented True Motion
Recognition™ (TMR) algorithm. This advanced motion analysis
method allows the CLIP MCW to distinguish between the true motion
of the human body and any other disturbances that cause false
alarms.

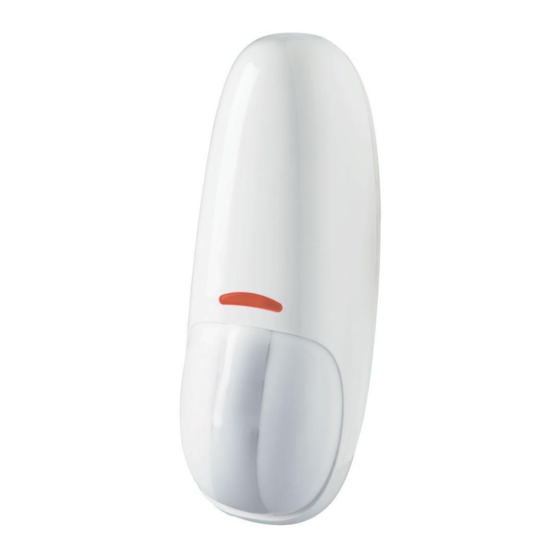

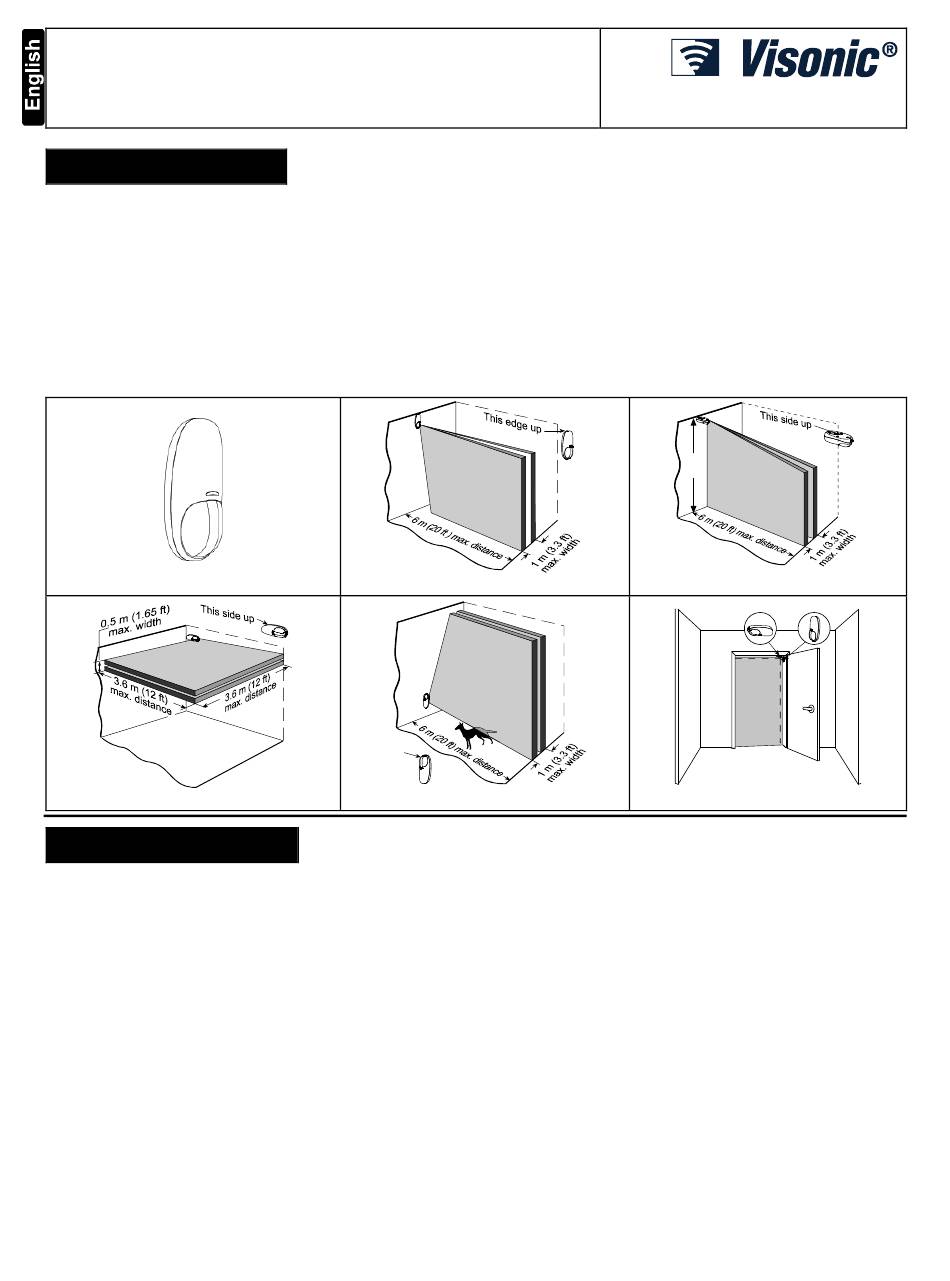

Figure 1. CLIP MCW General View
Figure 4. Overhead Curtain
2. SPECIFICATIONS
2. SPECIFICATIONS
2. SPECIFICATIONS
2. SPECIFICATIONS
OPTICAL
Detector Type: Dual-element low noise pyroelectric sensor.
Number of Curtain Beams: 2
Mounting Positions: See Figures 2 through 6.
Range Settings: Long (6 m), Medium (4 m) and Short (1.2 - 2m)
(Jumper-selected).
ELECTRICAL
Internal Battery: 3V Lithium battery, type CR123A. For UL
installations, use Panasonic or Sanyo only.
Nominal Battery Capacity: 1450 mA/h.
Battery Life (with LED on): 3 years (for typical use).
Battery Power Test: Performed immediately upon battery insertion
and periodically every several hours.
Microprocessor: 8-bit, low power CMOS.
FUNCTIONAL
Visual Indications:
LED Lights for about 3 seconds upon transmission of alarm &
tamper messages and upon motion detection in the walk test
mode.
LED Flashes during the power-up stabilization period (approx. 2
min), or after restoring the cover (by pressing the tamper switch).
LED Does not light upon transmission of supervision messages.
Alarm Period: Approx. 3 seconds.
Rearm Timer: Rearms the detector 2 minutes after the last alarm.
DE3594 CLIP MCW / CLIP T MCW Installation Instructions
CLIP T MCW
CLIP T MCW
CLIP T MCW
After detection, the detector disarms itself to save battery power. It
rearms (reverts to the ready state) if there is no subsequent detection
throughout the following 2-minute period.
The CLIP MCW includes the following features:
• Very low current consumption
• Microprocessor-controlled temperature compensation
• Sealed chamber protects the optical system
• Front cover tamper switch
• Back tamper switch (CLIP T MCW)
• White light protection
• Elegantly styled, sturdy case
Detailed coverage patterns and mounting alternatives are illustrated
in Figures 2 through 6.
Figure 2. Wall-Mount Curtain
This
side
up
Figure 5. Curtain / Pet Alley
WIRELESS
Frequency (MHz): 315 (U.S. version), 433.92, 868.95, 869.2625 or
other frequency according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals within 3
seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored.
Supervision Message: Signaling at 60-minute intervals (U.S.
version), 15 minute intervals (UK version), or according to the local
standards.
MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft).
Installation Options: See Figures 9 through 13.
ENVIRONMENTAL
Operating Temperature: -10° C to 50° C (14° F to 122° F).
Storage Temperature: -20° C to 60° C (-4° F to 140° F).
RFI Protection: > 20 V/m to 1000 MHz.
Compliance with standards:
Europe: EN 300220, EN 301489, EN 60950, EN 50131-2-2 Grade 2
Class II
USA: @ 315 Mhz complies with CFR 47 part 15 (FCC)
Canada: RSS210
Installation Instructions
2.4m
Figure 3. Ceiling-Mount Curtain
OPTION B
OPTION A
DETECTION
CURTAIN
Figure 6. CLIP MCW on Internal Doorframe
1
