L&W SC-600 ES Operating Instructions Manual
  1. Manuals
  2. Brands
  3. L&W Manuals
  4. Air Compressor
  5. SC-600 ES
  6. Operating instructions manual

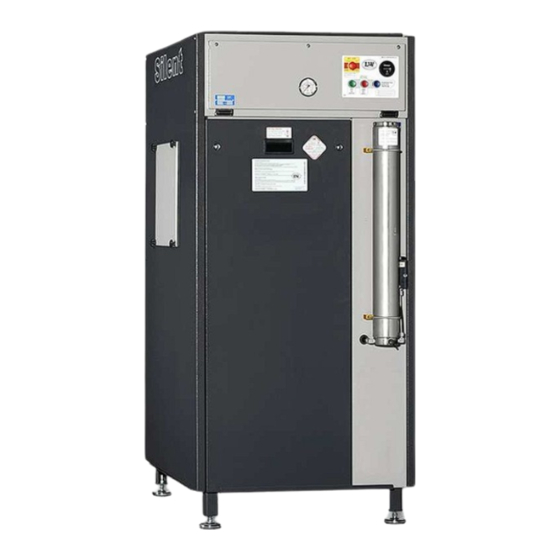

L&W SC-600 ES Operating Instructions Manual

Breathing air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
C H A P T E R O V E R V I E W
Operating Instructions
............................................................................................................................................................
Spare Parts Lists
..........................................................................................................................
............................................................................................................................................................
Attachment
....................................................................................................................................
Manufacturer in terms of 2014/68/EU
The full name and address of the manufacturer is:
Lenhardt & Wagner GmbH
An der Tuchbleiche 39
68623 Hüttenfeld / Germany
Phone: +49 (0) 62 56 - 85 88 0 - 0
Fax: +49 (0) 62 56 - 85 88 0 - 14
E-Mail: service@lw-compressors.com
Internet: www.lw-compressors.com
...............................................................................................................
A
B
C
D
E
