The content of this chapter should be thoroughly read and un-
derstood since it describes methods of measurements and basic
principles of interpreting measurement results.

5.1 Current measurement

WARNING
Disconnect the test leads before measuring current us-
ing clamp.
To perform the current measurement:
 set the rotary switch at 600A
 press MODE/INRUSH button to display the following symbol:

, if you are measuring alternating current,

, if you are measuring direct current,

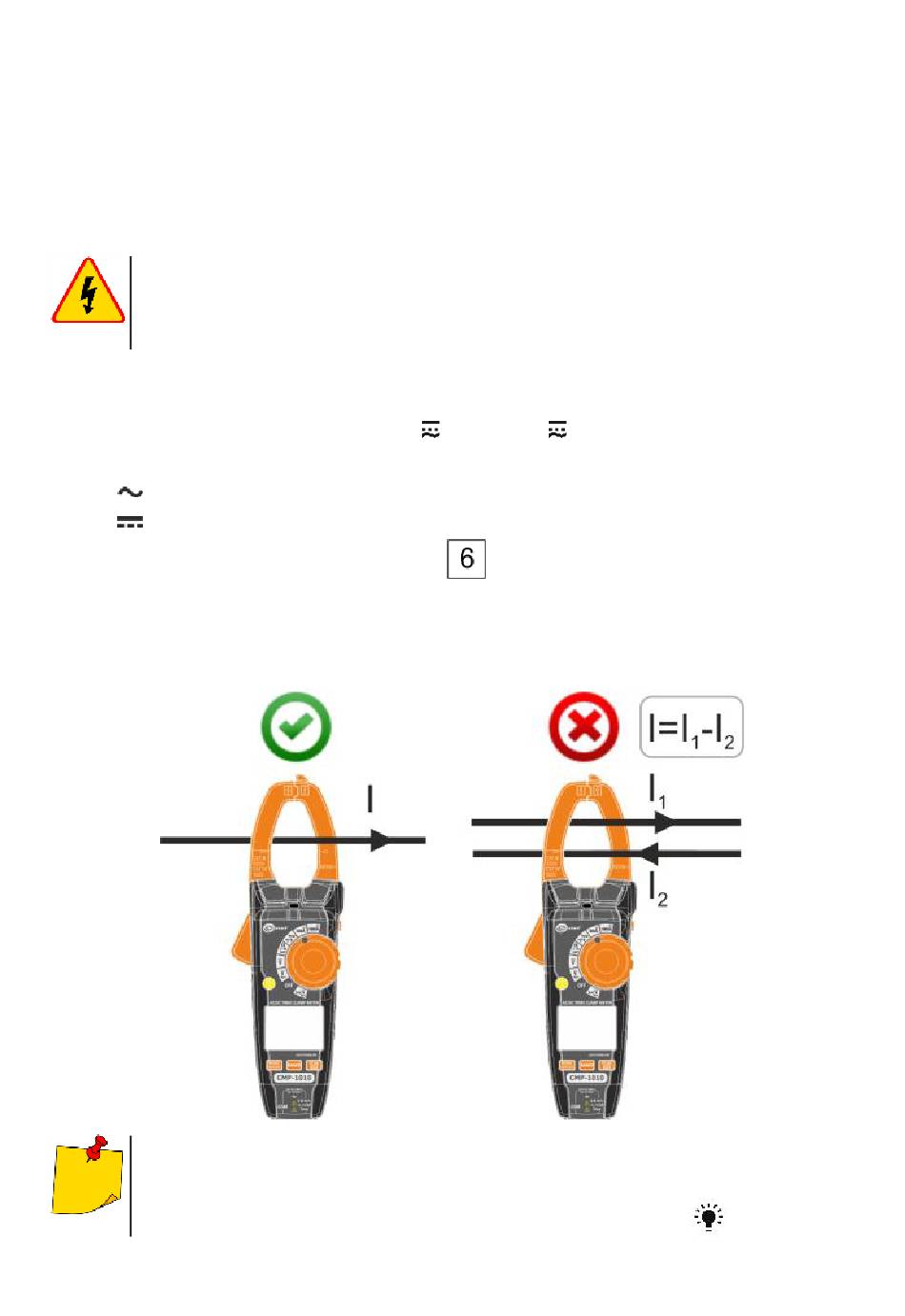

 use the clamp-opening trigger
tested conduit. Only one conduit must be within the testing range
of the clamps,
 read the measurement result on the display.
If DC current is measured and the meter is not attached to
the tested circuit, but it still indicates a non-zero value, then
you must reset it by pressing and holding

5 Measurements

/ 1000A
CMP-1010 – USER MANUAL
,
and attach the clamps on the
REL
button.
