- Page 1 OPERATING MANUAL MINI AC LEAKAGE CURRENT METER CMP-200 Version 1.7...
- Page 2 The CMP-200 digital clamp meter has been designed for the purpose of clamp measurements of alternative leakage current. Main features of the CMP-200 device are the following: • high resolution up to 0,1mA AC, • auto power off, • 3½ digits display, •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........... 4 SAFETY ..............5 PREPARATION OF THE TESTER FOR OPERATION ............6 FUNCTIONAL DESCRIPTION......7 MEASUREMENTS..........9 ...........9 CURRENT MEASUREMENTS DATA HOLD F ............10 UNCTION ..............10 ACKLIGHT DISPLAY DATA MAX HOLD F ..........10 UNCTION REPLACEMENT OF THE BATTERIES ..11 CLEANING AND MAINTENANCE .... -
Page 4: Introduction
1 Introduction We appreciate your having purchased our digital clamp AC leakage current tester. The CMP-200 meter is a modern, high- quality measuring device, which is easy and safe to use. Please acquaint yourself with the present manual in order to avoid measuring errors and prevent possible problems related to operation of the tester. -
Page 5: Safety
WARNING: The CMP-200 tester may be operated solely by qualified and properly authorised personnel work electric installations. Using the tester by unauthorised personnel may lead to its damage and constitutes a source of a serious risk for the user. 2 Safety... -
Page 6: Preparation Of The Tester For Operation
WARNING: Do not realise measurements in environments in which there are inflammable gases. Otherwise operation of the tester under such conditions may cause sparking and explosion. 3 Preparation of the tester for operation Having purchased the tester examine completeness of the contents of the package. -
Page 7: Functional Description

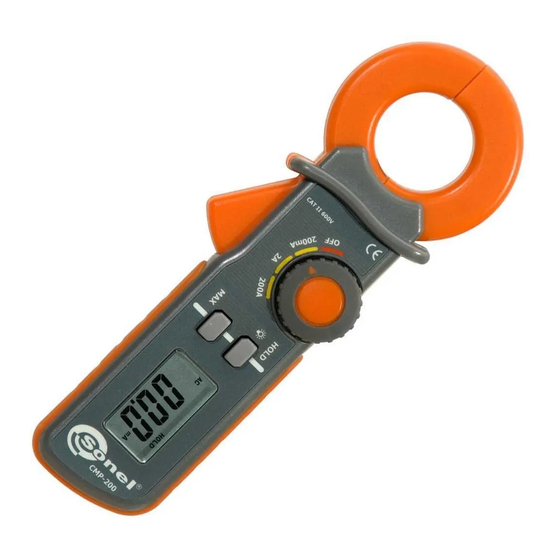

4 Functional description CMP-200... - Page 8 current clamp rotational selector • OFF – tester off • 200mA, 2A, 200A – measurement ranges HOLD button • Data Hold function • Back Light function LCD display clamp trigger data MAX hold function...
-
Page 9: Measurements
5 Measurements AC current measurements WARNING: Do not take current readings on circuits where the maximum current potential is not known. Do not exceed the maximum allowable input range while measuring current. WARNING: Do not realise measurements if the battery compartment is open. -
Page 10: Data Hold Function
Leakage current measurements Load current measurements DATA HOLD Function To freeze the LCD tester reading, press the HOLD button. The word HOLD will appear on the LCD while the tester is in the Data Hold mode. To release the Data Hold function and return the tester to normal operation, press the “Hold Backlight”... -
Page 11: Replacement Of The Batteries
6 Replacement of the batteries The CMP-200 tester is supplied by means of two 1.5V AAA batteries. It is recommended to use alkaline batteries Attention: When making measurements with a battery's mnemonic on, must take into account additional indefinite measurement uncertainty or unstable working of the meter. -
Page 12: Attachments
Worn-out electronic equipment should be sent to a collection point in accordance with the law of worn-out electric and electronic equipment. Before the equipment is sent to a collection point, do not dismantle any elements. Observe the local regulations concerning disposal of packages, worn-out batteries and accumulators. -
Page 13: Standard Equipment
SONEL S. A. ul. Wokulskiego 11 58-100 Świdnica Tel: +48 74 858 38 60 Fax: +48 74 858 38 09 E-mail: export@sonel.pl Web page: www.sonel.pl Note: Service repairs must realised solely manufacturer. Made in China for SONEL S.A.
