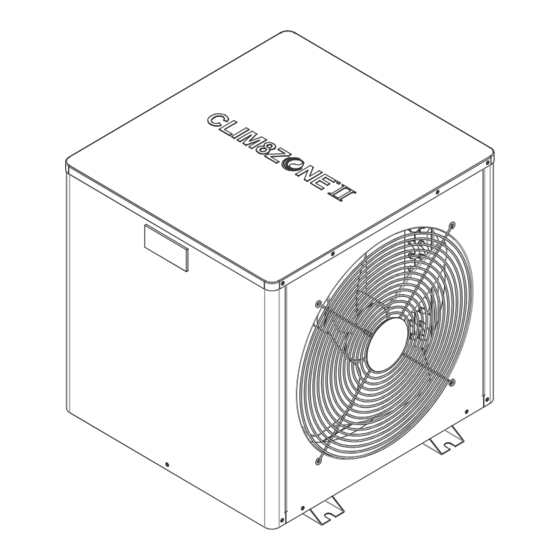

- Page 1 CLIM8ZONE II – 230V INVERTER Heat Pump for Spas User and Service manual Spa Heat Pump...
- Page 3 User and Service Manual (standalone mode) INDEX 1. Specifications 2. Dimension 3. Installation and connections 4. Electrical Wiring 5. Display Controller Operation 6. Maintenance SAFETY INSTRUCTIONS: This manual contains all the necessary information for the use and installation of your heat pump 1.
- Page 4 DANGERS: Disregarding the following instructions will result in serious injury or even death The heat pump utilizes high voltage and rotating equipment, so use caution when servicing. Always turn off the power supply before opening the cabinet to access the interior of the heat ...
- Page 5 1. Specifications 1.1 Technical data 230V Clim8zone II – Compact Heat Pump for Spas Product model C8ZII-230V Advised spa volume （ m ） (with cover) 5-15 Heating operating ambient temperature range （ ℃ ） -5 ~43 Cooling operating ambient temperature range （ ℃ ）...
- Page 6 2. Dimensions (mm) unit: mm...
- Page 7 2.2 Exploded View...
- Page 8 3. Installation and connections 3.1 Notes The factory supplies only the heat pump. All other components must be provided by the user or the installer. Install a bypass if the water flow from the water pump is more than 20% greater than the allowable flow through the heat exchanger of the heat pump.
- Page 9 3.4.1 Plumbing diagram 3.4.2 Check-valve installation (recommended) If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to protect the heat pump against excessively high chemical concentrations which may corrode the heat exchanger. For this reason, equipment of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is recommended to install a check-valve to prevent reverse flow in the absence of water circulation.
- Page 10 The amount of condensation may be as much as several litters per hour at high relative humidity. This is condensation water, not leaked water. 4. Electrical Wiring 4.1 CLIM8ZONE II HEAT PUMP WIRING DIADRAM...
- Page 11 5. Controller Panel Operation 5.1 Controller Panel Display: 5.2 Button Descriptions: Description Turn ON/OFF the controller panel Increase the setting values. Decrease the setting values. Change modes. Red LED On Heating mode Green LED On Cooling mode Red LED flashing Defrosting mode Red &...
- Page 12 0~1590 Unit operation mode 0：AP* mode/1: BP** mode * AP = Standalone; ** BP = Integrated with Balboa BP Spa Controller 7. Change Unit operation mode Long press two buttons for 15 seconds at the same time to switch between AP and BP modes;...
- Page 13 System parameter table Parameter Parameter name Adjust range Default value code 1℃~18℃ 1℃ Return Difference for Target Water Temp. Reserved Reserved Cooling setting temp. 8℃~28℃ 27℃ Heating setting temp. 15℃~40℃ 27℃ P06=TP4 The setting temp. that Exhaust 80℃~125℃ 110℃ temp. too high protection P07=TP0 Recover The setting temp.
- Page 14 （ Communication with cables between the main board Balboa system failed） and Balboa system 3. Check whether the Balboa system software matches 1. Replace the main board or Communication fault of 1. The mainboard or driver board driver board frequency conversion damaged 2.
- Page 15 damaged Exhaust too high 1. Less refrigerant or leakage 1. Refill the refrigerant protection 2. The system blocked 2. Replace the filter 3. Compressor refrigerant oil is 3. Add refrigerant oil to the insufficient compressor 4. The resistance value of the 4.
- Page 16 the motor U,V,W in ohmic gear to ensure no short circuit Replace frequency conversion module 4. Replace the compressor Ensure that ring compressor synchronous compressor temperature, water abnormal overloaded instantaneously 2. The compressor does not temperature, water flow, etc. are within the operating range of match the program the unit;...
- Page 17 communication cable stability between the mainboard and Replace internal the driver board is in poor components contact or falls off 3. Replace the power module 2. Internal components of the heat pump damaged 3. The output voltage of the power supply board in the module abnormal output...
- Page 18 6. Maintenance 1. Check the water supply system regularly to avoid the air trapped in the system and occurrence of low water flow, because it would reduce the performance and reliability of heat pump. 2. Clean your spa and filtration system regularly to avoid the damage of the unit as a result of the dirty of clogged filter.
