BRIO Moderna CLPOU720UVRO4 Setup Manual

Point of use water dispenser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Point of Use
Water Dispenser
Setup Manual
Model No.: CLPOU720UVRO4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Moderna CLPOU720UVRO4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRIO Moderna CLPOU720UVRO4

Summary of Contents for BRIO Moderna CLPOU720UVRO4

  • Page 1 Point of Use Water Dispenser Setup Manual Model No.: CLPOU720UVRO4...

  • Page 2: Table Of Contents

    Table of Contents Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Intended Use .

  • Page 3: Safety Information

    Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser. WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal injury.

  • Page 4: Product Features

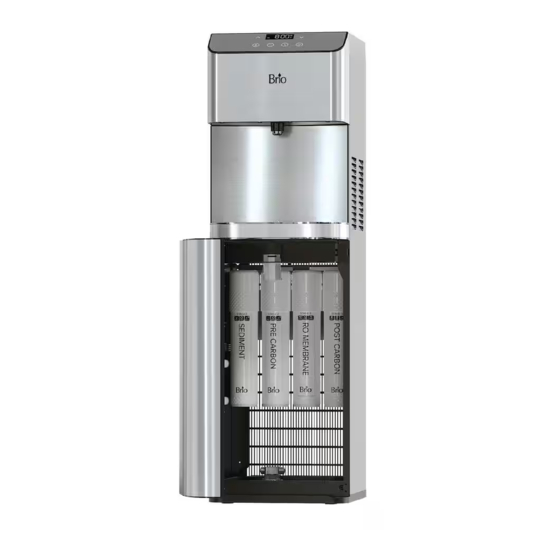

    Product Features Part Description Part Description Touch panel display RO pump Water tap Night light switch Drip tray Cold water switch Filter cabinet Hot water switch Sediment filter Condenser Pre carbon filter Drain outlet Reverse osmosis (RO) filter RO water inlet Post carbon filter Water outlet Product Dimensions...

  • Page 5: Touch Panel Description

    Touch Panel Description No . Description Up arrow button Change PCB filter icon Change RO filter icon LED display Self-cleaning UV icon Down arrow button Lock button Hot water button TDS button Cold water button TDS Reduction Rates Dispensed water should see a TDS reduction rate of up to 90%. Refer to the following table for estimated before and after TDS levels.

  • Page 6: Package Contents

    Package Contents Part Description Quantity Part Description Quantity Feed water adapter Filter flushing tube (with extra nut) Shut-off valve tube Plumber’s tape (7 ft.) Drain saddle with Filter housing (for foam gasket filter flushing) RO water outlet tube Filters Materials Needed Wrench Electric drill with 1/4 in.

  • Page 7: Installation

    Installation 1 . Determine Installation Location Place the dispenser upright. Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet. NOTICE: Do NOT plug in the power cord until the entire installation section is completed.

  • Page 8: Make The Reverse Osmosis Waste Connections

    Gently tug on the tube (B) to ensure a secure connection with the feed water adapter (E). 3 . Make the Reverse Osmosis Waste Connections The “RO” filter assembly requires a drain line connection to be installed, which removes rejected water to the sewer. The drain saddle connects the drain line from the dispenser to your drain pipe.

  • Page 9: Flush The Filters

    4 . Flush the Filters Follow this procedure each time you replace your filters. IMPORTANT: Ensure water supply is off before you begin. IMPORTANT: Flush ONLY the sediment, pre carbon, and post carbon filters. The reverse osmosis (RO) filter should not be flushed. Connect a filter (D) to the filter housing (C) by twisting the filter (D) clockwise.

  • Page 10: Install The Filters And Complete The Installation

    5 . Install the Filters and Complete the Installation After flushing, twist each filter (D) clockwise into the filter housings located inside the dispenser cabinet. The sediment filter goes on the left, followed by the carbon, RO, and post carbon filter. Remove the safety plug from the water inlet hole on the back of the dispenser by pushing in the inlet hole...

  • Page 11: Operation

    Operation IMPORTANT: This unit has been tested and sanitized prior to packing and shipping. During transit, dust and odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior to drinking any water. Turn the Dispenser On/Off IMPORTANT: Before you activate the hot and cold switches, ensure water has filled the tanks inside the...

  • Page 12: Set The Hot Water Temperature Level

    Set the Hot Water Temperature Level You can select from 3 different hot water dispensing temperature levels: H1 (hot), H2 (hotter), and H3 (hottest). Temperature Level Dispensing Temperature Range 178°F to 184°F 184°F to 190°F 190°F to 196°F NOTE: The default temperature dispensing level for hot water is H3 (hottest). To change the hot water temperature dispensing level, please do the following: Simultaneously press and hold the lock and hot water buttons for 3 seconds.

  • Page 13: Troubleshooting

    Troubleshooting Problem Solution • It takes up to one hour after setup to dispense cold water. • Make sure the power cord is properly connected to a working outlet. • Make sure the back of the dispenser is at least 8 in. (20 cm) from a wall The cold water is not cold.

  • Page 14: Filter Replacement Schedule

    Filter Replacement Schedule Filter Type Model No . Replacement Schedule Function Performs a coarse filtration of original Sediment NFMPP5M 6–12 months or 3,600 liters water. Removes mud, sand, iron, rust, suspensions and impurities. Reduces chlorine, taste and odor, lead Pre Carbon NFMGAC 6–12 months or 3,600 liters and cysts.

  • Page 15: Warranty

    Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship.
  • Page 16 Contact Us Call: +1 844-257-4103 ©2023 Brio Water Technology, Inc.
