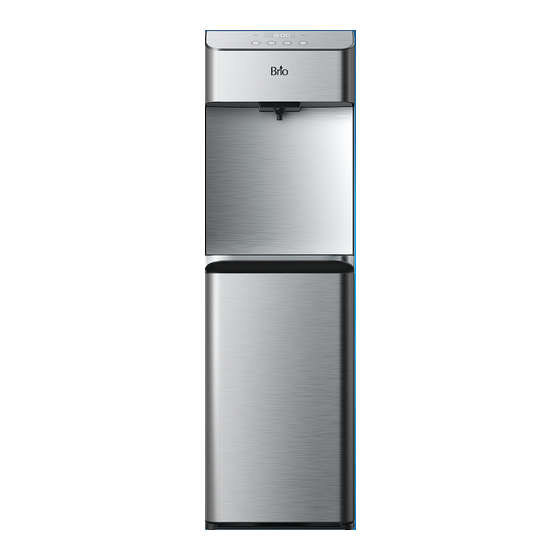

BRIO Moderna CLPOU730UVRO4 User Manual

Point-of-use water dispenser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Point-of-Use Water Dispenser
User's Manual
Model: CLPOU730UVRO4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Moderna CLPOU730UVRO4 and is the answer not in the manual?

Questions and answers

Related Manuals for BRIO Moderna CLPOU730UVRO4

Summary of Contents for BRIO Moderna CLPOU730UVRO4

  • Page 1 Point-of-Use Water Dispenser User’s Manual Model: CLPOU730UVRO4...

  • Page 2: Table Of Contents

    Table of Contents Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Intended Use .

  • Page 3: Safety Information

    Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser . WARNING: This product dispenses water at very high temperatures . Failure to use properly can cause personal injury .

  • Page 4: Intended Use

    Intended Use This appliance is intended to be used in household and similar applications such as: • Staff kitchen areas in shops, offices and other working environments Farm houses • Hotels, motels and other residential-type environments • Bed-and-breakfast environments • Catering and similar non-retail applications •...

  • Page 5: Touch Panel Description

    Touch Panel Description No . Description Up arrow button Change PCB filter icon Change RO filter icon LED display Self-cleaning UV icon Water production icon Down arrow button Lock button Hot water button TDS button Cold water button TDS Reduction Rates Dispensed water should see a TDS reduction rate of up to 90% .

  • Page 6: Technical Specifications

    Technical Specifications CAUTION: This unit dispenses water at temperatures that can cause severe burns . Avoid direct contact with hot water . Keep children and pets away from unit while dispensing . Never allow children to dispense hot water without proper and direct supervision . Unplug unit to prevent unsupervised use by children .

  • Page 7: Installation

    Installation 1 . Determine Installation Location Place the dispenser upright . Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet . NOTICE: Do NOT plug in the power cord until the entire installation section is completed .

  • Page 8: Make The Reverse Osmosis Waste Connections

    Gently tug on the tube (B) to ensure a secure connection with the feed water adapter (E) . 3 . Make the Reverse Osmosis Waste Connections The “RO” filter assembly requires a drain line connection to be installed, which removes rejected water to the sewer . The drain saddle connects the drain line from the dispenser to your drain pipe .

  • Page 9: Flush The Filters

    4 . Flush the Filters Follow this procedure each time you replace your filters . IMPORTANT: Ensure water supply is off before you begin . IMPORTANT: Flush ONLY the sediment, pre carbon, and post carbon filters . The reverse osmosis (RO) filter should not be flushed . Connect a filter (D) to the filter housing (C) by twisting the filter (D) clockwise .

  • Page 10: Install The Filters And Complete The Installation

    5 . Install the Filters and Complete the Installation After flushing, twist each filter (D) clockwise into the filter housings located inside the dispenser cabinet . The sediment filter goes on the left, followed by the carbon, RO, and post carbon filter .

  • Page 11: Operation

    Operation IMPORTANT: This unit has been tested and sanitized prior to packing and shipping . During transit, dust and odors can accumulate in the tank and lines . Dispense and dispose at least one liter of water prior to drinking any water . Turn the Dispenser On/Off IMPORTANT: Before activating heating and cooling switches, ensure water has filled the tanks inside the...

  • Page 12: Set The Hot Water Temperature Level

    Set the Hot Water Temperature Level You can select from 3 different hot water dispensing temperature levels: H1 (hot), H2 (hotter), and H3 (hottest) . Temperature Level Dispensing Temperature Range 178°F to 184°F 184°F to 190°F 190°F to 196°F NOTE: The default temperature dispensing level for hot water is H3 (hottest) .

  • Page 13: Troubleshooting

    Troubleshooting Problem Solution • It takes up to one hour after setup to dispense cold water . • Make sure the power cord is properly connected to a working outlet . The cold water is not • Make sure the back of the dispenser is at least 20 cm from a wall and there is free airflow on all 20 cm sides of the dispenser .

  • Page 14: Filter Replacement Schedule

    Filter Replacement Schedule Filter Type Model No . Replacement Schedule Function Performs coarse filtration of inlet water, Sediment NFMPP5M 6-12 months or 950 gallons removing sand, rust, dirt, and other suspended solids . Removes chlorine, and other unpleasant Pre Carbon NFMGAC 6-12 months or 950 gallons tastes and odors .

  • Page 15: Warranty

    Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship .
  • Page 16 Contact Us Call: +1 844-257-4103 ©2023 Brio Water Technology, Inc.
