BRIO CLPOU720UVRO4X Setup Manual

Point of use water dispenser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Point of Use
Water Dispenser
Setup Manual
Model No.: CLPOU720UVRO4X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLPOU720UVRO4X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRIO CLPOU720UVRO4X

Summary of Contents for BRIO CLPOU720UVRO4X

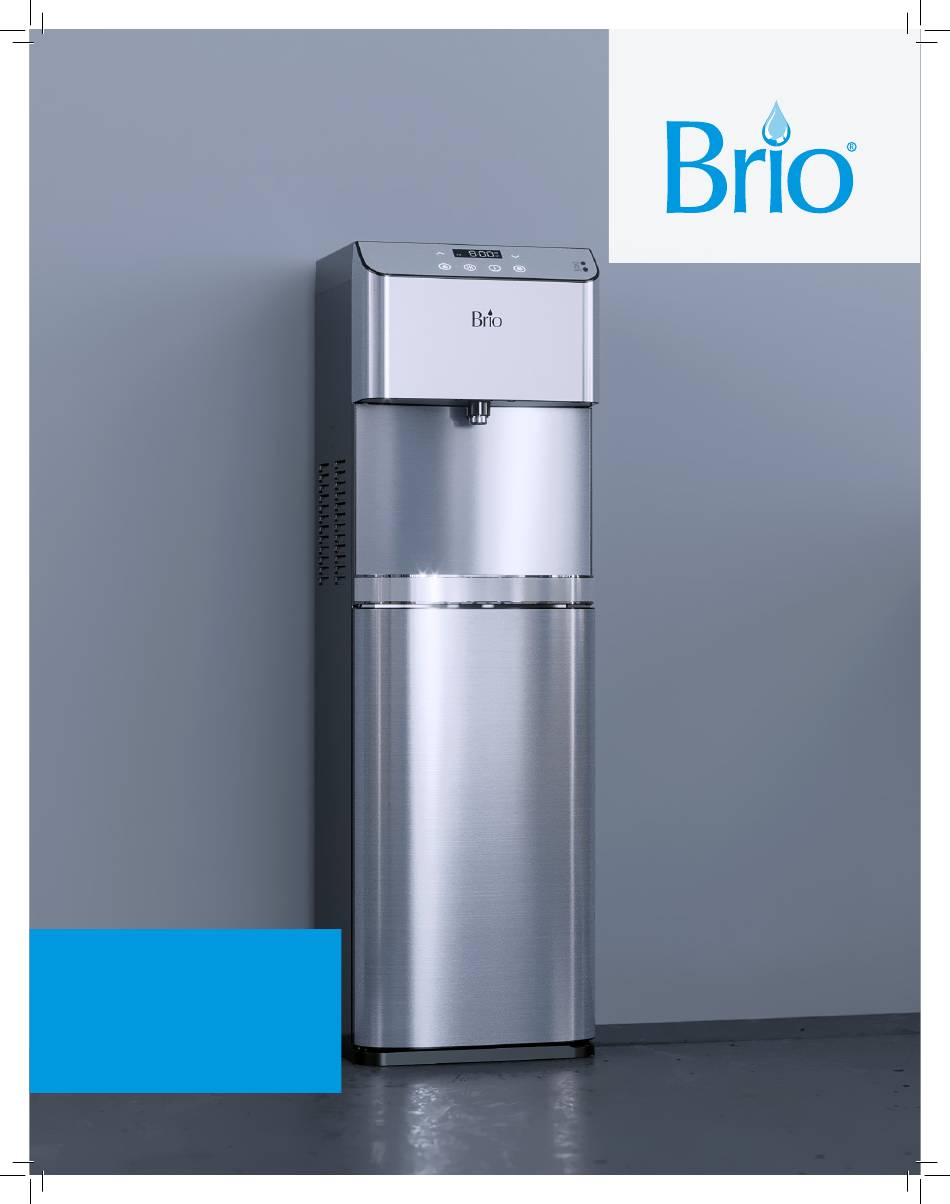

  • Page 1 Point of Use Water Dispenser Setup Manual Model No.: CLPOU720UVRO4X...

  • Page 2: Table Of Contents

    Table of Contents Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Intended Use .

  • Page 3: Safety Information

    Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser. WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal injury.

  • Page 4: Product Features

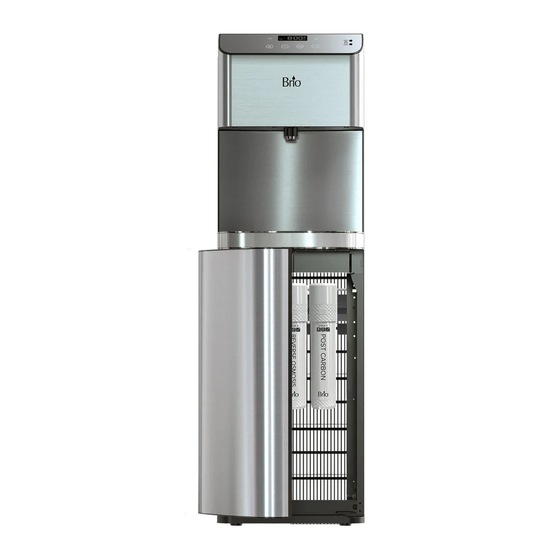

    Product Features Part Description Part Description Touch panel display RO pump Water tap Night Light switch Drip tray Cold water switch Filter cabinet Hot water switch Sediment filter Condenser Carbon block filter Drain outlet Reverse osmosis (RO) filter RO water inlet Post carbon filter Water outlet Product Dimensions...

  • Page 5: Touch Panel Description

    Touch Panel Description Up arrow button – Press to set the time on the clock and increase temperature settings. PCB indicator – Indicates the PP+C1+C2 filter lifetime. RO indicator – Indicates the RO filter lifetime. 1 Second Clock/Temperature display – Shows the time and water temperature setting when setting the temperature of the hot or cold water.

  • Page 6: Installation

    Installation 1 . Determine Installation Location Place the dispenser upright. Locate the dispenser on a hard and level surface in a cool, shaded location near a grounded wall outlet. NOTE: Do NOT plug in the power cord until the entire installation section is completed.

  • Page 7: Make The Reverse Osmosis Waste Connections

    Gently tug on the tube (B) to ensure a secure connection with the feed water adapter (E). 3 . Make the Reverse Osmosis Waste Connections The RO filter assembly requires a drain line connection to be installed, which removes rejected water to the sewer. The drain saddle connects the drain line from the dispenser to your drain pipe.

  • Page 8: Flush The Filters

    4 . Flush the Filters IMPORTANT: Follow this procedure every time you replace your filters. IMPORTANT: Ensure the water supply is off before you begin. Connect a filter (D) to the filter housing (C) by twisting the filter (D) clockwise. Connect the tip of the shut-off valve tube (B) to the left side of the filter housing (C).

  • Page 9: Install The Filters And Complete The Installation

    5 . Install the Filters and Complete the Installation After flushing, twist each filter (D) clockwise into the filter housings located inside the dispenser cabinet. The sediment filter goes on the left, followed by the carbon block, RO, and post carbon filter. Remove the safety plug from the water inlet hole on the back of the dispenser by pushing in the inlet hole...

  • Page 10: Operation

    Operation IMPORTANT: This unit has been tested and sanitized prior to packing and shipping. During transit, dust and odors can accumulate in the tank and lines. Dispense and dispose of at least one quart of water prior to drinking any water. Turn the Dispenser On/Off IMPORTANT: Before you activate the hot and cold switches, ensure water has filled the tanks inside the...

  • Page 11: Dispense Hot Water And Activate Child Safety Feature

    Dispense Hot Water and Activate Child Safety Feature CAUTION: This unit dispenses water at temperatures that can cause severe burns. Avoid direct contact with hot water. Keep children and pets away from the unit while dispensing. Never allow children to dispense hot water without proper and direct supervision.

  • Page 12: Cleaning And Maintenance

    Cleaning and Maintenance This dispenser runs on a continuous UV cleaning cycle. It works for 40 minutes (UV indicator light is blinking), turns off for 140 minutes, and then cycles back on again as long as the dispenser is plugged in and cold and hot water switches are turned on.

  • Page 13: Filter Replacement Schedule

    Filter Replacement Schedule Filter Type Replacement Schedule Function Performs a coarse filtration of original Sediment 6 months or 950 gallons water. Removes mud, sand, iron, rust, suspensions and impurities. Reduces chlorine taste and odor, lead, Carbon Block 6 months or 950 gallons and cysts.

  • Page 14: Warranty

    Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship.
  • Page 16 Contact Us Call: +1 844-257-4103 ©2020 DTWUSA...
